R911276696

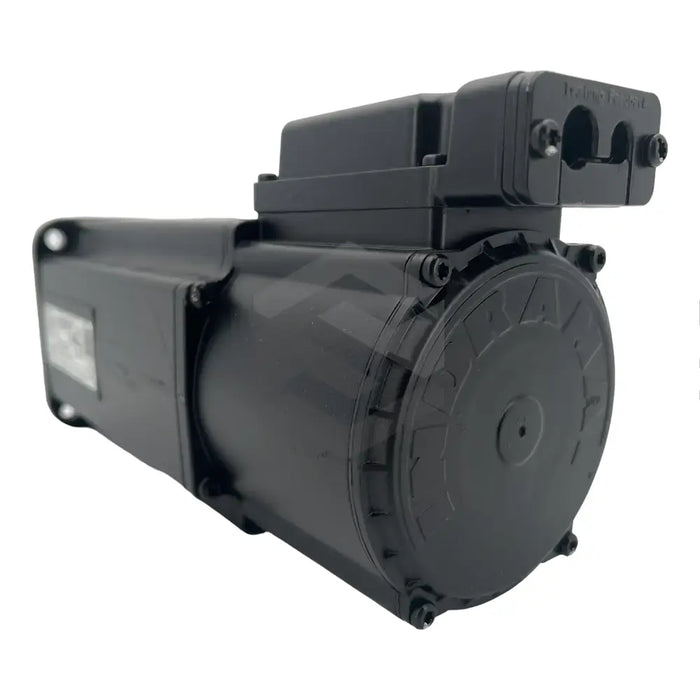

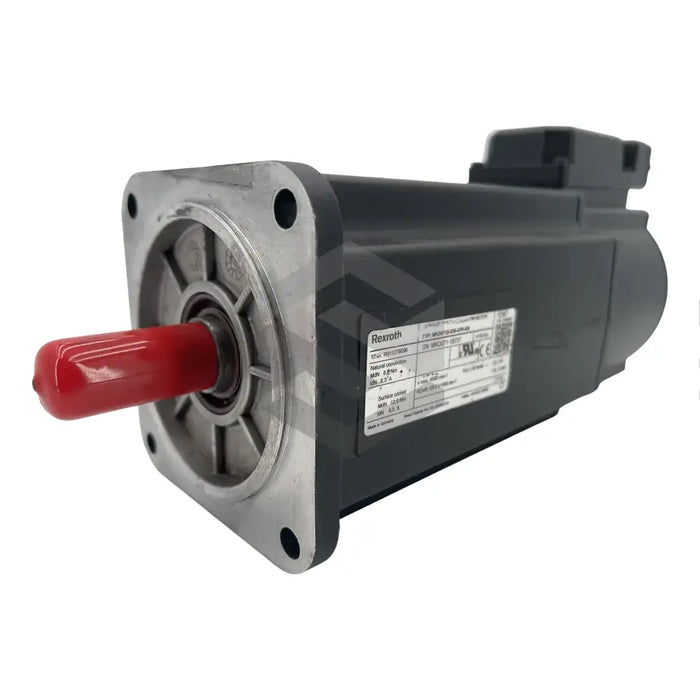

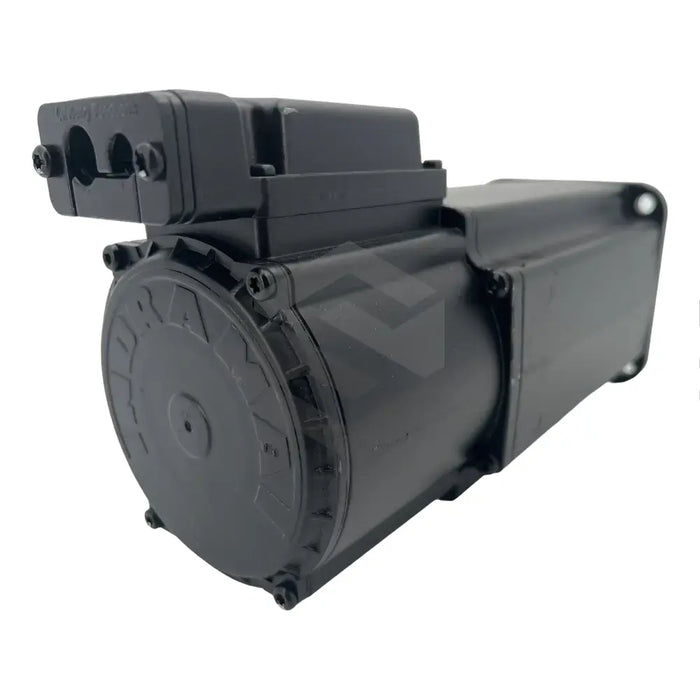

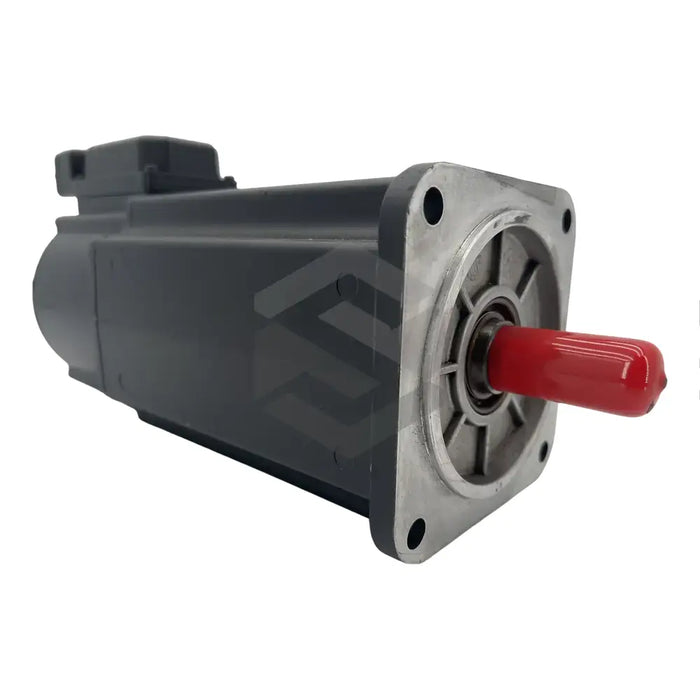

The R911276696 (MKD071B-035-GP0-KN) is a Digital AC Synchronous Motor, part of the MKD Series by Bosch Rexroth Indramat. This motor, renowned for its durability and minimal maintenance requirements, has a plain shaft integrated with a shaft sealing ring, resistant to damage from oils and other harsh substances. The frame size is 071 with a motor length of 8.0 Nm. Further, it is furnished with a resolver feedback system, enhancing its decision-making and command execution efficiencies. The terminal box serves as the power connection point. Noteworthy to mention, the motor does not come with a holding brake or any special designs.
This workhorse operates in three modes - Natural 60K, 100K, and Surface 60/100K. At Natural 60K mode, it runs with a rated torque of 5.2 Nm, current at 2.9 A, 1.2 kW power, and a voltage of 333 V. In the Natural 100K mode, it delivers a torque of 7.5 Nm, current of 4.4 A, 2.5 kW power, and 349 V voltage. When operating in Surface 60K/100K mode, It provides a torque of 10.2 Nm, 5.7 A current, 3.4 kW power, and 366 V voltage. In all modes, R911276696 (MKD071B-035-GP0-KN) attains a maximum speed of 4500 RPM and a rated speed of 2500 RPM at 167 Hz frequency.
