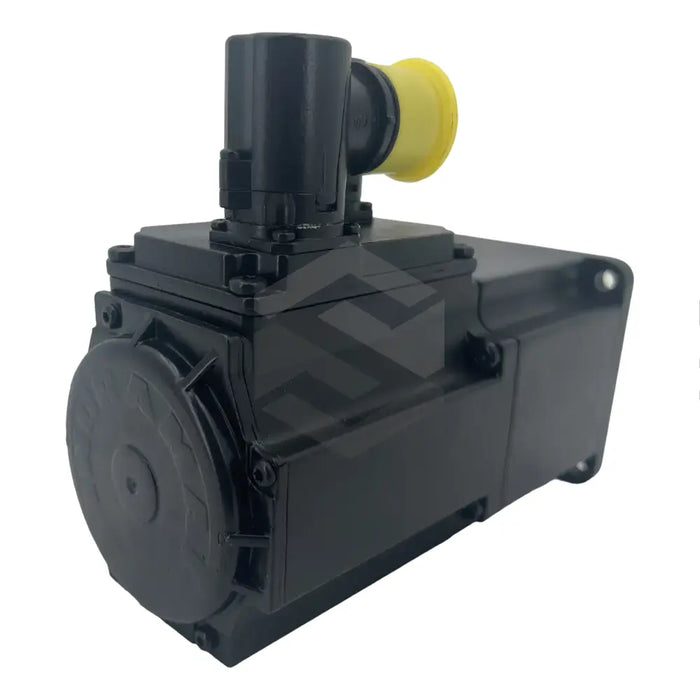

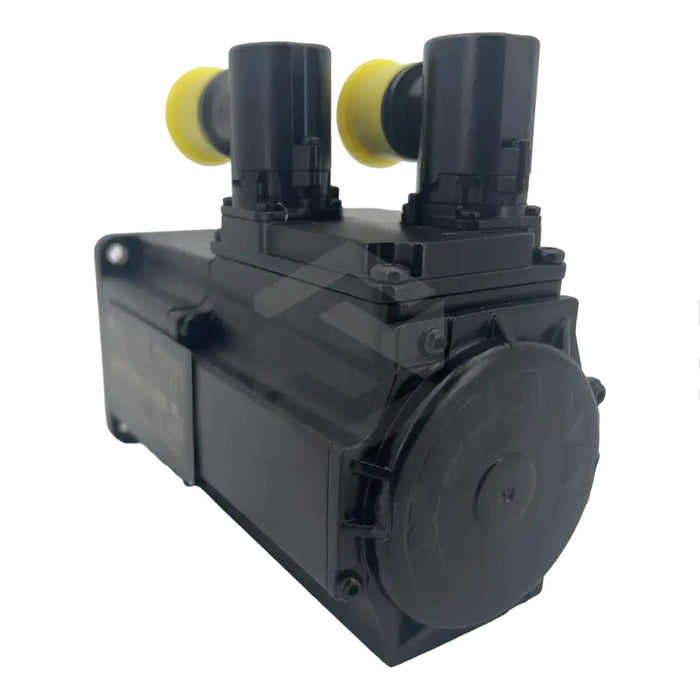

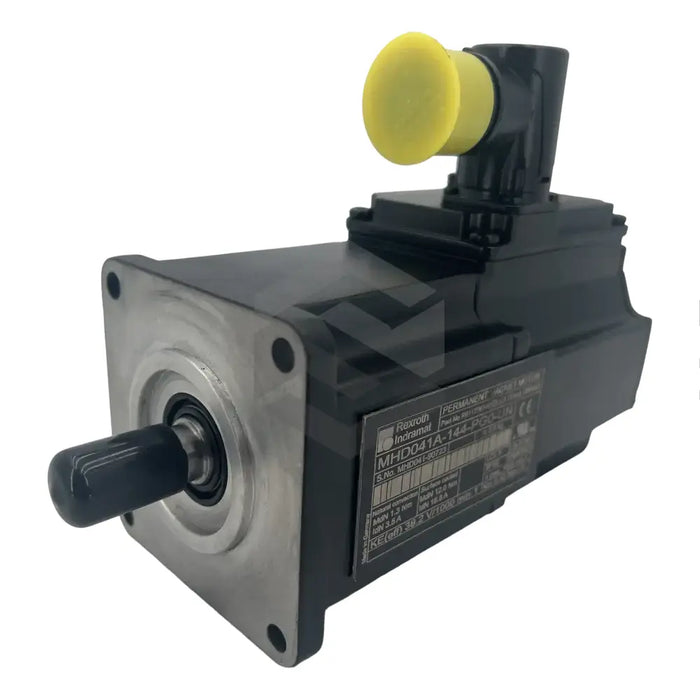

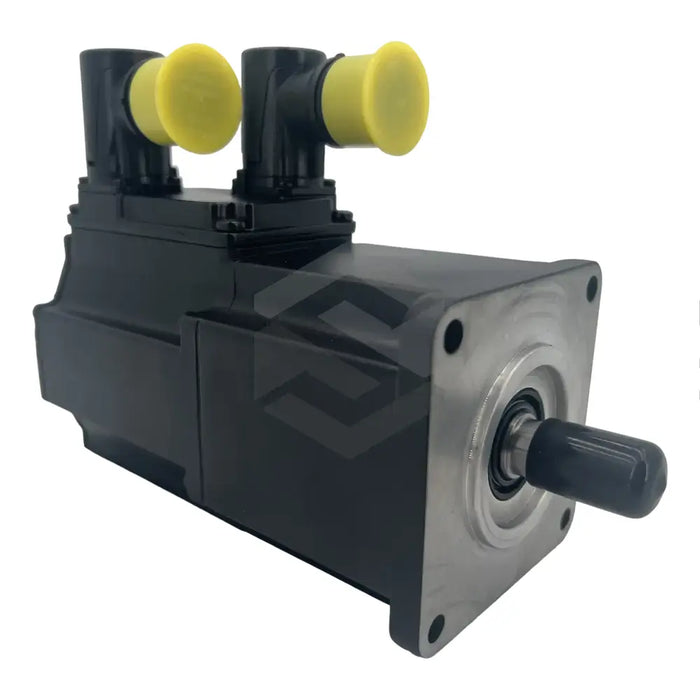

The product, R911276749 (MHD041A-144-PG0-UN), belongs to Bosch Rexroth Indramat's MHD motor series. The motor is known for its high efficiency, precision control, and low maintenance needs. Weighing 2.9kg and with a frame size of 82mm-flange, it possesses a centering diameter of 50mm. Designated as a size "041" and length category "A", this servo motor's standstill continuous torque sits at 1.35Nm.
Notably, the R911276749 (MHD041A-144-PG0-UN) motor has a characteristic speed of 7,000rpm and a rated speed of 4,000rpm. It operates optimally at an ambient temperature of 40 degrees Celsius and can be stored and transported within a temperature range of -20 to 80 degrees Celsius. With specifications including neither the holding brakes nor fan unit, it has a mass of 2.9Kg. This unique motor uses digital servo feedback, which is integrated with a multi-turn absolute encoder and is ideally suited for applications requiring precise long-range positioning. It also possesses a plain shaft with no holding brake. The motor's moment of inertia stands at 0.88 x 10-4 kgm2, and it can achieve a maximum speed of 7,500rpm, a winding inductance of 13.5mH, and a peak current of 15.8A, all while offering a theoretical maximum torque of 5.6Nm.
