R911276830

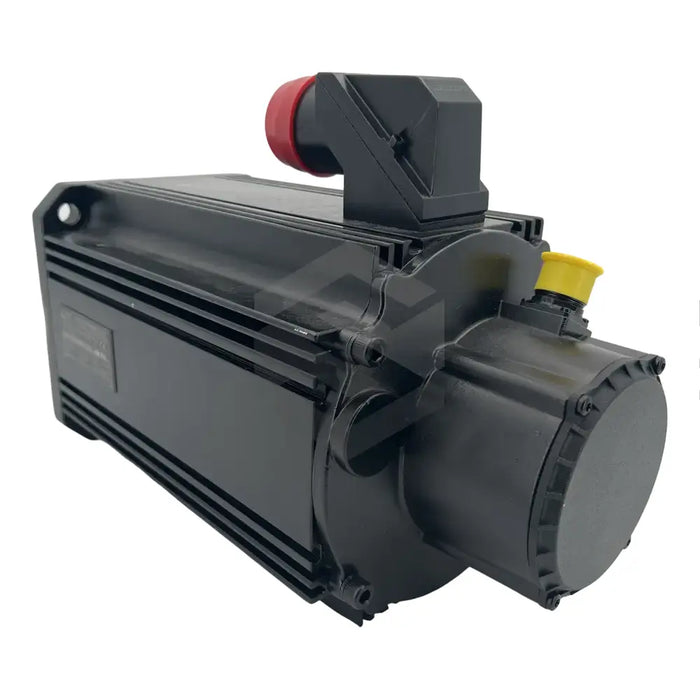

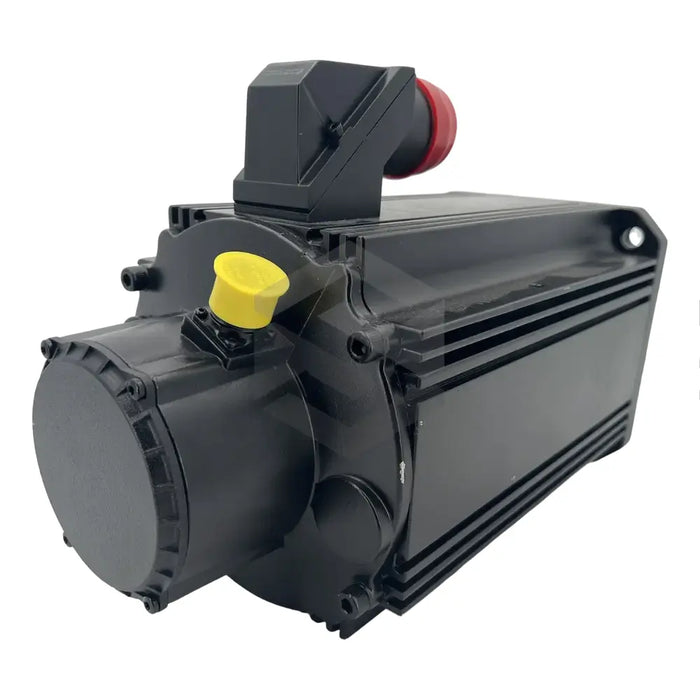

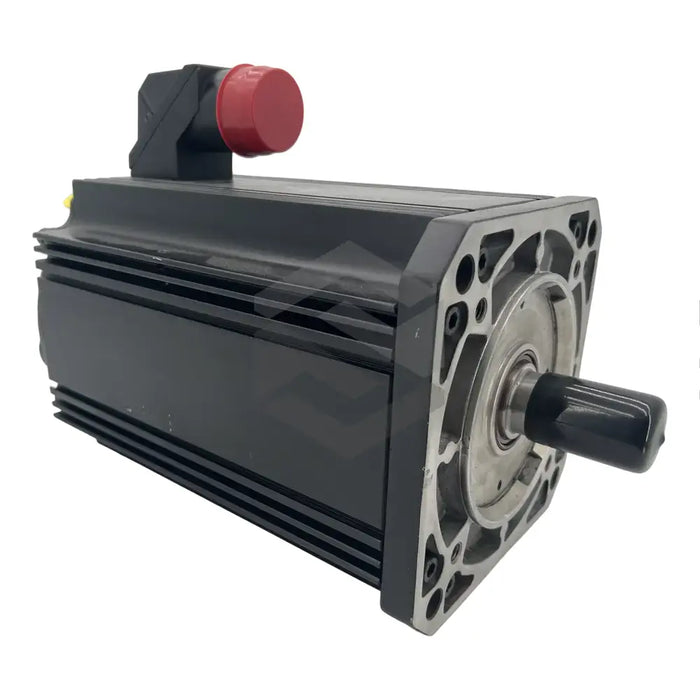

The R911276830 (MHD112B-024-NG1-AN) is a top-tier MHD Synchronous motor fabricated by Bosch Rexroth Indramat, renowned for their high-performance motors used in automation tasks. The motor is a cost-effective solution for automation systems in multiple sectors including machine tools and handling and automation. Its notable features include a frame size of 112, a 192mm flange size, and a 130mm centering diameter. It delivers a continuous torque of 28.0 Nm at standstill with a winding code of 024. The motor maintains optimal speed control and positioning via integrated digital servo feedback.
This reliable motor offers various benefits including minimal maintenance due to its brushless design and suitability for adverse conditions given its IP 65 protection degree. Easy cabling and the ability to install in any direction enhances its user-friendliness. The low inertia mass design is facilitated by the use of special magnet materials, and the motor supports electronic communication. Other specifications include a shaft, shaft sealing ring, bearing, and rotor with permanent magnets. Additionally, the R911276830 (MHD112B-024-NG1-AN) comes with natural cooling to prevent overheating. Key technical specifications include a peak current of 98.5 Amps, a rated current of 4.9 Amps, a maximum speed of 4,000 rpm, and a rated voltage of 461V. Various compatible accessories such as sealing air connectors and worm gears are available for use with this motor.
