R911277192

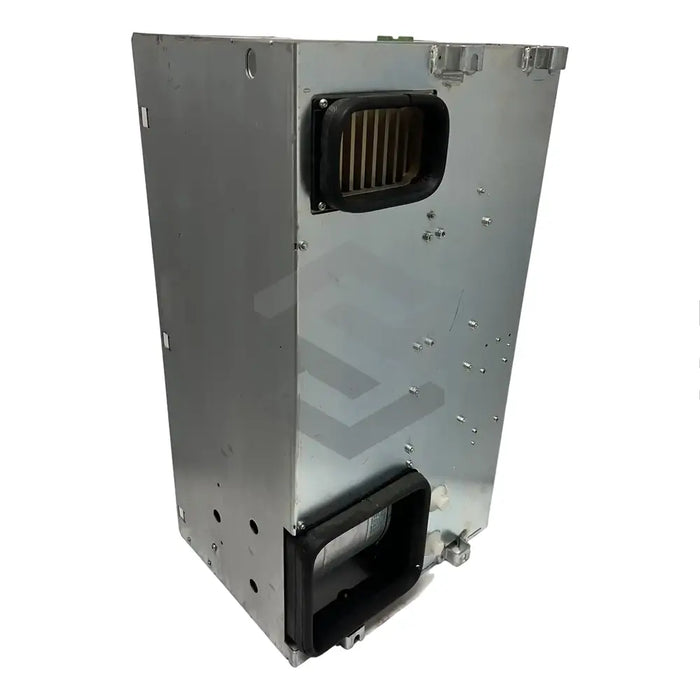

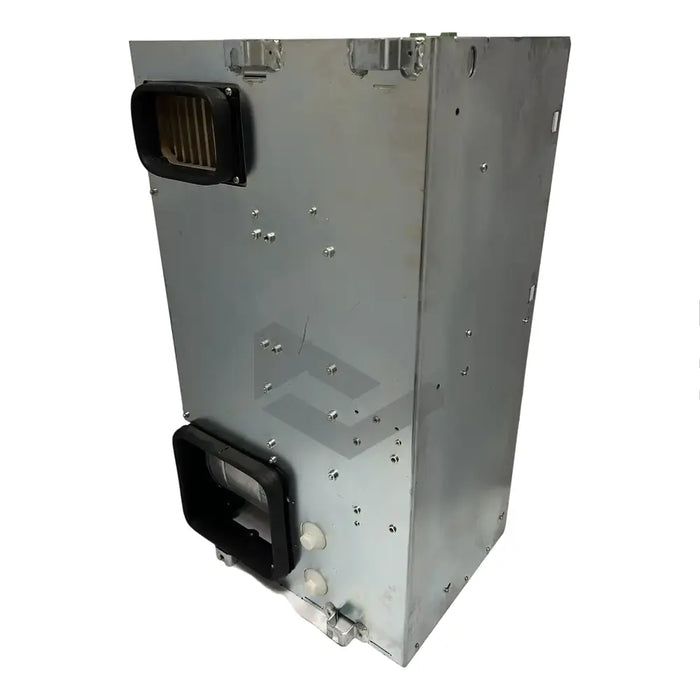

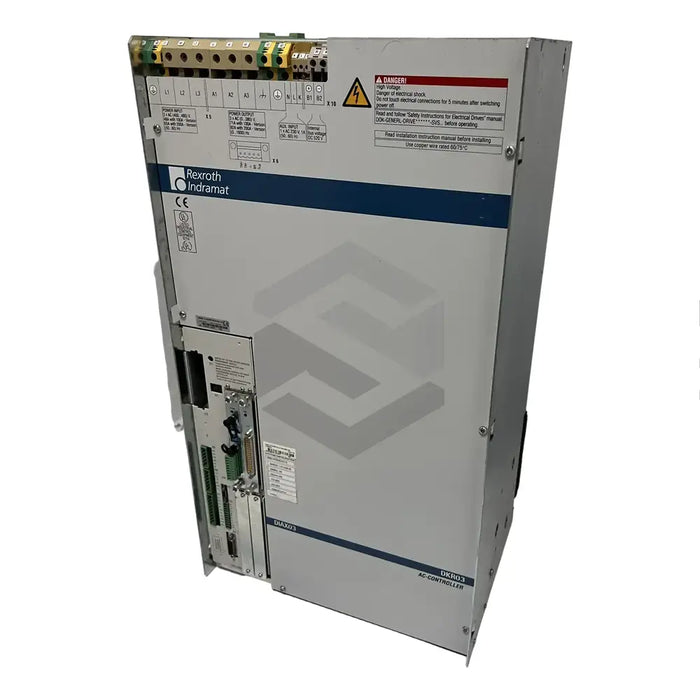

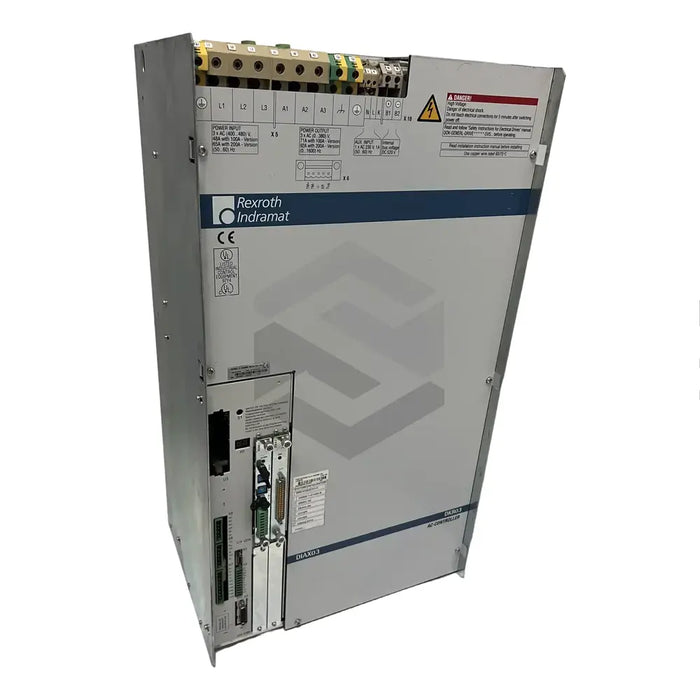

The R911277192 (DKR03.1-W200B-BE23-01-FW), developed by Bosch Rexroth Indramat, is a cutting-edge Main drive controller that offers advanced digital speed control to particular servo motors within industrial machinery. Beyond regulating the speed of these servo motors, the R911277192 (DKR03.1-W200B-BE23-01-FW) also adjusts their positioning based on the signals relayed from the command center. However, the drive controller is fashioned to work exclusively with three types of servo motors in industry settings; these are the 1MB frameless spindle motors, the 2AD or ADF a.c. Main spindle motors, and lastly, the LAF or LSF linear motors.
This controller's defining features include robust stiffness and a wide speed range, making it ideally suited for use in CNC machines, such as mills, plasma cutters, drills, lathes, and routers. The device can be adapted to specific needs using the customization components slotted into the U1 to U5 ports in its housing. A completely configured device should comprise a basic unit, addition plug-in cards, a software module, and a command interface card. Also, it operates at a rated power voltage between 3xAC 400 Volts to 3xAC 480 Volts, with a continuous current of 92 Amperes and a peak current capacity of 141 Amperes. With IP 20 per EN60529 / IEC529 protection class, the device weighs around 49 kilograms.
