R911277309

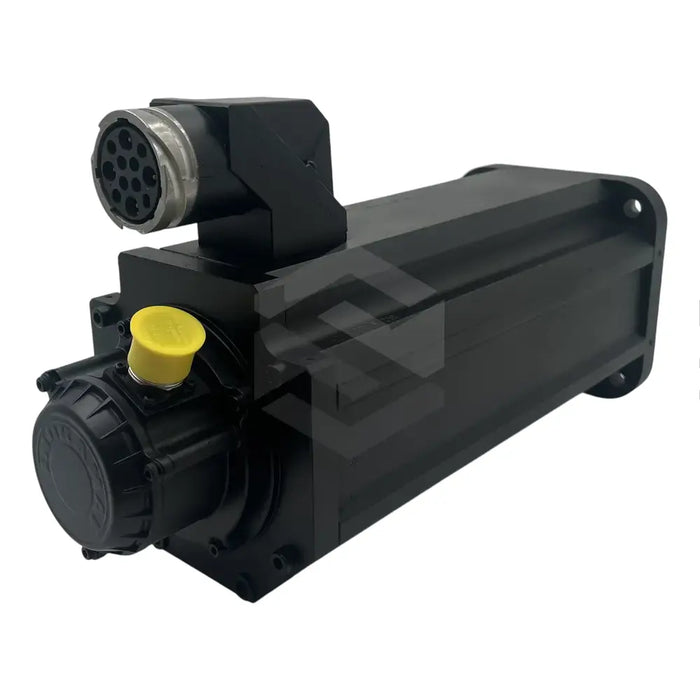

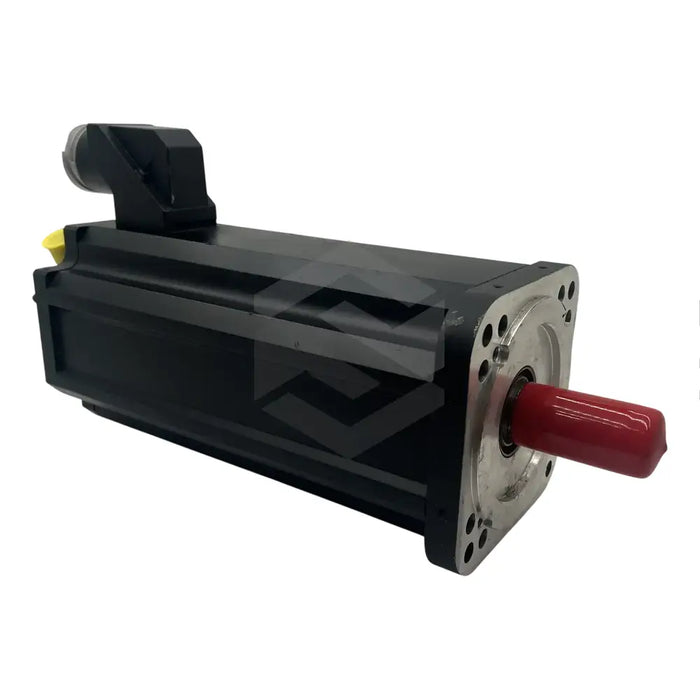

The Bosch Rexroth Indramat R911277309 (MHD093C-035-PG0-BN) is a state-of-the-art synchronous motor highly suitable for various industrial automation applications. Manufactured with superior quality materials, it ensures an extended service life and high operational reliability. The motor leverages high-grade permanent magnets, yielding a high energy density suitable for quick start-stop operations and generating substantial torque. The climate-resilient design allows safe storage in temperatures ranging between -20 °C and 80 °C.
This motor excels at over-temperatures of 60K and 100K and operates at a rated speed of 2000 rpm with a maximum speed of up to 6000 rpm. Weighing in at 14.5 kg, the R911277309 (MHD093C-035-PG0-BN) integrates F class insulation materials for excellent high-temperature resistance under extreme internal heat. The motor can deliver a theoretical maximum torque of 44 Nm and comprises four pole pairs. With a winding inductivity of 19.3 mH and a winding resistance of 2.95 ohms, this motor is an ideal fit for start-stop applications and performs optimally in environments with a temperature range of 0 °C to 40 °C.
