R911277786

Original price $15,338.00 - Original price $15,338.00
Original price
$15,338.00
$15,338.00 - $15,338.00
Current price $15,338.00
Available, Shipping Varies
Request a quote

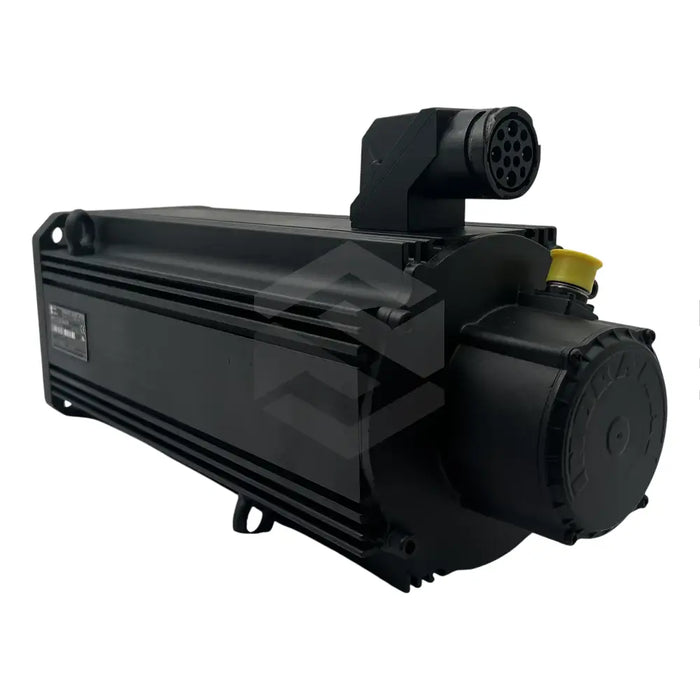

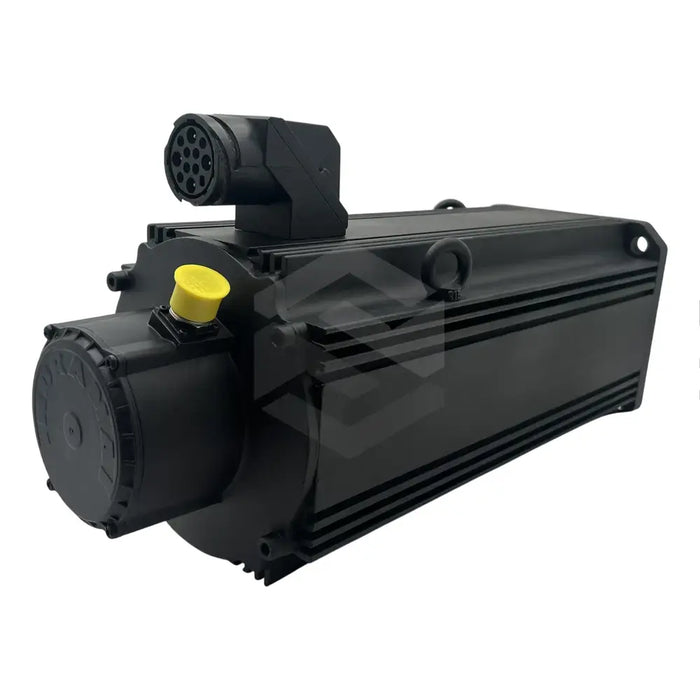

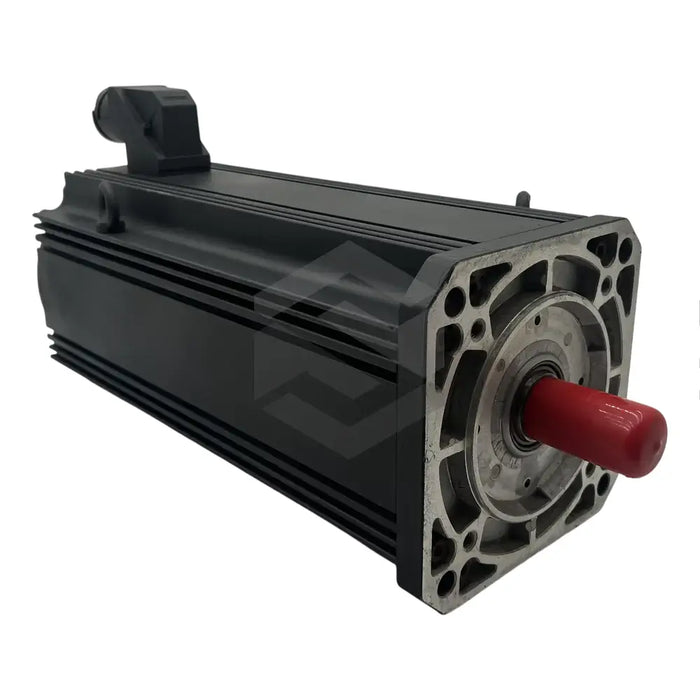

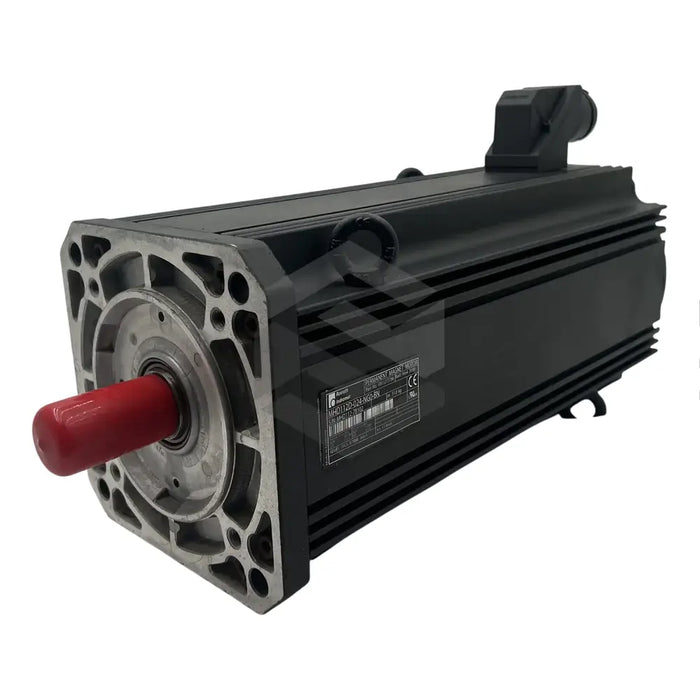

The R911277786 (MHD112D-024-NG0-BN), a product of Bosch Rexroth Indramat, belongs to the MHD series of industrial motors. This motor does not come with a standard holding brake, but optional brakes rated at 22 Nm, 32 Nm, or 70 Nm can be ordered for the MHD112D motors. The motor needs a drive controller, which supplies electrical power and controls parameters such as speed and position. Customizable during order, the power connector is located on side B of the housing. The R911277786 (MHD112D-024-NG0-BN) motor has a plain shaft with a seal that safeguards the bearings from contaminants such as dust and moisture and prevents oil leakage. The R911277786 (MHD112D-024-NG0-BN) motor measures 526 millimeters in length, with a flange size of 192 millimeters, and a centering diameter of 130 millimeters. The shaft diameter is 32 millimeters while each flange hole measures 14 millimeters in diameter. Integrated digital servo feedback is a key feature of this motor. Its specially suited for natural convection or surface cooling housing, ideal for low motor load and high motor load applications respectively. The motor operates efficiently between 0 to 40 degrees Celsius, can be stored safely between -20 to 80 degrees Celsius, and can function up to an altitude of 1000 meters. Its motor housing boasts an IP65 protection degree, and it is earmarked with class F insulation.
30 Day Warranty
Technical Specifications
  • Protection Degree: IP65
  • Manufacturer: Bosch Rexroth Indramat
  • Motor Flange Hole Diameter: 14 millimeters
  • Product Series: MHD Series
  • Working Altitude Range: 0 to 1000 meters
