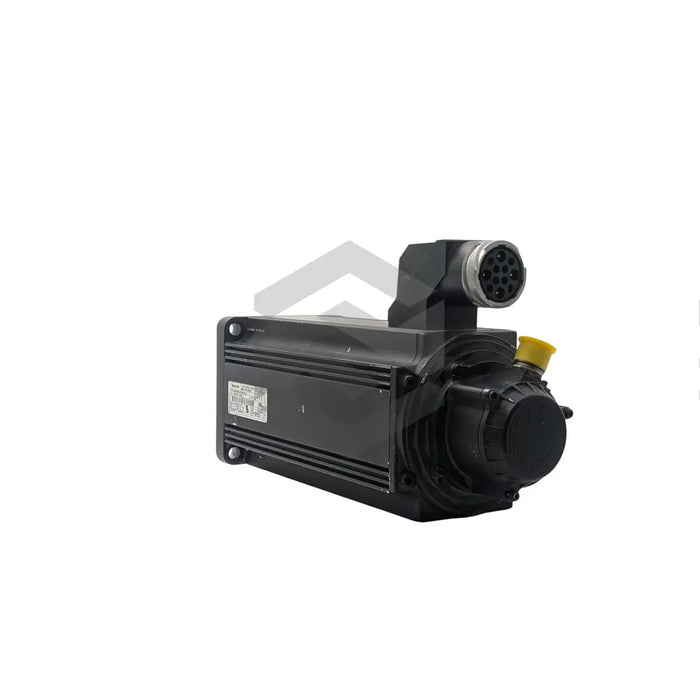

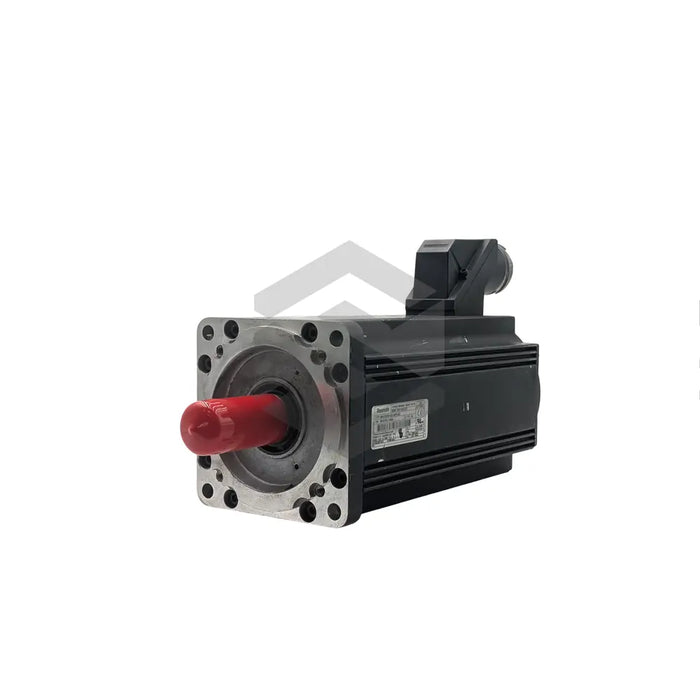

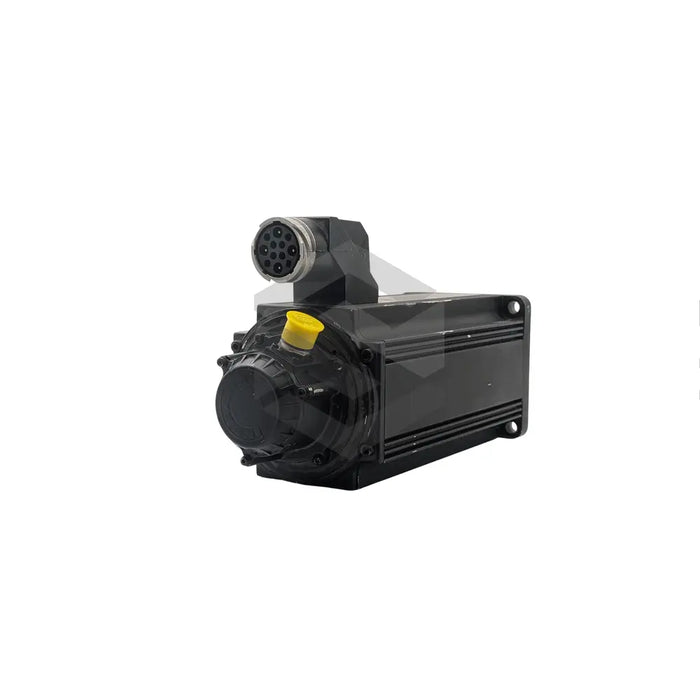

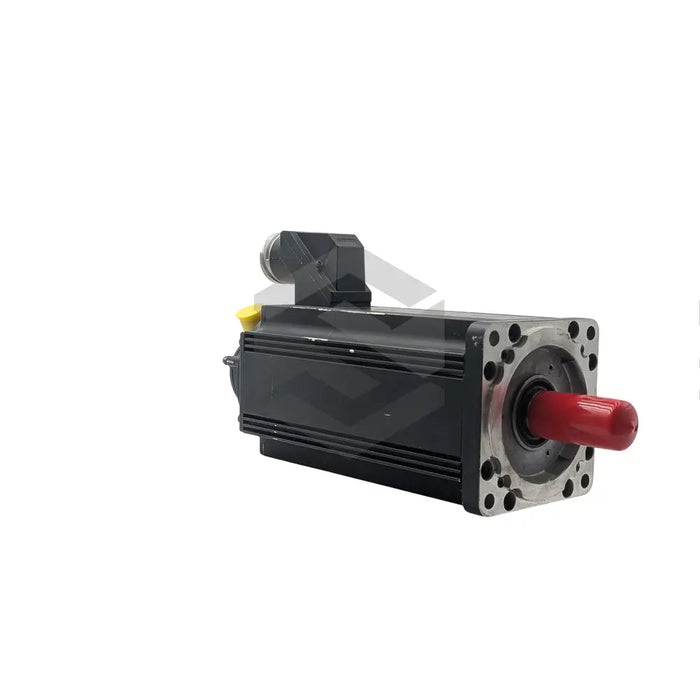

R911278233
The R911278233 (MHD093B-035-NP0-BN), a high-performance servo motor, is crafted by Bosch Rexroth Indramat. This motor is strictly designed for operation within ambient conditions and under assembly, mounting, and installation preconditions outlined by Bosch. Misuse of the motor and disregard for safety warnings may lead to damage and consequent non-liability on the manufacturer's part. Exclusive use of Bosch-approved spare parts and accessories is strongly recommended. Designed for industrial machinery, the motor should only be energized once it accords with respective national regulations and safety requirements. The suggested ambient conditions for operation feature temperatures ranging from 0 to 40 degrees Celsius and up to 1000 meters in altitude.
The power connector of the R911278233 (MHD093B-035-NP0-BN) lies on side B of the unit which is designed for both convection and liquid cooling. Additionally, it incorporates a shaft with a key and sealing ring and supports digital servo feedback. Its electric properties include, but are not limited to 17.5 Nm continuous and 66 Nm theoretical maximum torque, 0.00255 kg m2 rotor moment of inertia, and 4500 RPM maximum speed. The motor weighs 19kgs and its environmental protection rating and insulation class are IP65 and F respectively. Furthermore, its housing varnish is a prime coat in black.
