R911278234
Original price
$14,452.35
-
Original price
$21,242.10
Original price
$21,242.10
$14,452.35
-
$21,242.10
Current price
$21,242.10

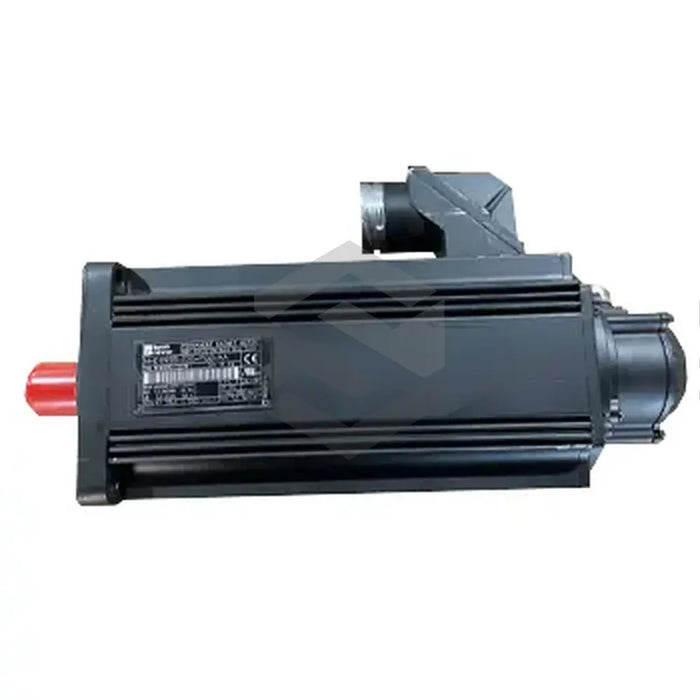

Produced by Bosch Rexroth Indramat, the R911278234 (MHD093C-035-NP1-BN) is a highly efficient, remarkably precise servo motor. This electrical device is outfitted with a power connector which includes connections for a temperature sensor, holding brake, and an encoder connection. The unique design includes separate plug connections for optimal performance in a wide range of industrial and commercial applications, which notably include robotics, metalwork fabrication, printing and paper-processing machinery, and conveyor belt systems. To ensure safety and performance, trained technical personnel should be responsible for all operations involving the assembly, maintenance, and use of this servo motor.
The R911278234 (MHD093C-035-NP1-BN)'s specifications are impressive, featuring 360 volts of rated voltage and 21.2 amperes of rated current. With characteristic, rated, and maximum speeds clocking in at 3000, 2500, and 4500 min-1 respectively, the motor also offers a rated frequency of 167 Hertz and delivers a rated torque of 37.2 Nm. Further features include a digital servo feedback (HSF) and a plain shaft with a shaft keyway. Enclosed in a liquid-cooled housing, this robust motor can operate between 0 – 40°C. Weighing in at 23.5 kilograms, it also carries an IP65 rating for substantial dust and water resistance and has an insulation class F according to DIN VDE 0530 Part 1.
