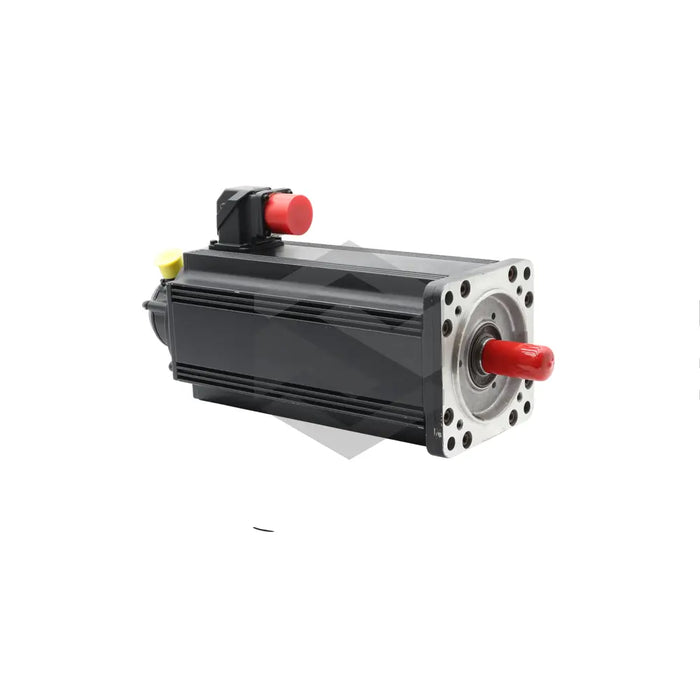

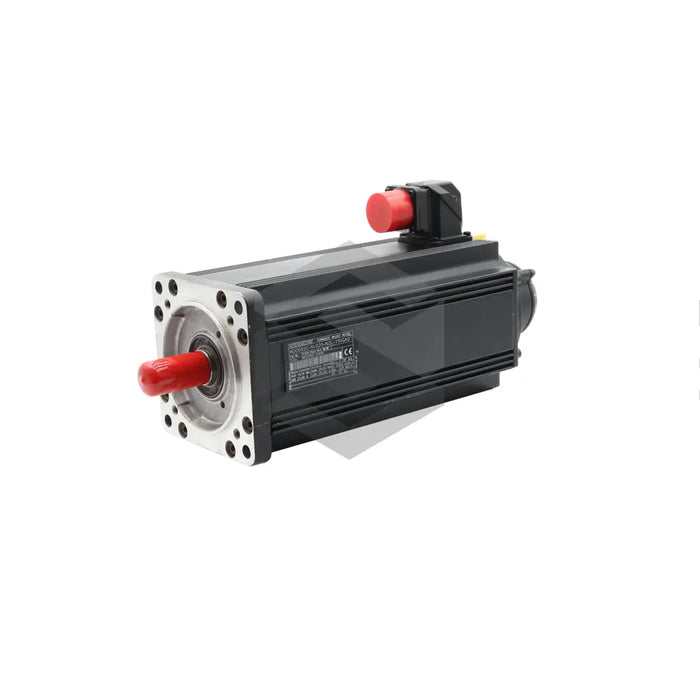

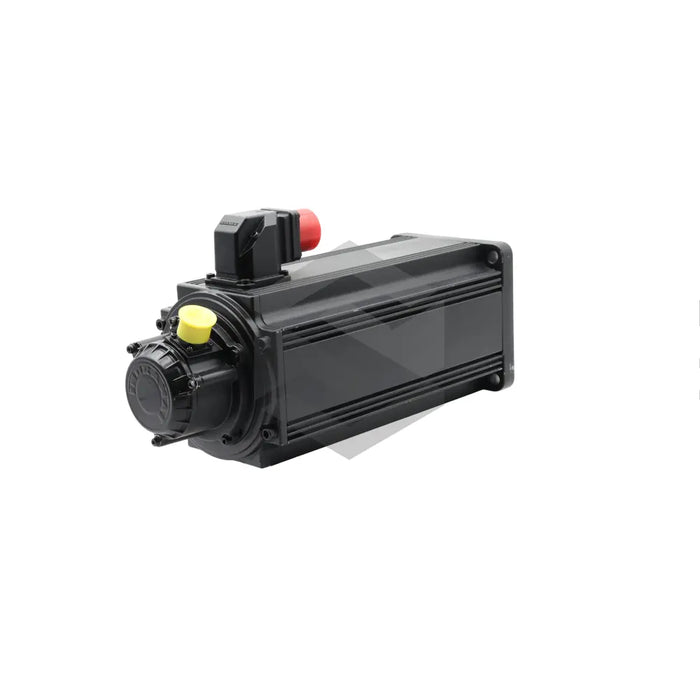

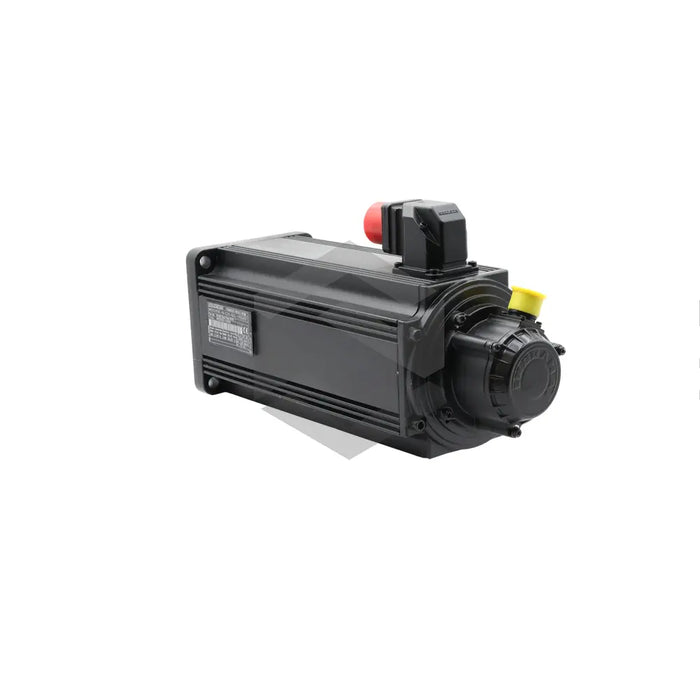

R911278595
Produced by the globally renowned firm Bosch Rexroth Indramat, the R911278595 (MDD093C-N-030-N2L-130PB1) is a key component in the realm of servo motors, drive controllers, assembly-line products, brake choppers, and frequency converters. It is designed to deliver superior performance and productivity by minimizing the risk of liquid intrusion with its robust keyways shaft and shaft sealing. Part of the esteemed Rexroth Indramat digital AC servo motor series, it employs digital servo feedback for efficient communication, precise speed regulation, and rotor positioning.
The R911278595 (MDD093C-N-030-N2L-130PB1) model is equipped with an 11Nm holding torque-blocking brake, which operates on a closed-circuit principle. It maintains consistent on/off switching sequences, thanks to the highly sophisticated digital drive controller. The model also features a power connector on side B, weighs 22 kilograms, and can generate a theoretical maximum torque of 60.6 Nm at a maximum power consumption of 145 amps. To avoid overheating, a temperature sensor is embedded in its windings. The motor's winding inductance stands at 2.7 mH with a maximum rotational speed of 3000 RPM. With superior heat transfer from the stator windings to the exterior of the motor housing, it provides improved semantics and a favourable torque inertia ratio, resulting in enhanced load performance.
