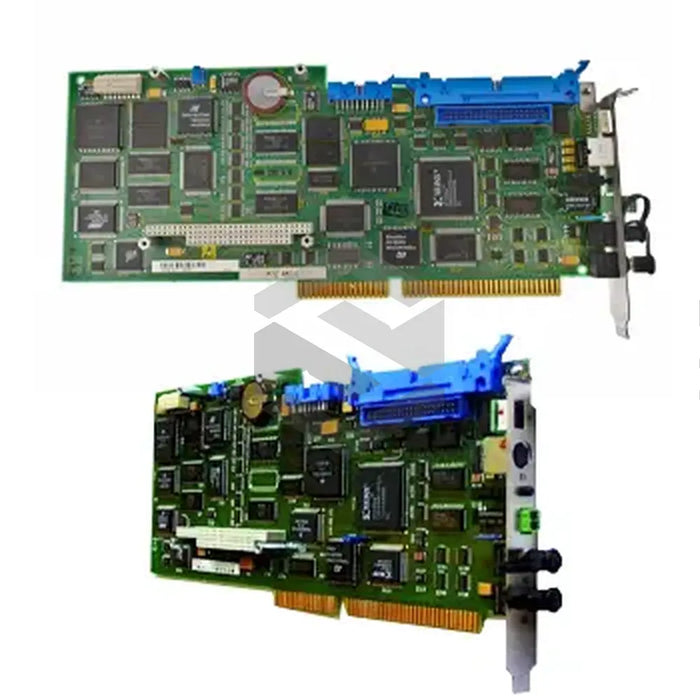

R911279071
The R911279071 (MTC-R02.1-M1-A2-A2-NN-FW), a product of Bosch Rexroth Indramat, is an integral part of the larger MTS200-R CNC controller. Designed to fit neatly in a switchgear cabinet, it boasts an IP 20 standard ingress protection and is compatible with RMB02.2 racks. Designed with an SPS module besides its own NC module, the R911279071 (MTC-R02.1-M1-A2-A2-NN-FW) facilitates the creation of an efficient machine tool controller. The communication between the two modules is handled by an internal local bus located on the adapter board. Its modular approach paired with three extra module slots allows for customization pertaining to unique tasks. Incorporation of additional modules such as PROFIBUS-DP master module, PROFBUS-DP slave module, serial interface modules, and the INTERBUS MASTER module is also feasible.
The base unit of the R911279071 (MTC-R02.1-M1-A2-A2-NN-FW) has a CNC processor and integrated axis processor, enabling connection to multiple drives. Each additional module slot (U1, U2, and U3) can accommodate an axis processor, permitting connection to 8 extra drives. Consequently, in its maximum configuration, this module can connect to 32 drives. The module measures 83.7 mm x 192 mm x 156 mm (W x H x D), consumes a maximum power of 19.6 W, and requires 700 mA of current at its peak. Connecting several SPS controllers with the CNC controller is also made feasible via RS-232/RS-485 programming interfaces.
