R911279155

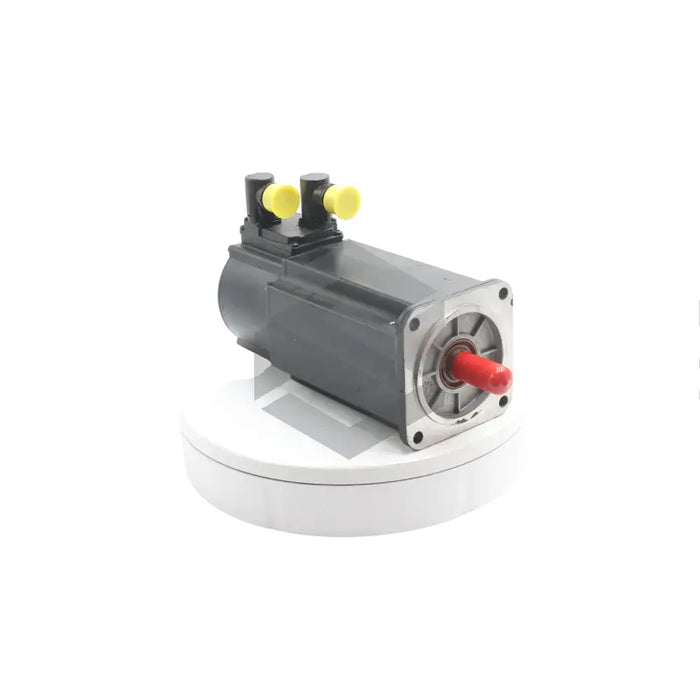

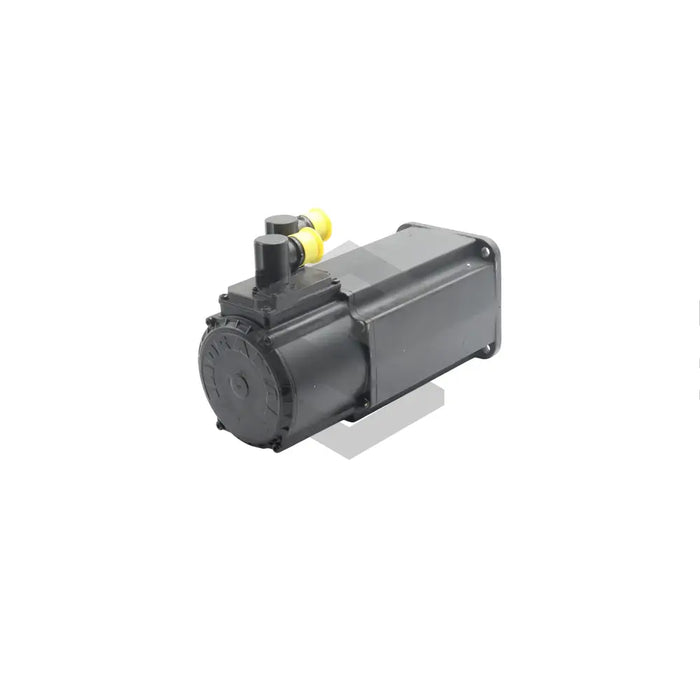

The R911279155 (MHD071B-061-NP1-UN), a product of renowned manufacturer Bosch Rexroth Indramat, is a component of the MHD series and is outfitted with a Digital Motor Encoder to optimize servo feedback. The motor, framed in 115mm flange size with a 95mm centering diameter, features a factory-assigned 61 type winding. The frame length measures at 8.0 Nm and incorporates a DIN 6885-1 key-way fitted output shaft complete with a shaft-sealing ring for enhanced performance.
These MHD Synchronous Motors are outfitted with permanent magnets and cutting-edge electronics ensuring efficient commutation. This versatile and cost-effective offering from Bosch Rexroth Indramat, a global leader in delivering automation solutions, features intelligent digital drive controllers making it ideal for various applications including machine tools, packaging machines, and the printing and paper industries. The motor is highly dependable owing to its long-lasting self-lubricated bearings, brushless and completely sealed design, and superior data performance. The R911279155 (MHD071B-061-NP1-UN) boasts an IP 65 protection rating, natural convection housing design, real-time temperature monitoring, and wide-ranging peak torque characteristics to ensure optimal operation, reliability, and frequent start-stop operations.
