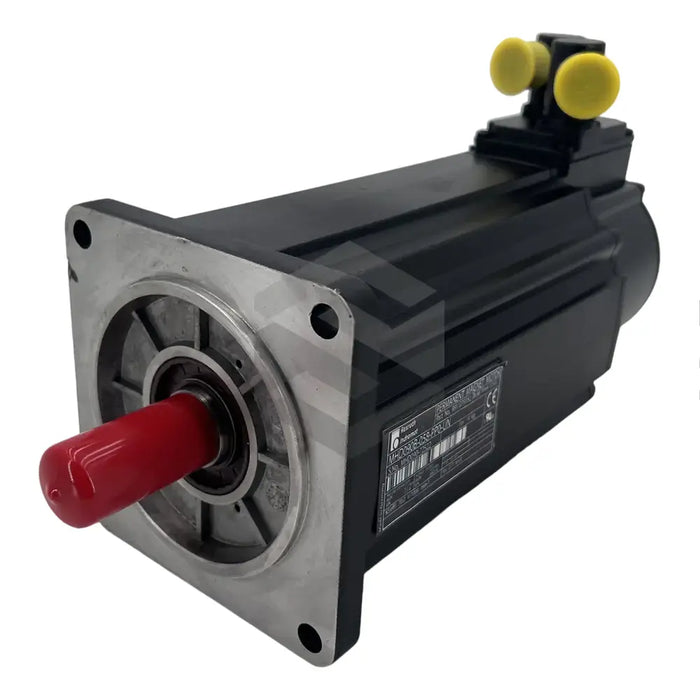

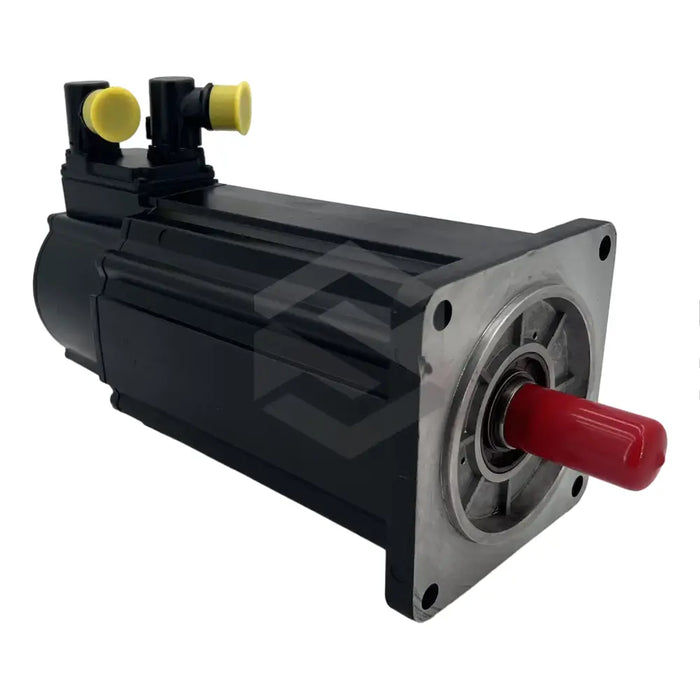

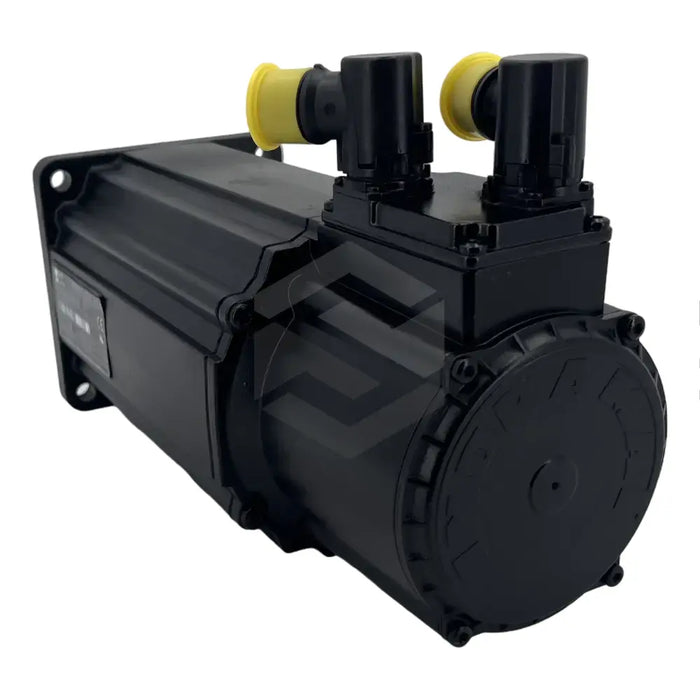

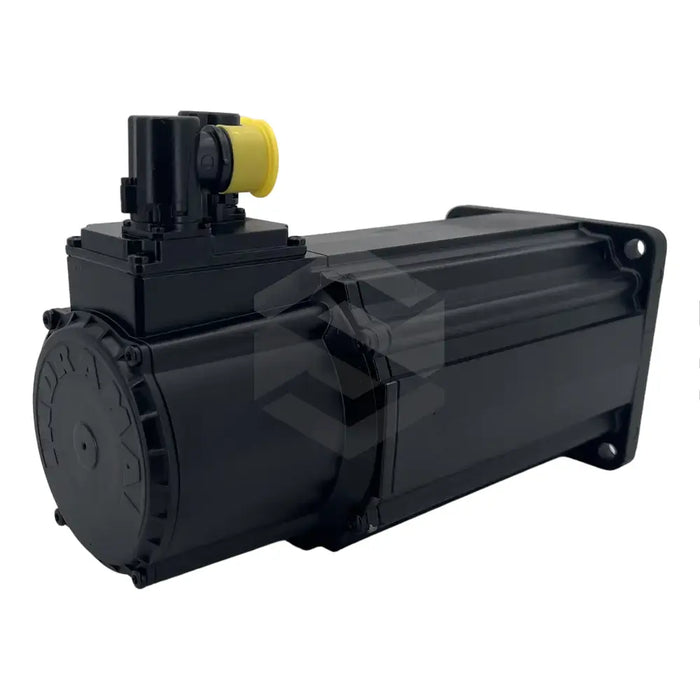

R911279162
The Bosch Rexroth MHD Synchronous Motor series is a well-known range, popular for its innovative and high-quality motion control solutions. The R911279162 (MHD090B-058-PP0-UN) is a medium-torque variant within this product line, catering to industrial applications such as top-tier machining and robotics processes. Notable for its reliable German engineering, this motor can be either naturally cooled or surface cooled, depending on your requirements.
This motor can achieve a rated torque of 4.2Nm and 8.9Nm, and a rated power of 2.1kW and 4.9kW for naturally cooled versions (60K and 100K), while the surface cooled version delivers a rated torque of 13.4Nm with power output of 7.0kW. It operates at a furnished speed of 4,000 RPM and a rated frequency at 267Hz. The four-pole core construction ensures efficient power delivery with better control. Among the distinguishing features are its lightweight design, weighing only 14 kg, and the inclusion of a multiturn absolute encoder, capable of recording shaft revolutions and positioning. The motor's driveshaft is designed with a keyway as per the DIN 6885-1 standard.
