R911279163

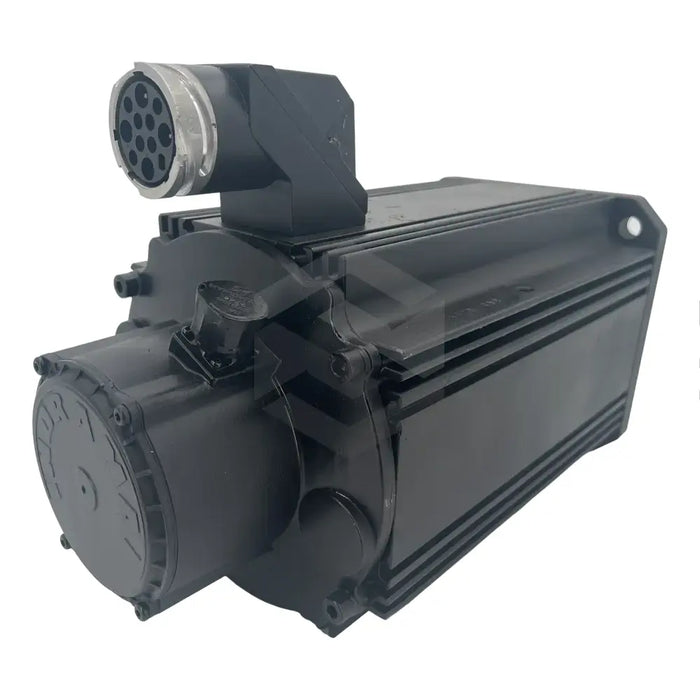

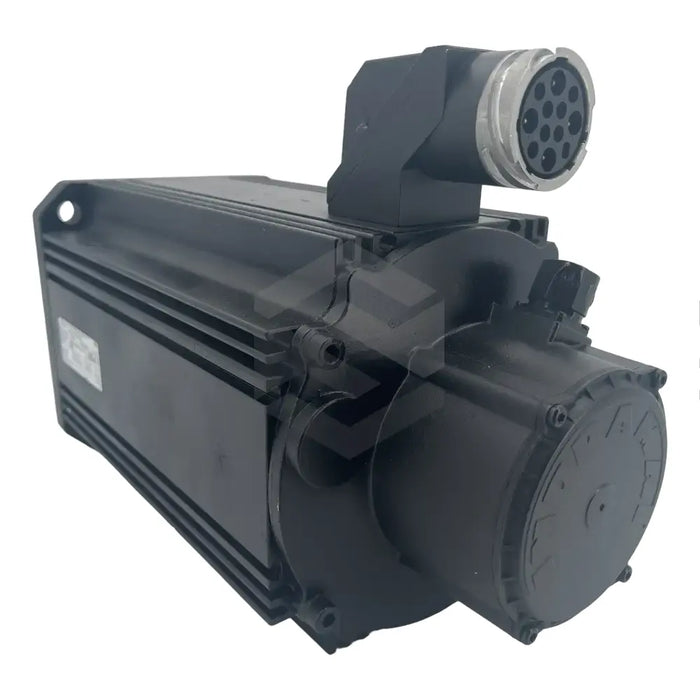

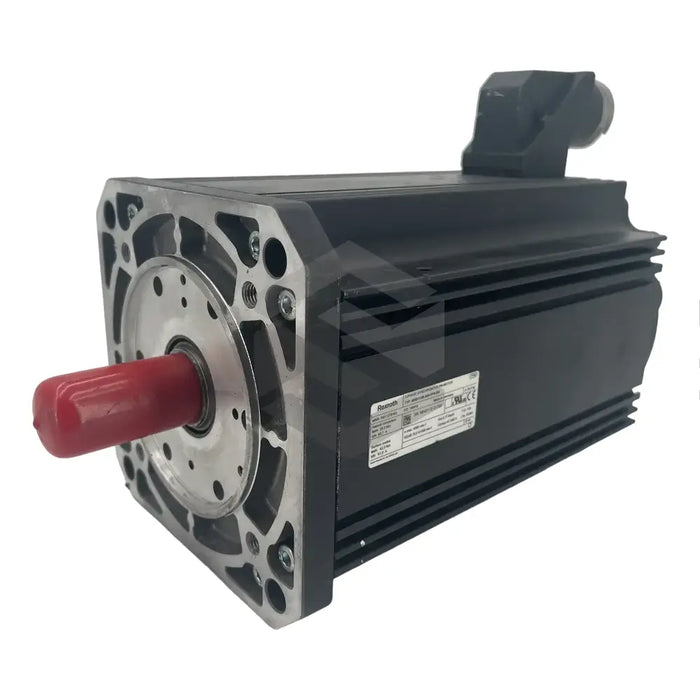

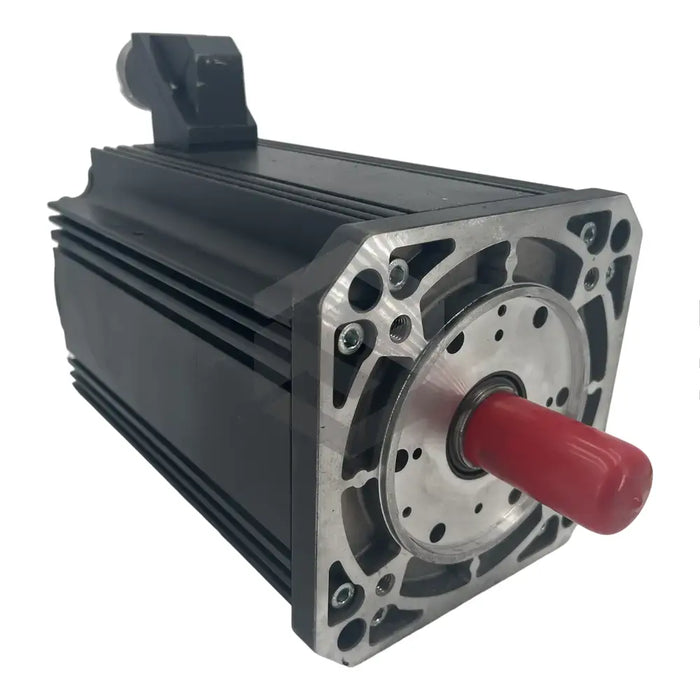

The R911279163 (MHD112B-058-PP0-BN) is a state-of-the-art synchronous motor, developed by Rexroth Bosch Indramat, a leading name in industrial automation technology. Expertly designed, this motor offers high performance and cost-effectiveness, embodying Rexroth's reputation for quality. The R911279163 (MHD112B-058-PP0-BN) motor delivers ideal cooling, achieved through natural convection or surface cooling methods, depending on heat discharge requirements.
With a standard Rexroth motor design, the R911279163 (MHD112B-058-PP0-BN) possesses a flange size of 192mm and a centering diameter of 130mm. Notably, its 'B' frame length allows generation of continuous torque of 28Nm at standstill, and for intermittent operations, it can exert up to 102Nm at the maximum permissible current of 183A, for a maximum period of 400ms. The operational speed is characterized at 4000min-1, yet it can be accelerated up to a maximum of 4500min-1. This motor is equipped with a DIN 6885-1 compliant keyway and key in the shaft and lacks a holding brake feature. Designed for compatibility with drive controllers, it features a digital servo feedback mechanism, incorporating a multiturn absolute encoder. The R911279163 (MHD112B-058-PP0-BN) sets a high standard in the industry while maintaining the exceptional performance and reliability that the Rexroth brand is known for.
