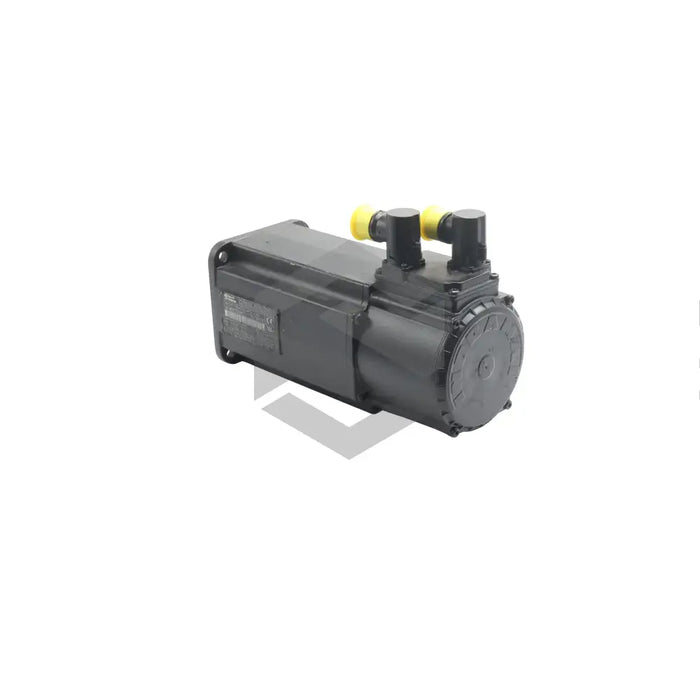

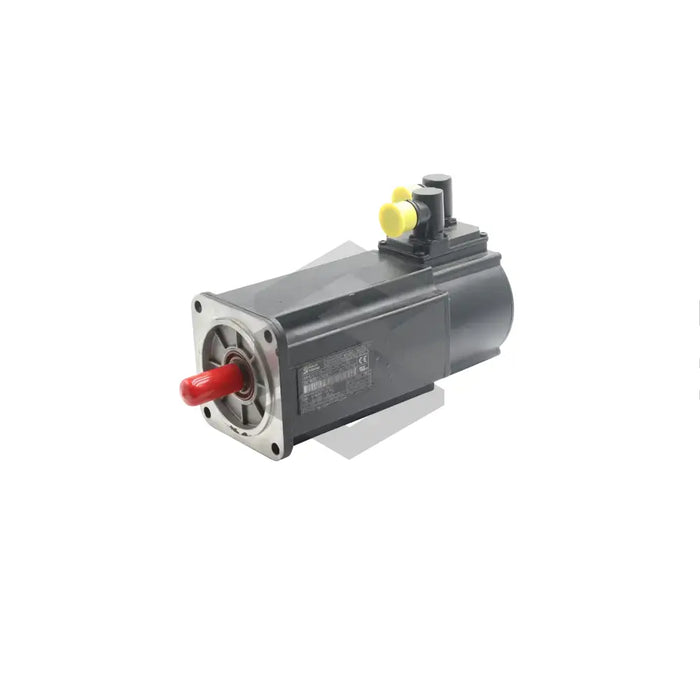

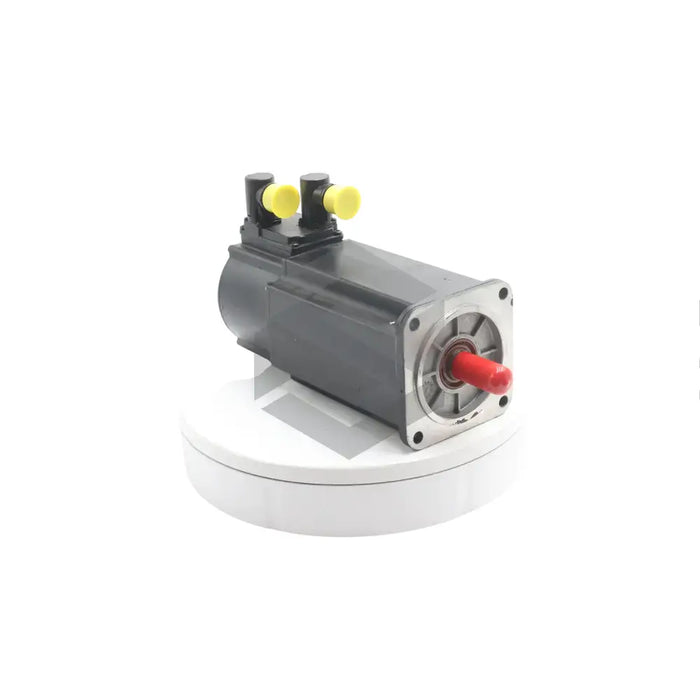

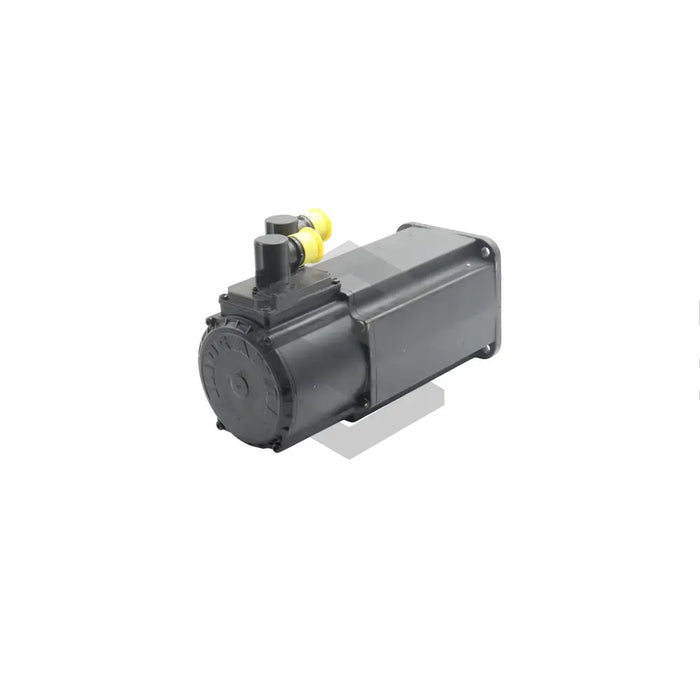

The R911279164 (MHD071B-035-NP0-UN) is a high-performance digital AC motor engineered by Bosch Rexroth Indramat, a German-based industry leader in electrical motors and drives production. The unit is integral in providing feedback in automation systems and is widely applicable in sectors like food processing, packing, paper, and printing among others. This motor is crafted for top-tier performance and durability, boasting protection from overcurrent, overvoltage, and winding over temperature.
Key features of the R911279164 (MHD071B-035-NP0-UN) include its compact size with a 115mm flange and a motor frame length of 8.0 Nm. Moreover, it has a DIN 6885-1 standard compliant drive shaft equipped with shaft sealing rings. It also has a comprehensive digital servo feedback system with an integrated multi-turn absolute encoder, signified by ‘P’ in the name code. The terminal 'UN' indicates that the power connectors can rotate up to 270 degrees and that the housing is designed for natural convection or surface cooling. These specifications collectively contribute to the reliability and versatility of the R911279164 (MHD071B-035-NP0-UN) motor in various industrial automation applications.
