R911279427

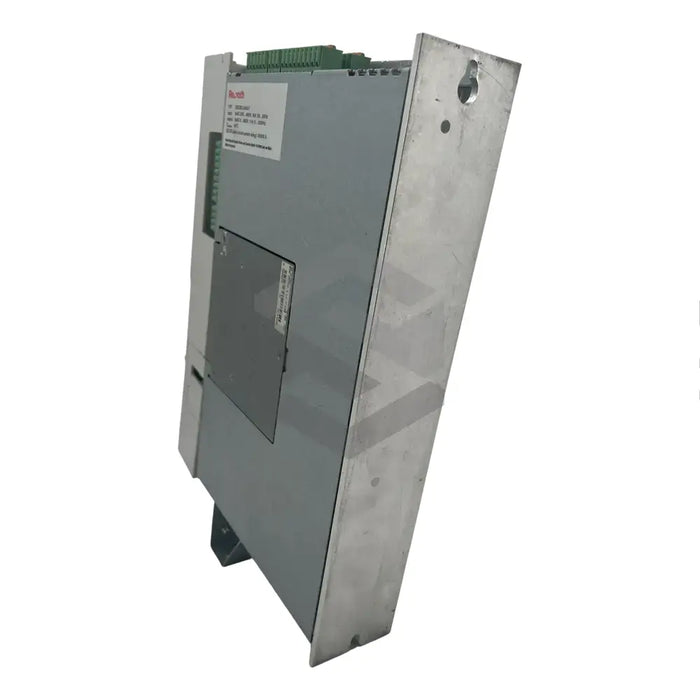

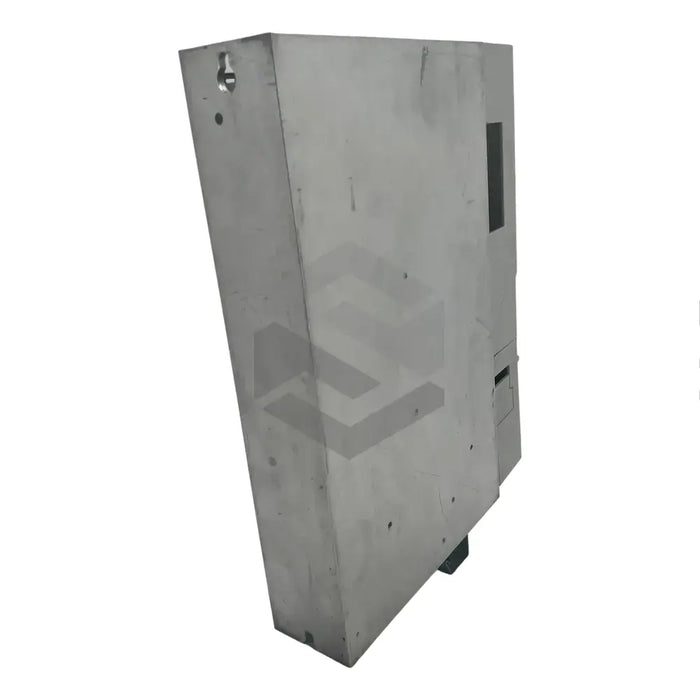

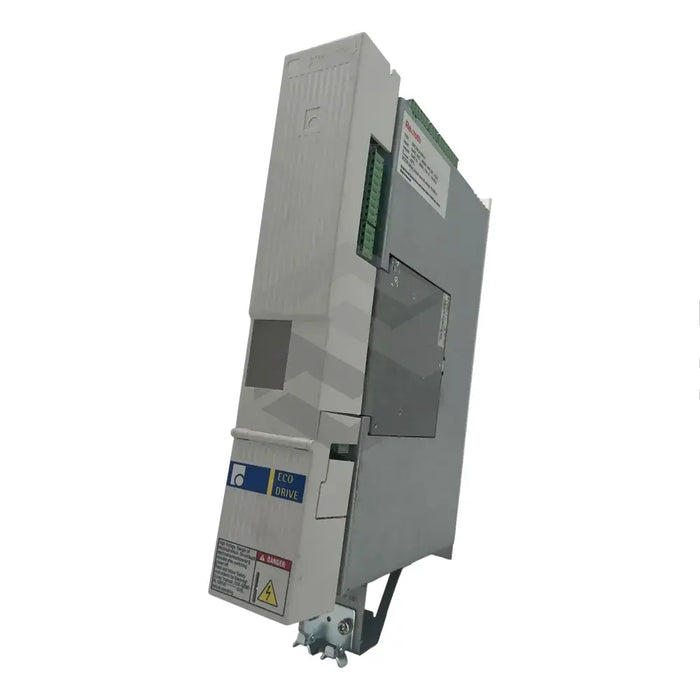

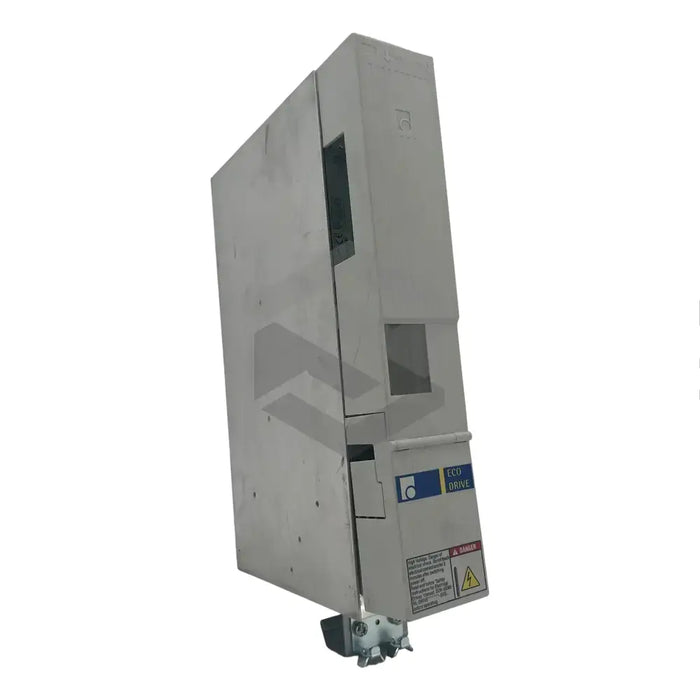

The R911279427 (DKC02.3-040-7-FW) is a high-performance drive controller from the Indramat DKC series, engineered by Bosch Rexroth Indramat. As an integral component of the ECODRIVE03 system, this complex automation device boasts advanced functionalities suitable for controlling both multiple and individual axis. The range of ECODRIVE includes ECODRIVE01, ECODRIVE03, and ECODRIVE Cs, each possessing a distinctive control interface - Parallel, SERCOS, Profibus, Analog, CANopen, or Interbus. Notably, the ECODRIVE03 firmware enables effective operation of both synchronous and asynchronous motors for specialized applications.
The series 02 version 3 controller, R911279427 (DKC02.3-040-7-FW), is characterized by a rated current of 40 A and a nominal voltage of DC 700 V for the DC Bus. It notably employs the SERCOS interface for command communication, the firmware of which can be factory-assigned and remains unspecified. Unique to this drive is its detachable firmware programming module which houses both the parameter and firmware module. The Parameter module is designated for user-specific parameters, and the firmware module features unit-specific firmware. The SERCOS interface, equipped with two fiber optic connections for high-level controller connectivity, makes this drive controller ideal for multi-axis system machines, including printers.
