R911279633

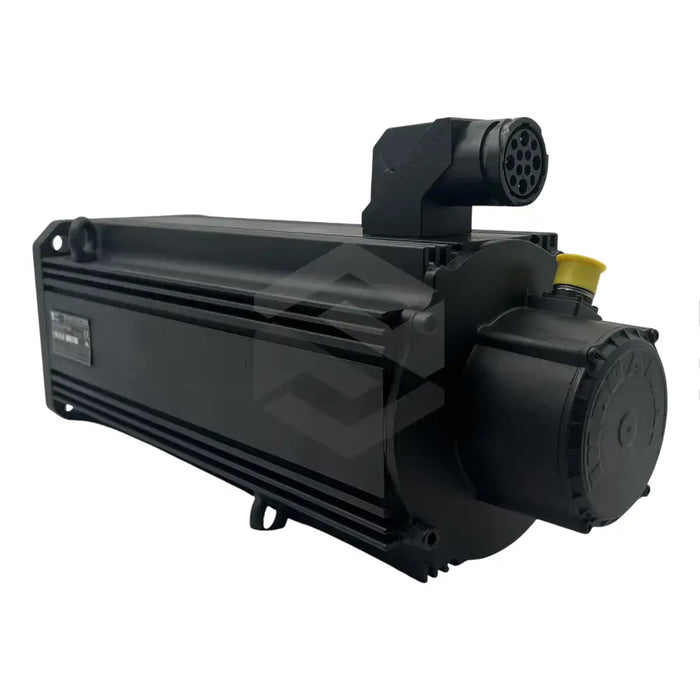

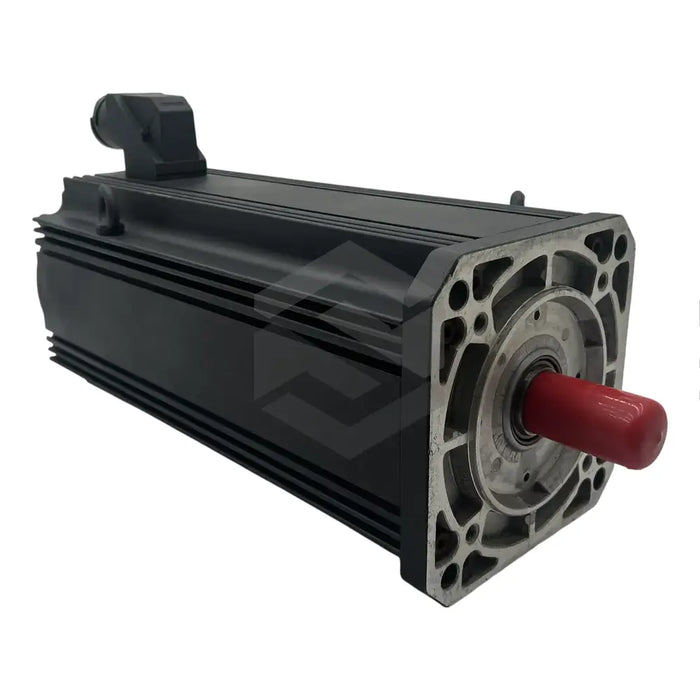

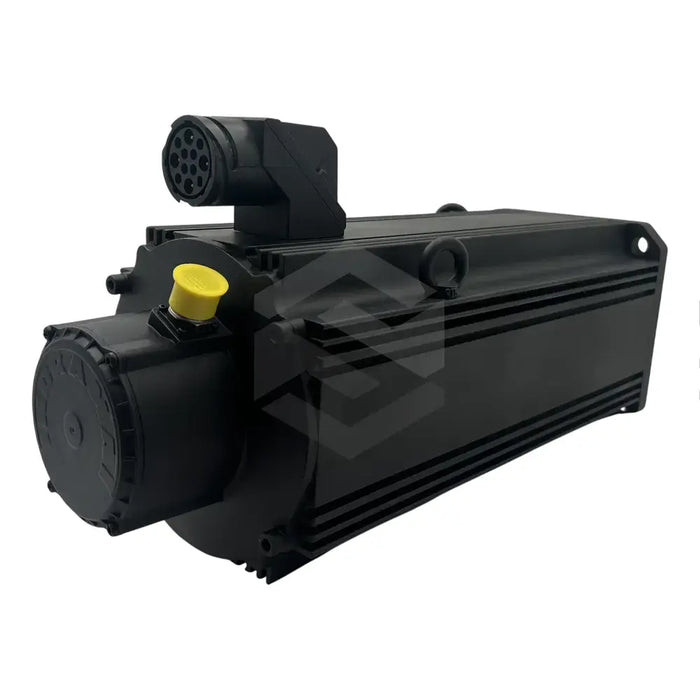

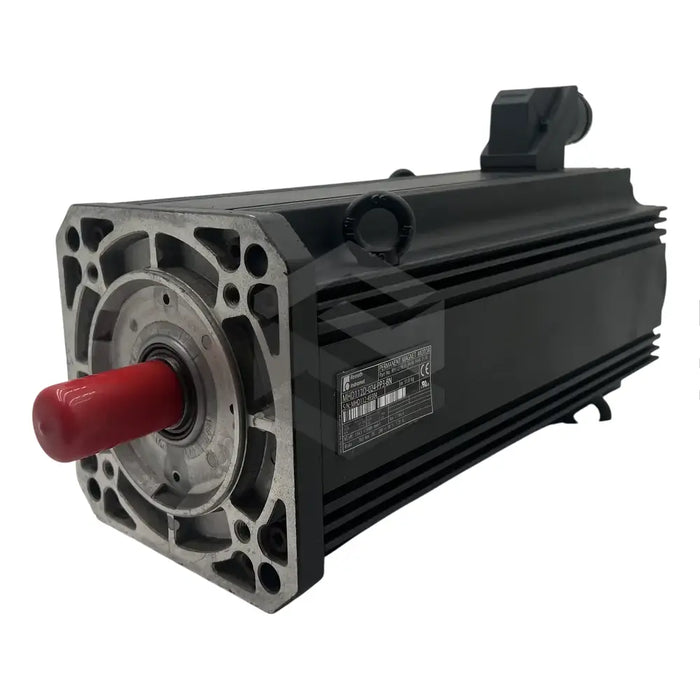

The R911279633 (MHD112D-024-PP3-BN) is a high-quality motor produced by Bosch Rexroth Indramat, equipped with an incorporated encoder and a holding brake for smooth, controlled operation. The encoder is a multi-turn variant, allowing for feedback across multiple shaft revolutions versus a single-turn variant. This integrated encoder offers digitized servo feedback, enhancing the efficiency of the R911279633 (MHD112D-024-PP3-BN) motor. The holding brake, acting as a control feature, inhibits shaft rotation at startup and can be unlocked upon applying a 24 Volts DC signal. This brake has a commanding torque of 70 Nm, although variants with 22 Nm and 32 Nm of holding torque are available at the point of purchase. In terms of design, the motor shaft boasts a key and a seal to curtail oil leakage and reduce the invasion of dust or moisture.
In terms of environmental adaptability, the R911279633 (MHD112D-024-PP3-BN) operates optimally under ambient temperatures of 0 to 40 degrees Celsius and at altitudes ranging from 0 to 1000 meters above sea level. It is imperative that only trained, qualified personnel handle the installation and operation of the R911279633 (MHD112D-024-PP3-BN), given its complexity and safety requirements. The motor can be installed through four dedicated holes on its flange, boasts a power connector situated on side B of the unit, and operates on natural or surface cooling methods. The motor's longevity is enhanced by grease-lubricated bearings designed to last throughout its service life. Lastly, it features an IP65 rated protective housing, which effectively prevents dust incursion.
30 Day Warranty
Technical Specifications
Get In Contact
Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products, all warranties are with Servo Supplier and not the manufacturer.
