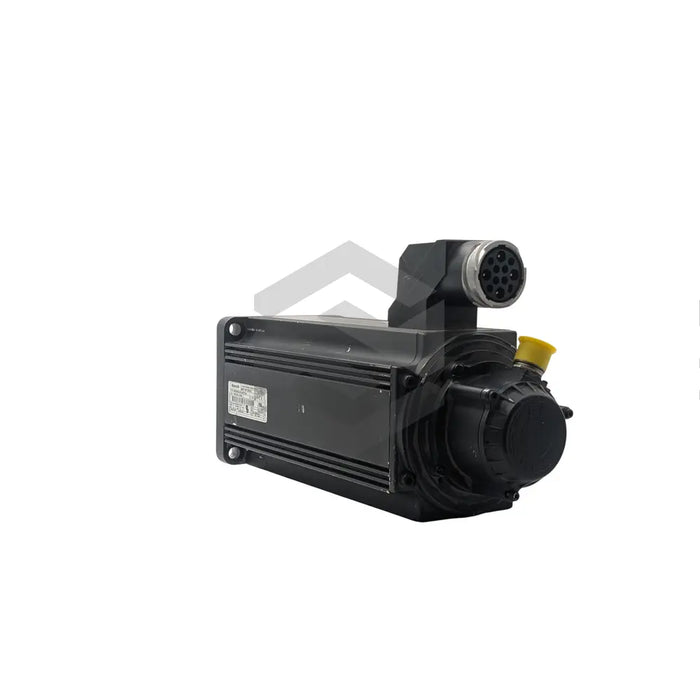

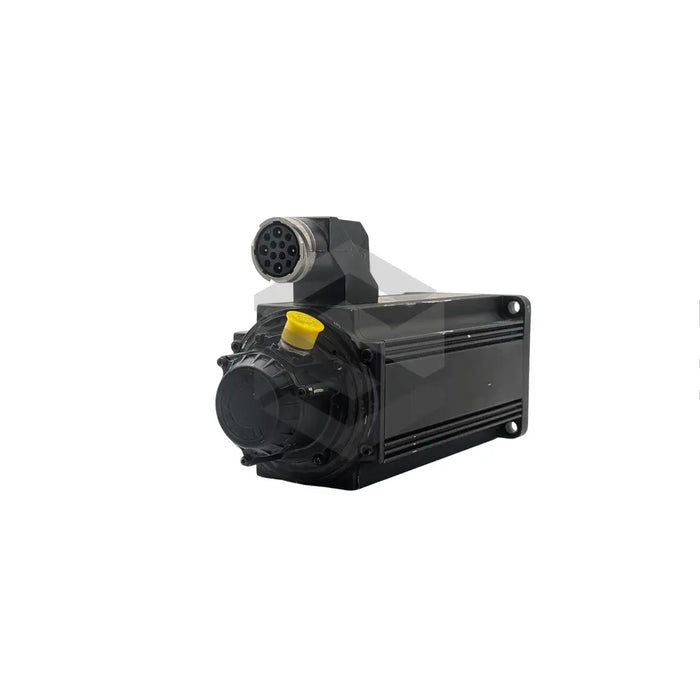

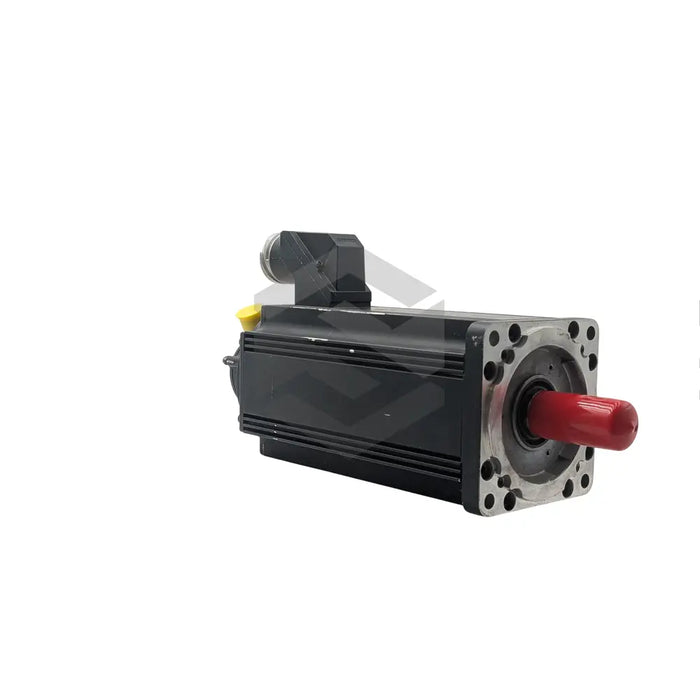

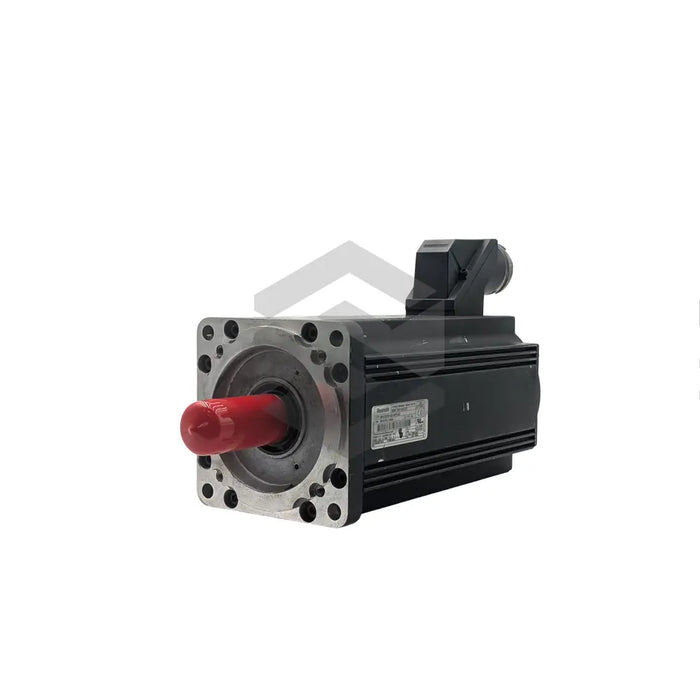

R911279741
The R911279741 (MHD093B-035-NG0-RN) is an expertly engineered product from Bosch Rexroth Indramat, a leading automation equipment manufacturer. Specializing in the development of synchronous motors, drive converters and more, the company aims to provide efficient and durable solutions for the industry. The R911279741 (MHD093B-035-NG0-RN) model offers exceptional dynamic response to harsh working conditions, owing to its built-in overload protection, and supports continuous start-stop functionality.
Capable of operating within a voltage range of 350 - 374 V at a frequency input of 167 Hz, this model delivers precise and continuous power, generating a maximum torque of 66 Nm while using up to 58 A of peak current. With an operational maximum speed of 4500 rpm and a voltage constant of 136 V/1000 rpm at 20 degrees Celsius, mounting flexibility is granted through the possible IMV1, IMV2, and IMB5 positions. Further technical details include a winding inductance of 10.5 mH courtesy of its 4 pole pairs and digital servo feedback encoder system which enables quick start-up. The R911279741 (MHD093B-035-NG0-RN) model complies with IP65 protection standards, a permissible temperature range of 0 to +40 degrees Celsius and a maximum installation height of 1000 MSL, with cooling facilitated via natural and surface modes.
