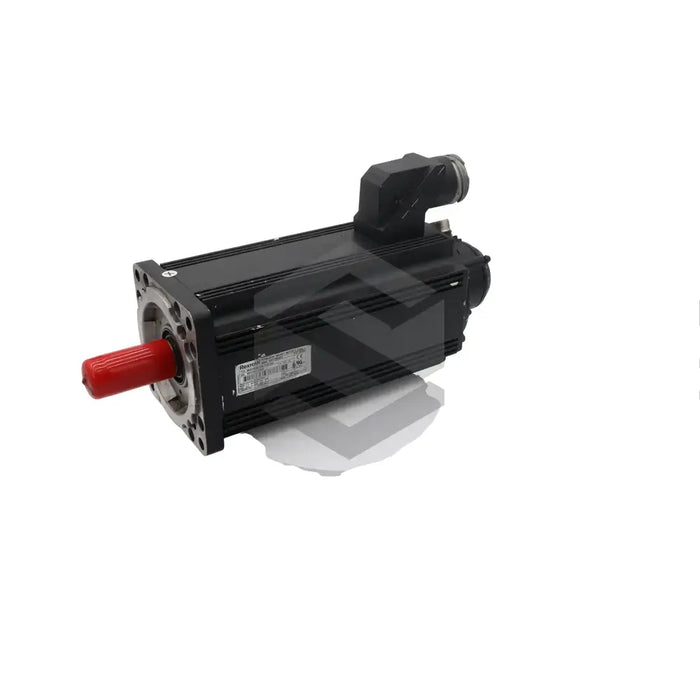

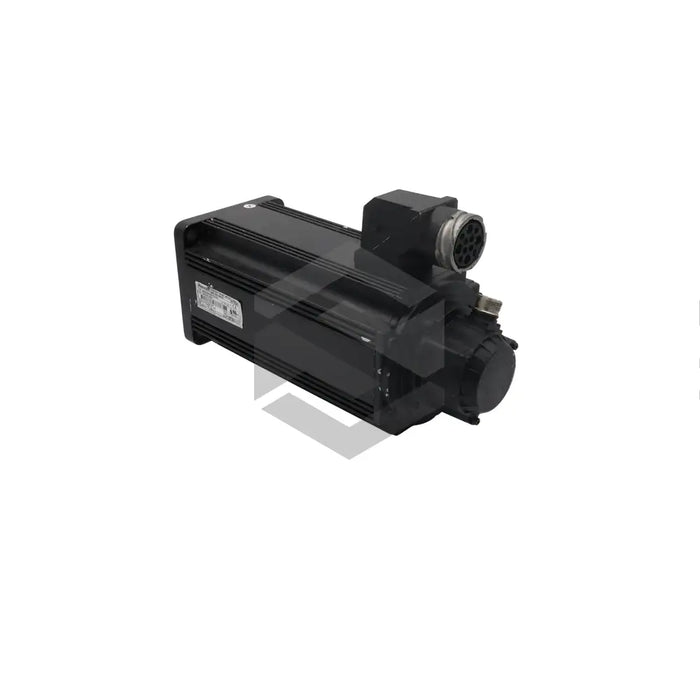

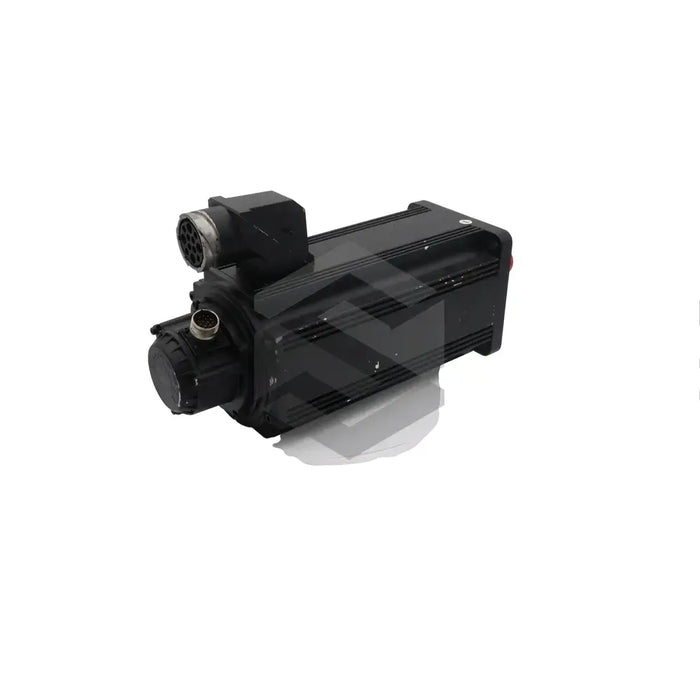

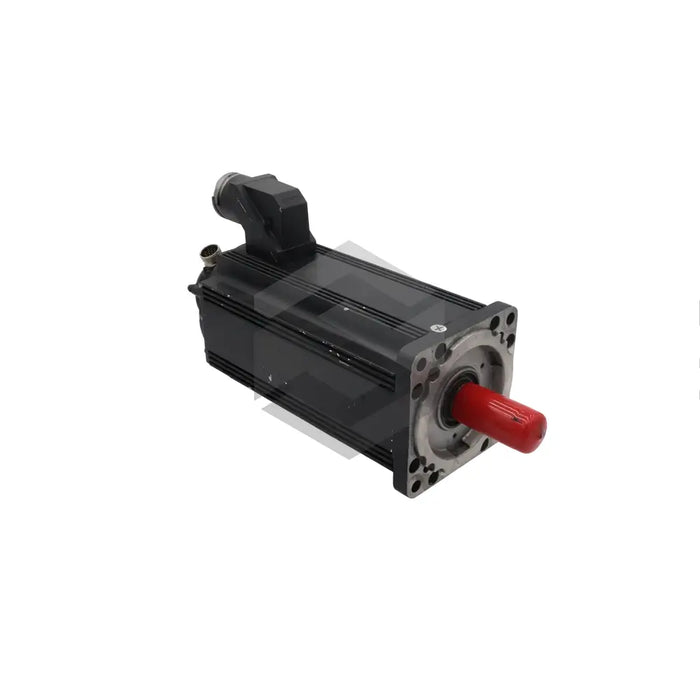

The R911280472 (MHD093B-035-NP1-BN) motor is produced by Indramat for the Bosch Rexroth MHD series. Notably reliable, this high-performing synchronous motor combines improved overload capabilities with zero-maintenance requirements to boost productivity. User-friendly setup simplifies installation and start-up, while the motor's ingeniously magnetic design allows for low inertia. Ideal for use in various specific industrial sectors like robotics, machine tools, and food-processing, the R911280472 (MHD093B-035-NP1-BN) guarantees reliable operation, thanks to its technologically advanced design.
The R911280472 (MHD093B-035-NP1-BN) features a "B" motor frame length and a windings code of "035". Its servo feedback and relative position-detecting mechanics use a DIN 6885-1 keyed output shaft. Furthermore, a crafted sealing ring on the shaft ensures waterproof functionality, and a retaining brake provides a 22-Nm braking force to efficiently stop the motor. For temperature regulation, the motor employs either a natural convection or a liquid cooling mechanism. The liquid coolant displays a power loss of 900 Watts and pH value of 6 – 8. With a power rating of 6.6 kW and a frequency rating of 167 Hz, this motor can deliver a constant torque of 17.5 Nm at standstill and up to 20.9 Nm when running. The R911280472 (MHD093B-035-NP1-BN) achieves a peak speed of 2500 RPM and a maximum current of 101.2 Amperes. Operation should be avoided in extreme temperatures or submersion conditions.
30 Day Warranty
Technical Specifications
