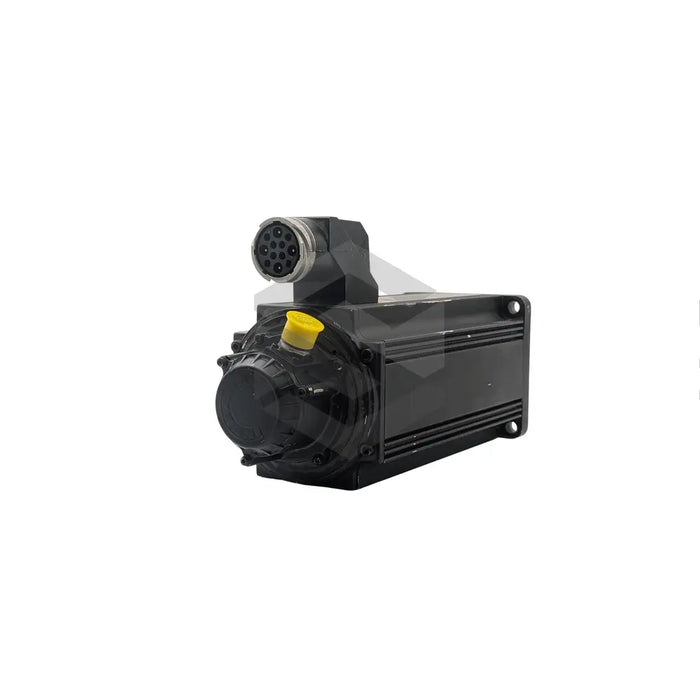

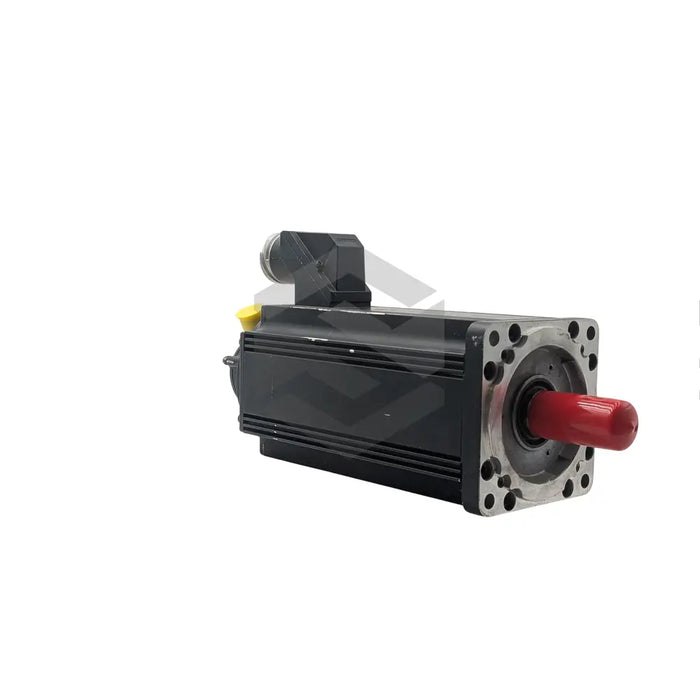

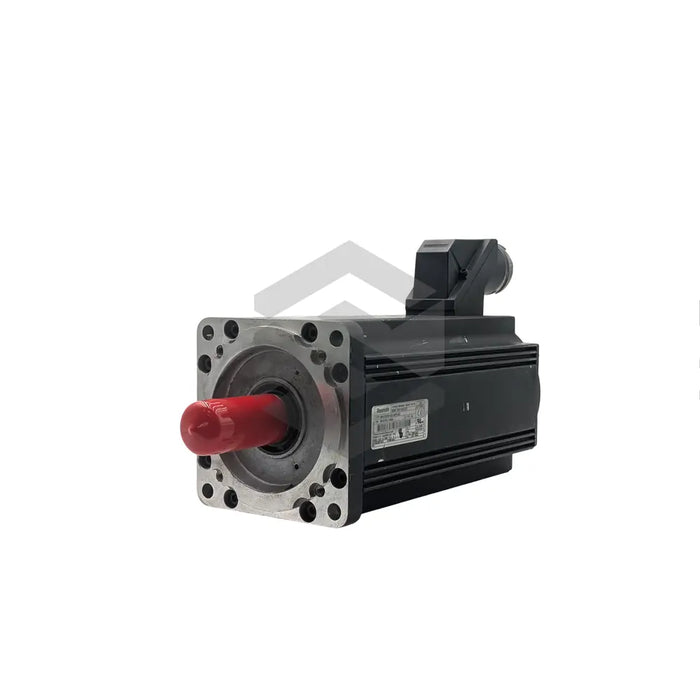

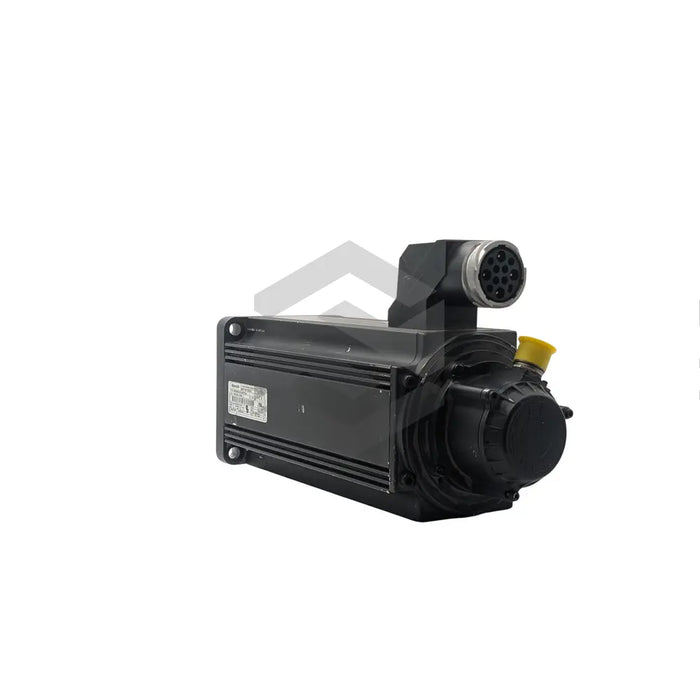

R911280584
The R911280584 (MHD093B-035-NG0-BN), produced by Bosch Rexroth Indramat, is a state-of-the-art component which epitomizes their dedication to pioneering motion control technology. Functioning alongside a compatible digital intelligent drive system, this synchronous motor boasts high dynamic output as well as optimal performance continuity in even the most demanding operational climates courtesy of its brushless design and IP65-rated protection.
It features electronic commutation and permanent magnets, paired with four pole pairs, and has a winding inductivity of 10.7 mH. To maintain the motor's ambient temperature, it makes use of both natural and liquid cooling methods. The model can operate on an input AC voltage between 350 and 396 V at a frequency of 167 Hz. When using natural cooling, the R911280584 (MHD093B-035-NG0-BN) delivers a rated torque between 17.5 and 20 Nm, consuming between 12.8 and 15.1 A of rated current with a 60/100 K motor temperature increase. When in liquid cooling mode, the torque output rises to 33.3 Nm while drawing 24.3 A of continuous current. The motor comes with a power connector on the B-side while lacking a holding brake. The recommended installation temperature ranges from 0 to +40 degrees Celsius.
