R911281505

Original price $6,910.00 - Original price $6,910.00
Original price
$6,910.00
$6,910.00 - $6,910.00
Current price $6,910.00
In Stock, Ships Today
Request a quote

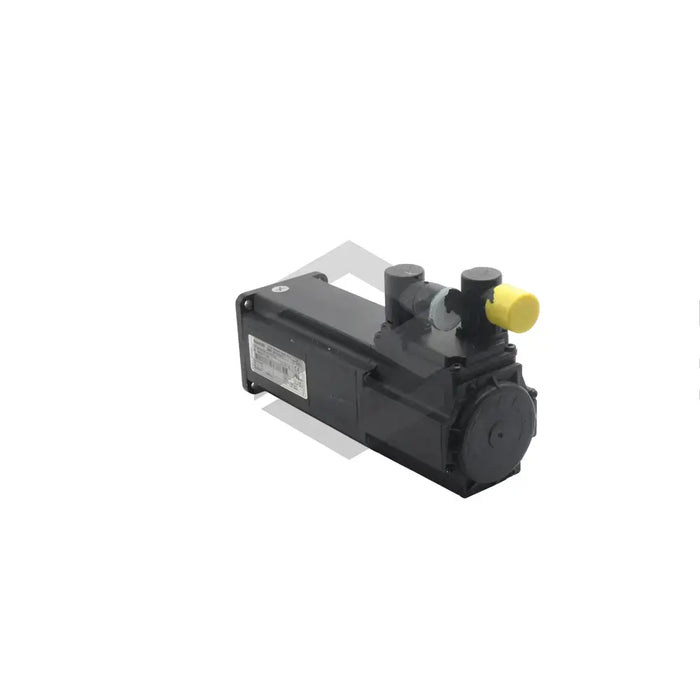

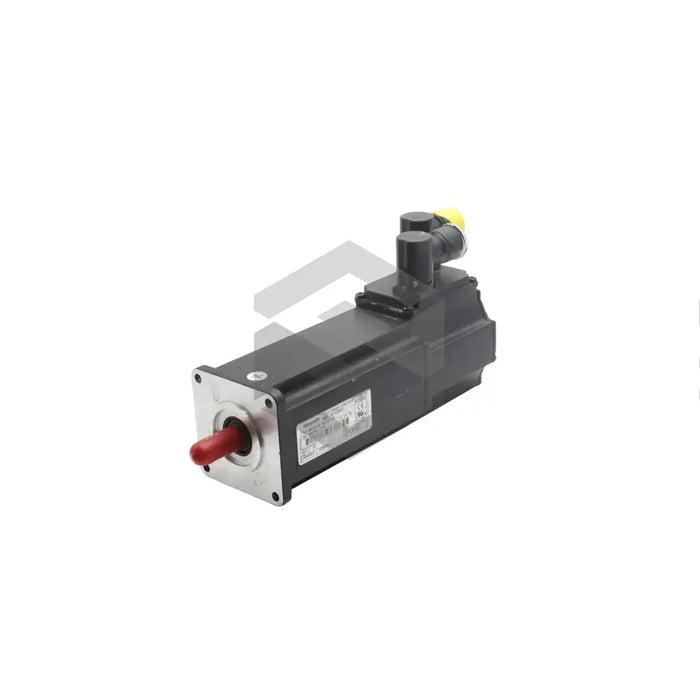

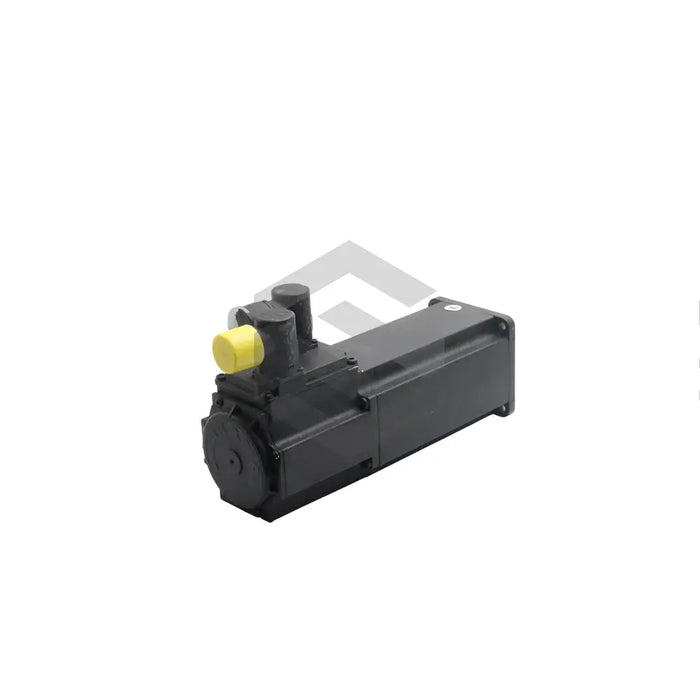

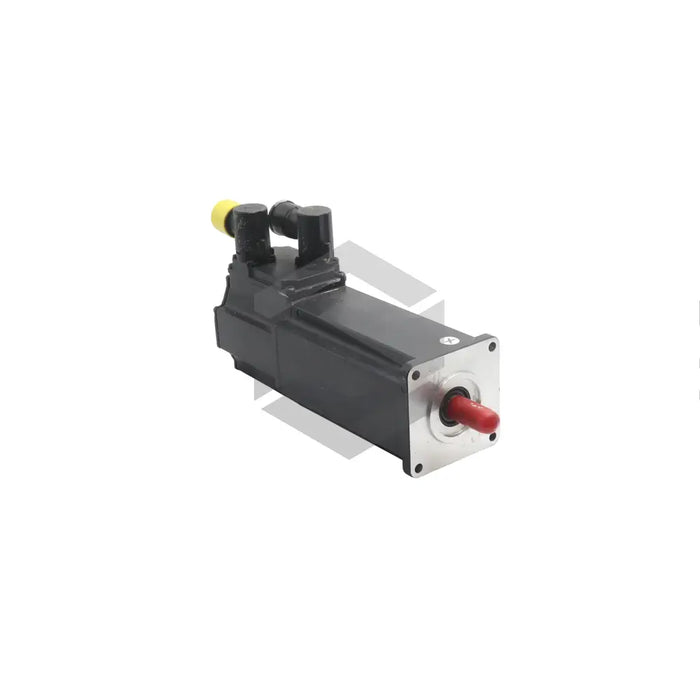

The R911281505 (MHD041B-144-NP1-UN) is a superior servo motor produced by Bosch Rexroth Indramat, a company known for their affordable, high-quality motion control equipment. This model distinguishes itself with its IP 65 protection rating, indicating a strong dust and water resistance, and is encased in a basic-black prime-coat housing. Designed to function optimally at an ambient temperature range of 0 to 45 degrees Celsius and at elevations up to 1,000 meters above sea level, the motor operates at a rated velocity of 6,000 revolutions per minute and consumes an 11.3A peak current during maximal load Referred to by operators as a permanent magnet motor or brushless servo motor, the R911281505 (MHD041B-144-NP1-UN) weighs 4.5 kg and is recognized for its hassle-free operation, due in large part to its lifetime-lubricated bearings. With a thermal time constant of 4.5 minutes, it offers a theoretical maximum torque of 11.3 Nm and operates best with equipment approved by the manufacturer. This motor guarantees a torque of 0.4 Nm/A at 20 degrees Celsius, a winding resistance of 1.8 Ohms and a winding inductance of 5mH. The motor is storable in temperatures ranging from -20 to +80 degrees Celsius and is shipped worldwide by Servo Supplier.
30 Day Warranty
Technical Specifications
  • Peak Current Consumption: 11.3 A
  • Enclosed Housing Quality: IP 65
  • Storage Temperature: -20 to +80 degree Celsius
  • Weight: 4.5 kg
  • Rated Velocity: 6,000 revolutions per minute
