S image of R911281529

R911281529

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

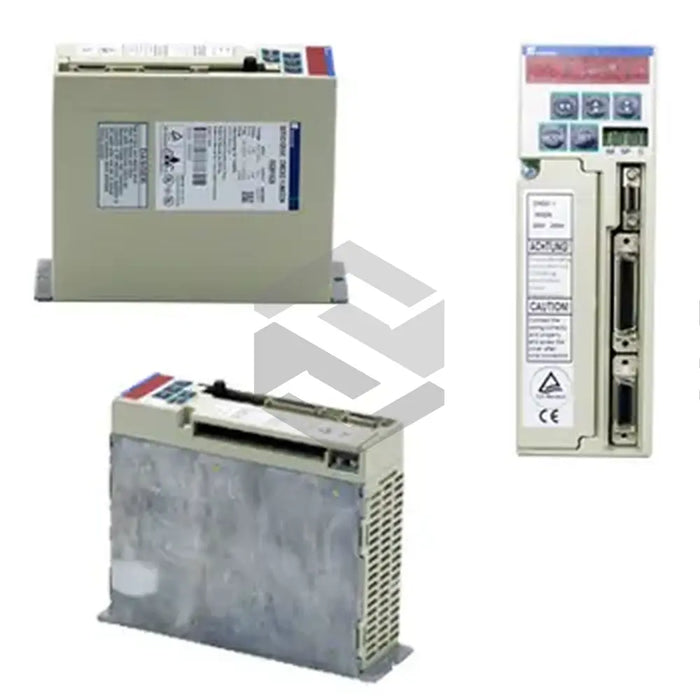

The R911281529 (DMD02.1-W022N) Servo Drive, part of the Indramat Rexroth Bosch group's MiniDrive series, is specifically designed to match with the MMD022A* AC servomotors. Its distinguishing features include a power output of 200W, a voltage of 230V, and an incremental encoder capable of 2500 increments per rotation. The distinctive design of the R911281529 (DMD02.1-W022N), doesn't include a side heat sink since its power output is on the lower side when compared to other variants. Instead, it employs a 50mm x 130mm heat sink positioned at the bottom for passive cooling. This design requires maintaining adequate air space around the module to prevent overheating. Measuring 50mm in width, 168mm in height and 130mm in depth, the servo drive has continuous regeneration power of 5 watts with a peak regeneration power of 1600 watts. The front panel boasts an LED display, three data-entry switches for parameter selection and manipulation, and a terminal block for servomotor and power supply connection. On the side, there are connectors for optional PC connection, user-side signal connectivity, and a rotary encoder connection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Regeneration Power (Continuous)

5 watts

Additional Connectors

For PC, User-side signals, Rotatory encoder.

Cooling Method

Natural Cooling

Power Output

200W

Module Dimensions

50mm x 168mm x 130mm
