R911281534

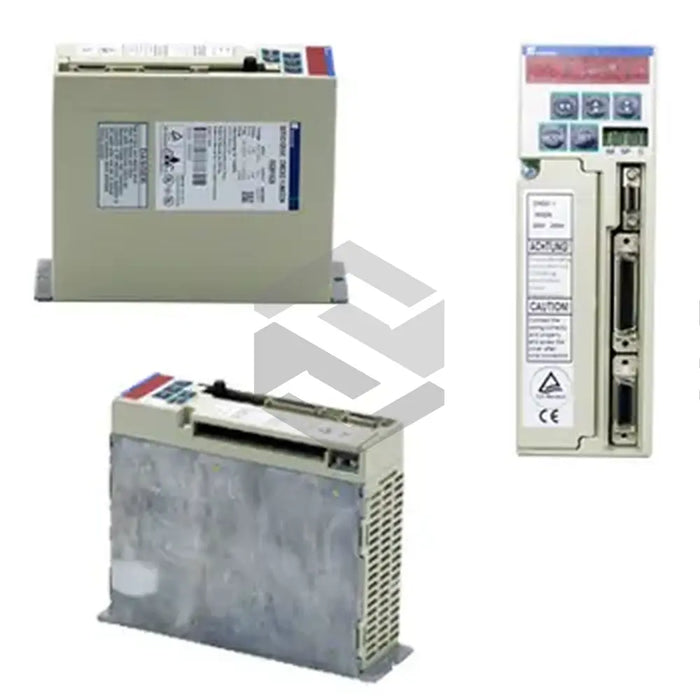

The R911281534 (DMD01.1-W022N) is a high-quality AC servo drive, produced by Bosch Rexroth Indramat. Crafted for compatibility with Indramat's MMD022A1 AC servomotor, this servo drive is a part of the distinguished DMD series. Characterized by a line type of 1 and a design type of 1, it must be fixed solely onto fire-resistant materials, such as metal. It is vital to ensure that this drive is used in accordance with the stipulated motor combination, and the input power supply relates correctly to the product's specifications. The drive could potentially face risks of firing or smoking if the voltage exceeds the rated range. The operating temperature should remain between 0°C and +50°C as this greatly influences the product’s lifespan. Also, power supply must be terminated and given a five-minute break before any wiring, inspection or adjustment.
The R911281534 (DMD01.1-W022N) possesses a power rating of 100W and requires the power supply to be cut off when not in use for long durations. Incorrect wire connections could lead to malfunctioning. It accommodates both single and triple-phase connections. Before initiating operation, the ground terminals of the driver and the motor must be connected. The product includes a no-use breaker for emergency power disconnection outside the product. This drive is equipped with a natural cooling feature and a nominal voltage of 3 x 230VAC also compatible with 1 x 230VAC. Shipping availability is global.
