R911281824

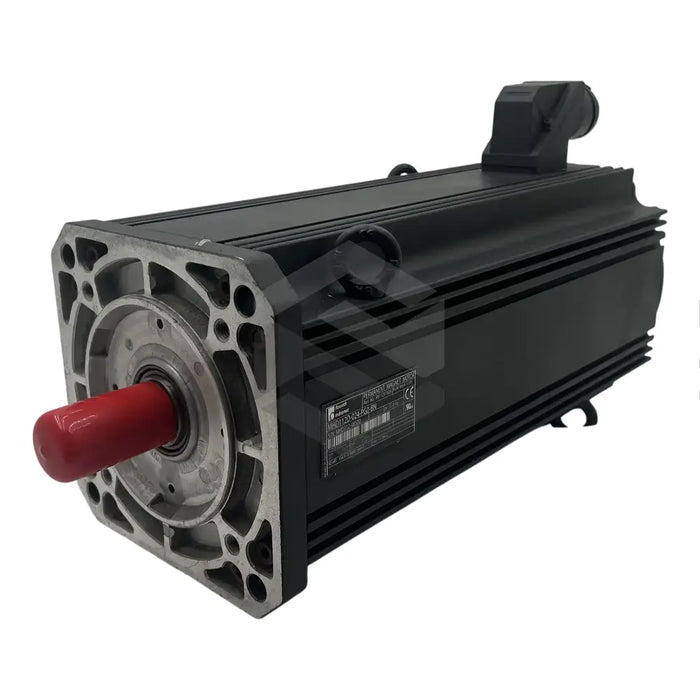

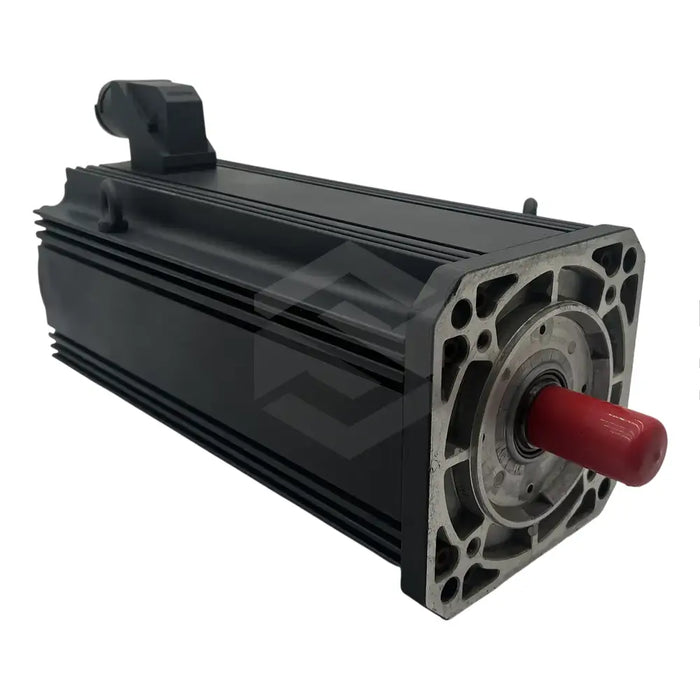

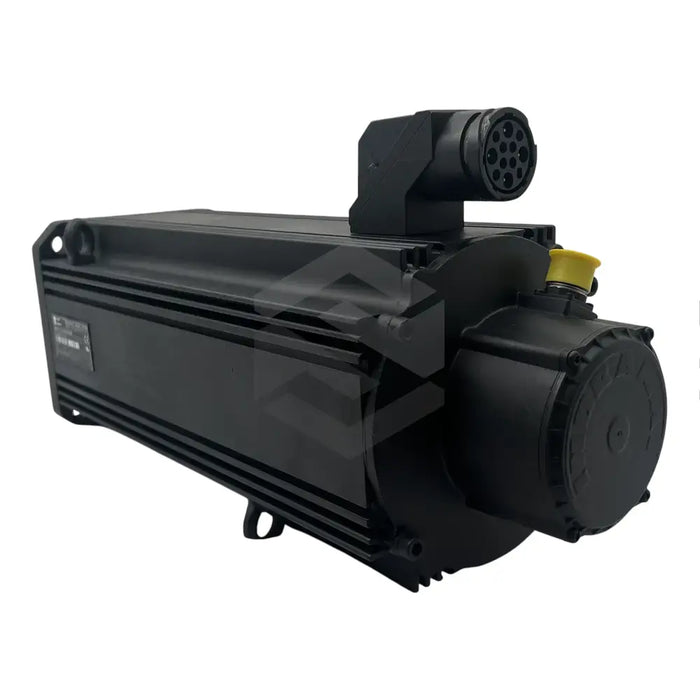

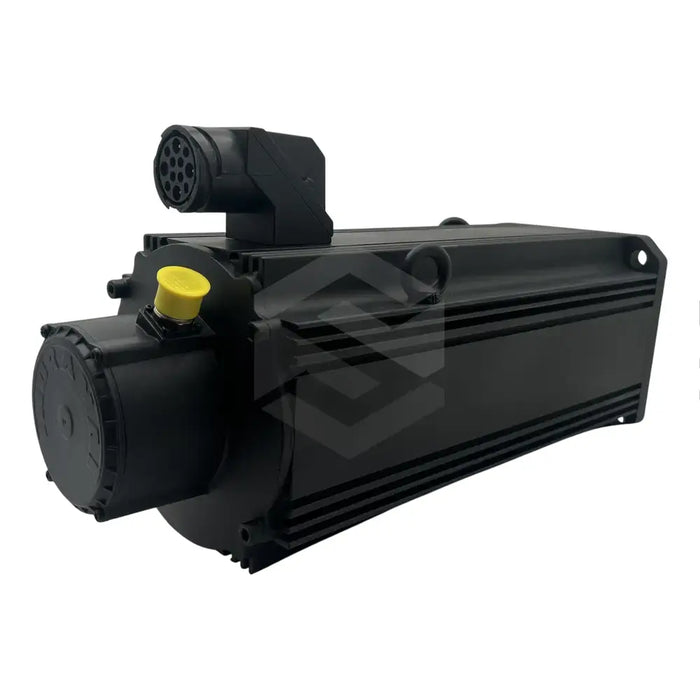

The R911281824 (MHD112D-024-PG0-BN), developed by Bosch Rexroth Indramat, is an industrial synchronous motor that transmutes electrical energy into the mechanical energy crucial for a plethora of industrial machinery. This compact device boasts an IP65 protection class, ensuring comprehensive protection against solid materials and liquids from any direction. A DIN 42948 standard flange allows for the convenient installation of the industrial motor. The motor's high overload capacity is maintained through effective heat dissipation from the stator windings to the exterior of the motor housing. Additional features include grease-lubricated ball bearings integrated into the housing that help minimize frictional heat generated during operation.
This industrial motor regulates operational heat through natural convection and can be optionally equipped with an external air blower to support this mechanism via surface cooling. Operating with 47.4 amperes of continuous input current, the motor produces 72-newton meters of output torque and replicates at a speed of approximately 3000 rpm. The R911281824 (MHD112D-024-PG0-BN) is composed of 4 pole pairs and operates with a winding inductivity of roughly 5.65 millihenries. A built-in memory card stores essential configuration data, facilitating a rapid start-up when required.
