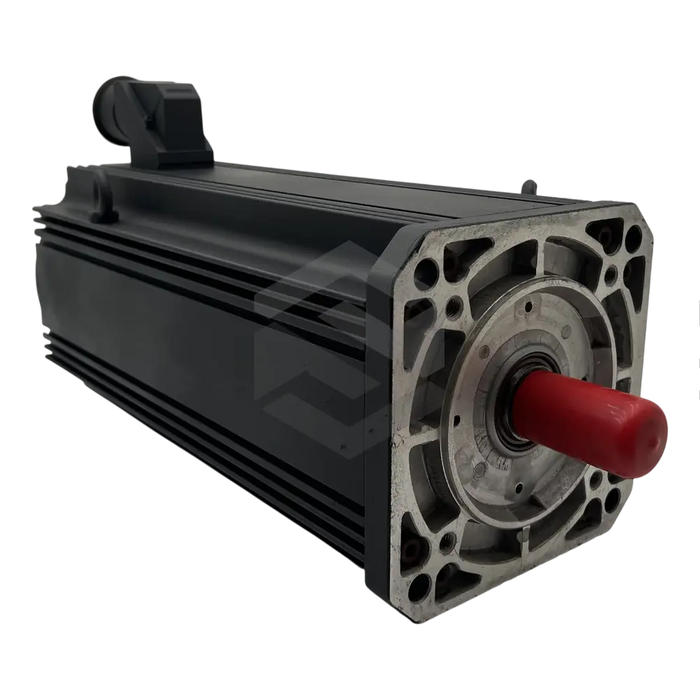

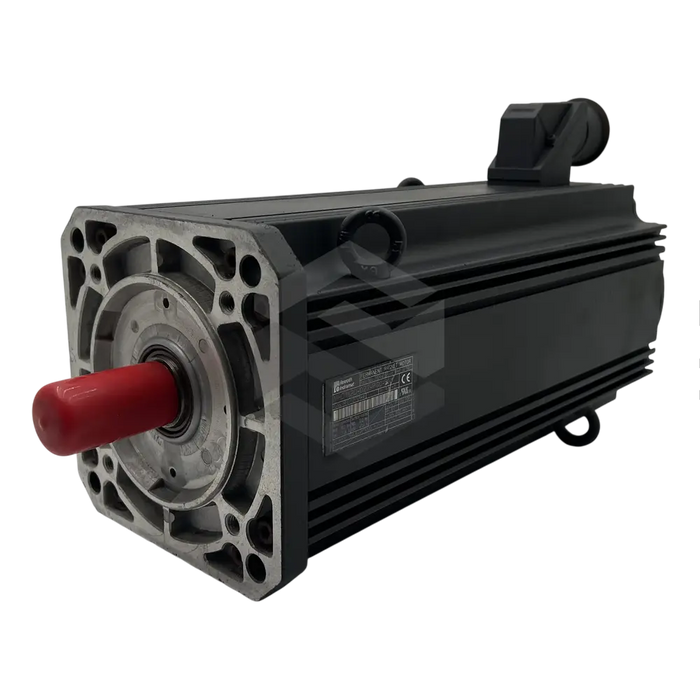

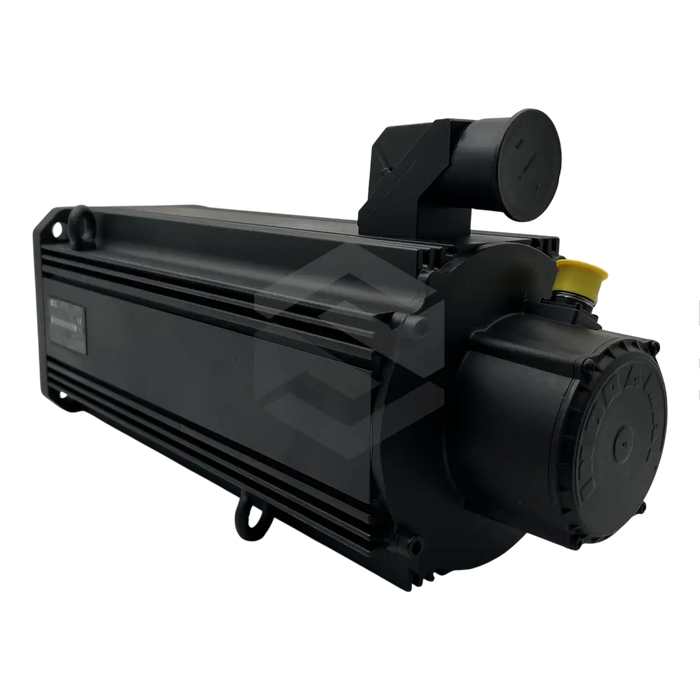

The R911282443 (MHD112D-027-PG0-BN), a product of Bosch Rexroth Indramat, is an MHD series synchronous motor. It features a frame size and length of 112 and D respectively, with a motor winding code of 027. The motor is equipped with digital servo feedback facilitated via an internally incorporated multiturn absolute encoder. While the motor doesn't come with a holding brake, one can be requested as an additional accessory. It has a plain shaft fitted with a shaft sealing ring. The electrical power connector is coupled to side B. The motor housing is designed for natural convection cooling.
In terms of electrical parameters, the motor has a characteristic speed of 3000 RPM and peak current of 142.2 Amps. Its rated speed is 2000 RPM, with a frequency of 133 Hertz, and varying voltage ratings. Mechanically, the motor can reach a top speed of 3000 RPM, with a theoretical maximum torque of 187 Nm. It possesses a rotor with a moment of inertia of 350 x 10-4 kg m2. The motor's housing is IP65 rated, with an F class insulation as per DIN VDE 0530 Part 1. Weighing in at 56 kg, this motor can be safely stored between temperatures of -4 to 176 degrees Fahrenheit and operates optimally between 32 to 104 degrees Fahrenheit. It is recommended for installation, commission, and maintenance tasks to be carried out by trained personnel.
