R911282446

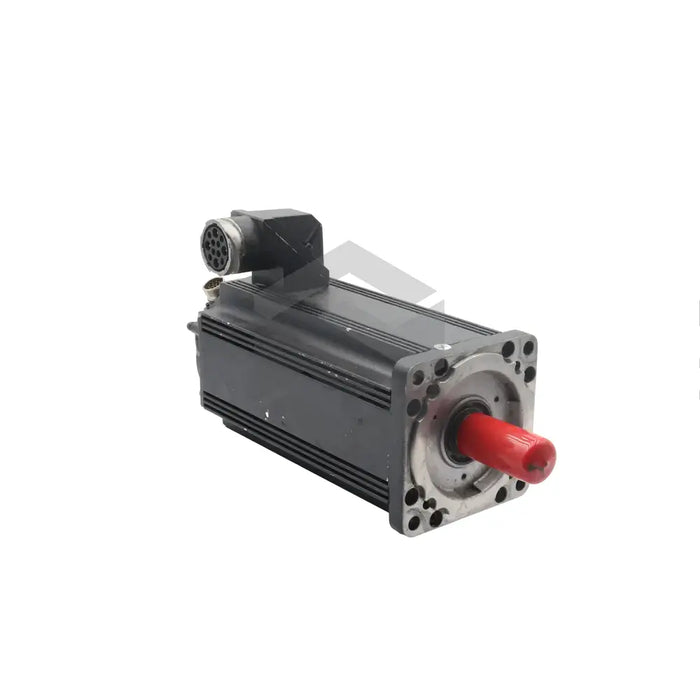

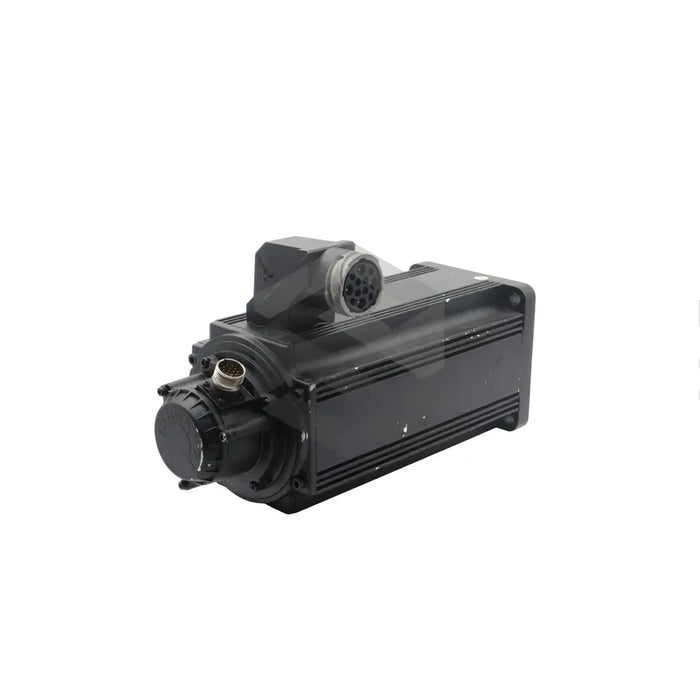

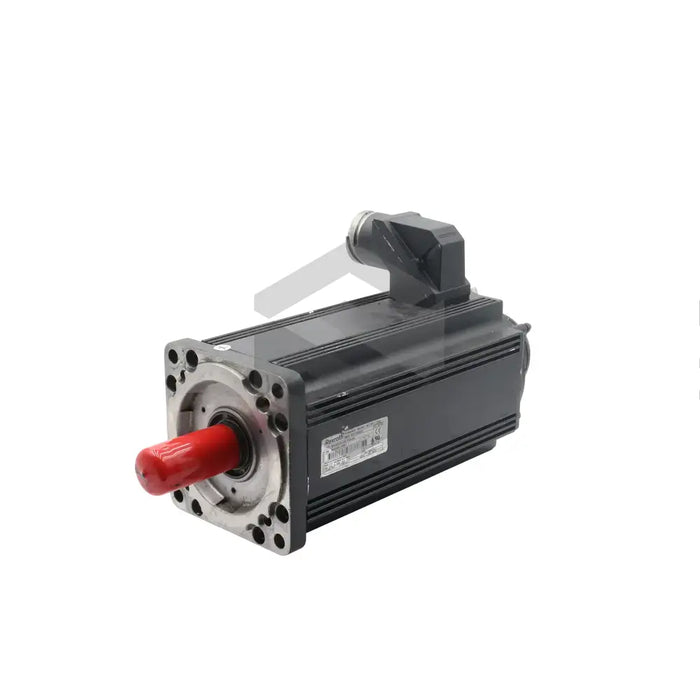

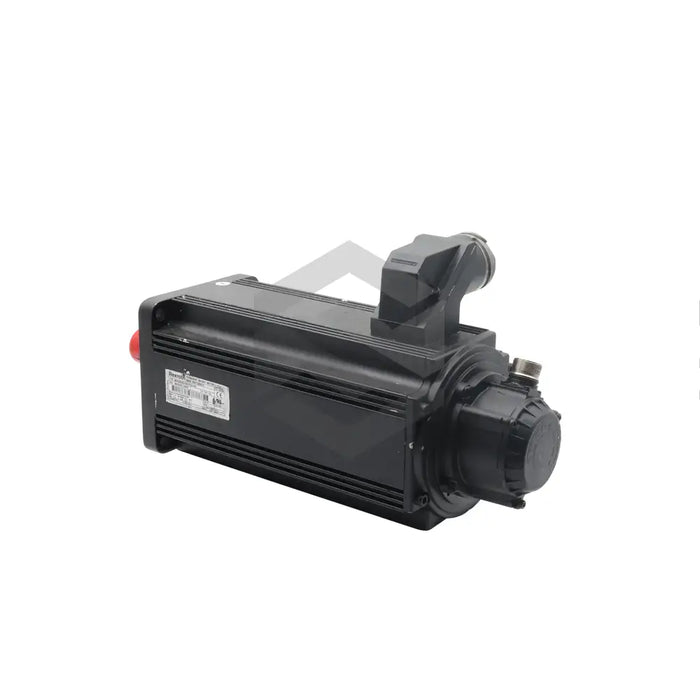

The product R911282446 (MHD093B-035-NG1-RN) is a reliable synchronous motor created by Bosch Rexroth Indramat. It is designed to work optimally with a Bosch drive controller, making up a part of an economical automation system. This motor is ideal for usage in machine tools, automation and handling systems due to its key features which include high dependability, overload defense, superior performance specifications, effortless machine attachment, and convenient wiring. Additionally, the R911282446 (MHD093B-035-NG1-RN) comes with a machine attachment flange following DIN 42948 guidelines and a measurement of 140 / 150 mm. The motor's structure emphasizes low inertia and includes (semi) permanent magnets complemented by electronic commutation.
This device boasts a continuous standstill torque of 17.5 Nm and a centering diameter of 130mm. It supports digital servo feedback for relative position detection. An optional integration of encoders for absolute position detection is also available. The motor shaft, free of keyways but with a sealing ring, provides convenient connectivity to machine elements. It includes a 22Nm-torque holding brake, operated by an electrically releasing mechanism requiring a 24V DC signal, which aids in clamping the servo axis when the motor is not energized. Lastly, the motor housing is designed to cool naturally or through surface cooling.
