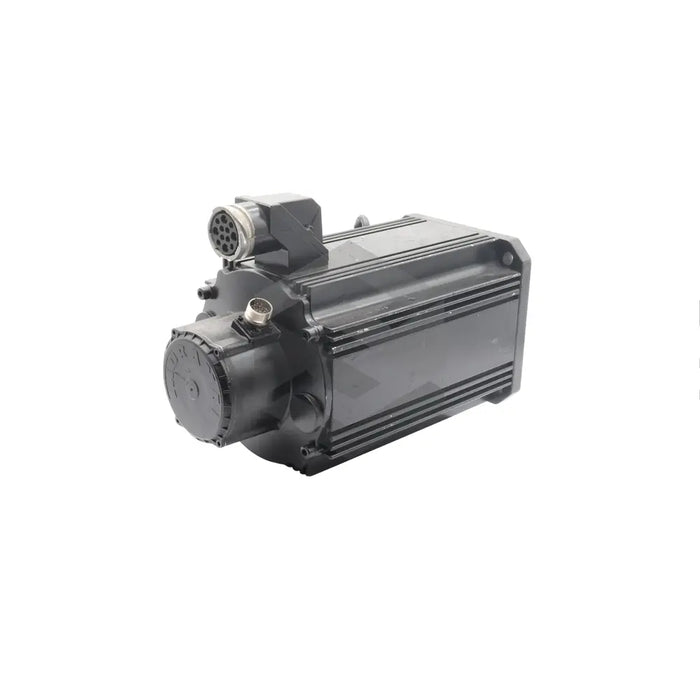

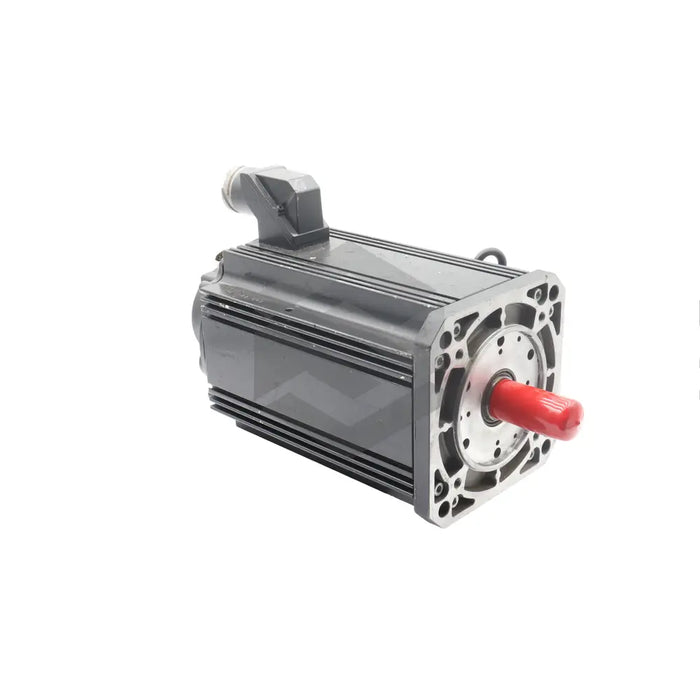

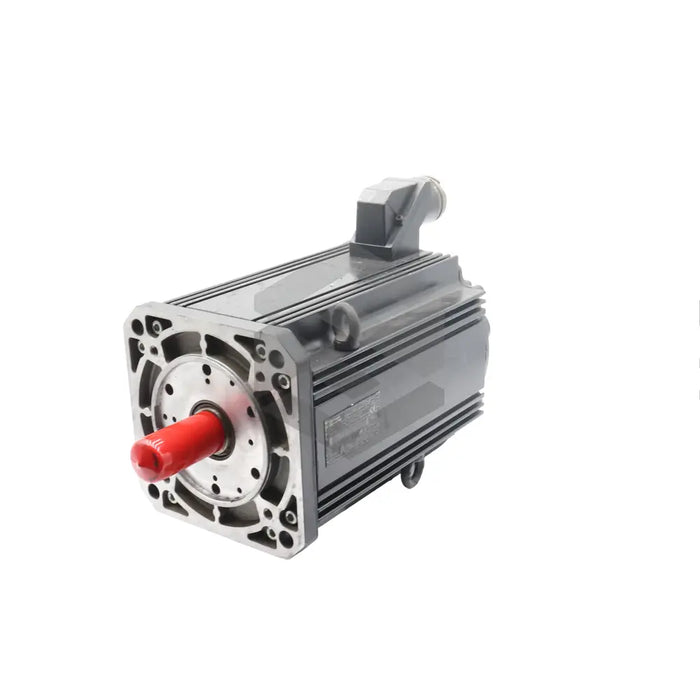

R911282575
The R911282575 (MHD112B-048-NP0-BN) motor is a part of Bosch Rexroth's MHD Synchronous Servo Motor Series. Bosch Rexroth, a global leader in motor design, is renowned for its groundbreaking mechanical engineering capabilities. The company's model of innovation transcends the barriers of traditional design, leading to the development of the modular IndraDrive system. This versatile design can be readily integrated into a variety of systems, applications, and encompasses different sectors such as robotics, printing and textiles.
Functionally, the R911282575 (MHD112B-048-NP0-BN) motor runs at a characteristic speed of 3500min-1 with a 160.0A peak current and a torque constant of 0.88Nm/A at 20C. It possesses a voltage constant of 80.0V/1000min-1 and maintains a winding resistance of 0.22 at 20C and a winding inductivity of 3.1mH. With 4 pole pairs, a rated speed of 2800, and a rated frequency of 187Hz, the motor can reach a maximum torque of 102.0Nm and a maximum speed of 4500min-1. Weighing 34.0kg with an acceptable ambient temperature range of 0-40C, it exhibits inherent stability. Built to comply with DIN VDE 0530 Part 1 standards, the motor has a class F insulation and an IP65 degree of protection. Lastly, its sleek black housing, coated in RAL 9005 varnish, allows for easy integration into other systems.
