R911283229

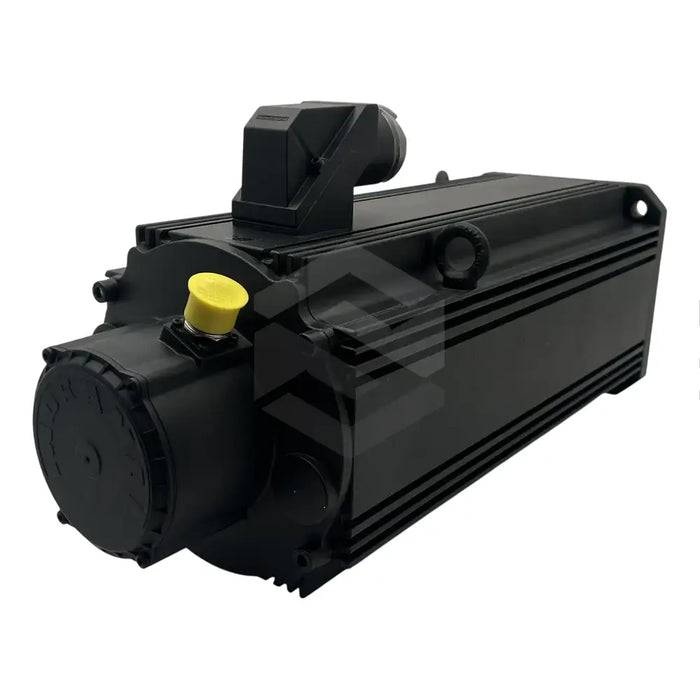

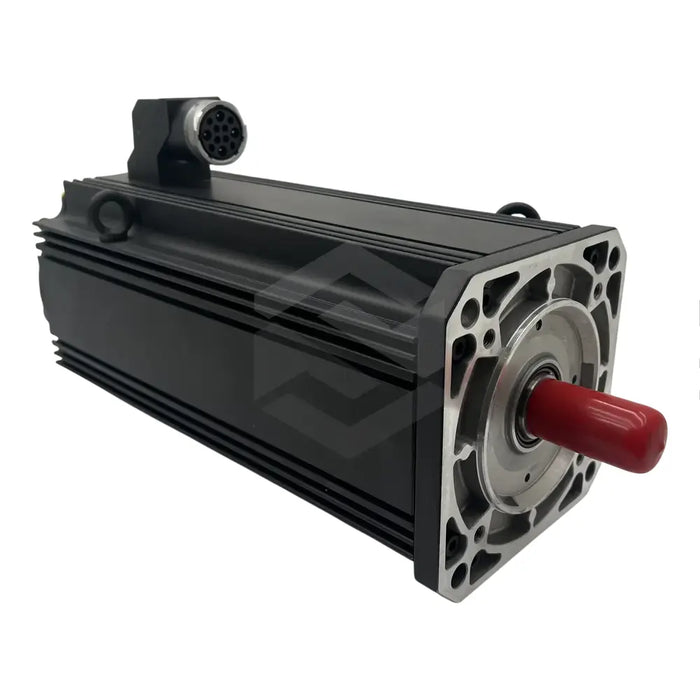

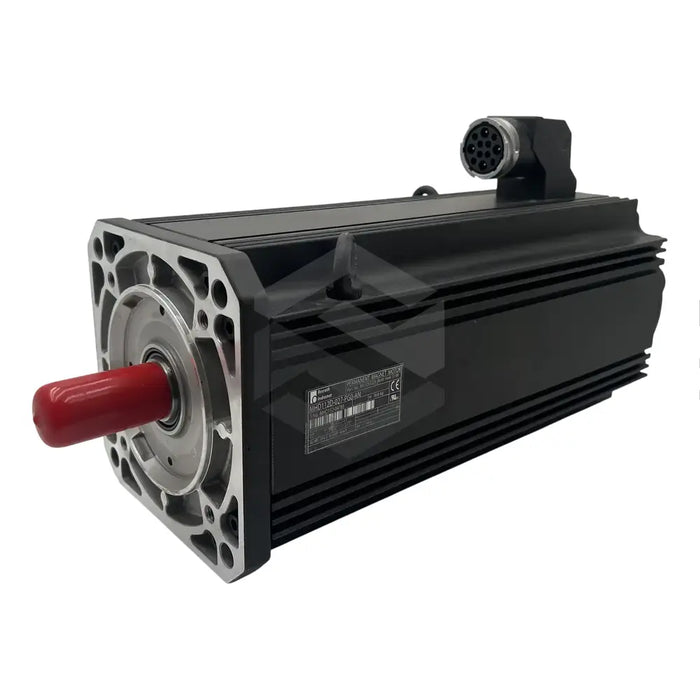

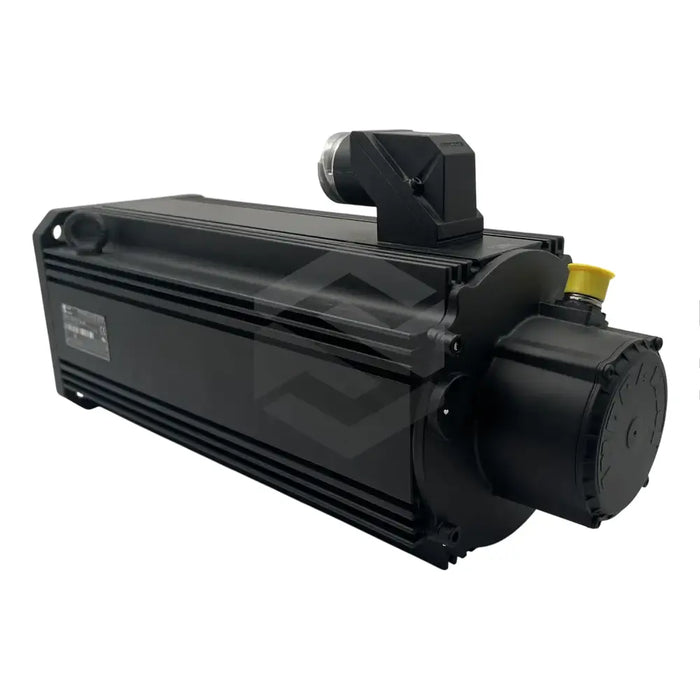

The R911283229 (MHD112D-027-PG0-AN), produced by Bosch Rexroth Indramat, is a notable product in the rapidly evolving motion control sector, utilized to improve productivity in automation. As part of the acclaimed MHD Synchronous Servo Motor series, it’s recognized for its impressive torque density and superior performance over a broad speed range, setting a new industry standard.
This motor is available in two self-cooled options, the 60K and 100K, and an externally cooled version that sports an air blower for forced convection. These motors, while operating at an optimal speed of 2,000 RPM, offer a rated torque of 27.3Nm, 41.5Nm, and 59.2Nm, and a performance of 6.9kW, 11.3kW, and 15.2kW respectively. The motors can be operated at a speed of up to 3,000 RPM for customized output. Enhanced by a brushless design and premium grease-lubricated bearings, these motors require minimum maintenance. With an IP65 protection grade, they are also designed to withstand harsh environments, including dust and high-pressure water jets. Its built-in digital servo feedback mechanism, equipped with an absolute multiturn encoder that archives data from the last 4,096 revolutions, allows for fine-tuned output control.
