series image of R911283437

R911283437

by Bosch Rexroth Indramat
$5,886.00 - $5,886.00
$5,886.00
$5,886.00 - $5,886.00
$5,886.00
In Stock, Ships 1 - 3 Days

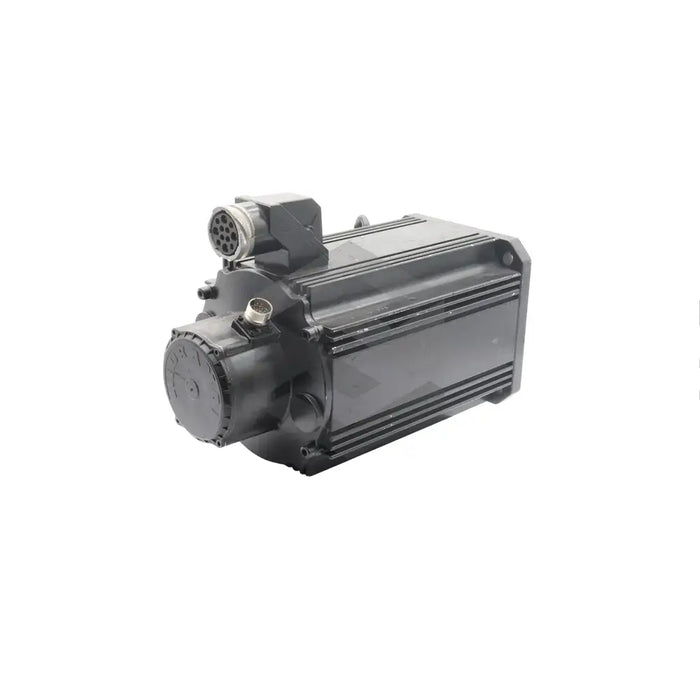

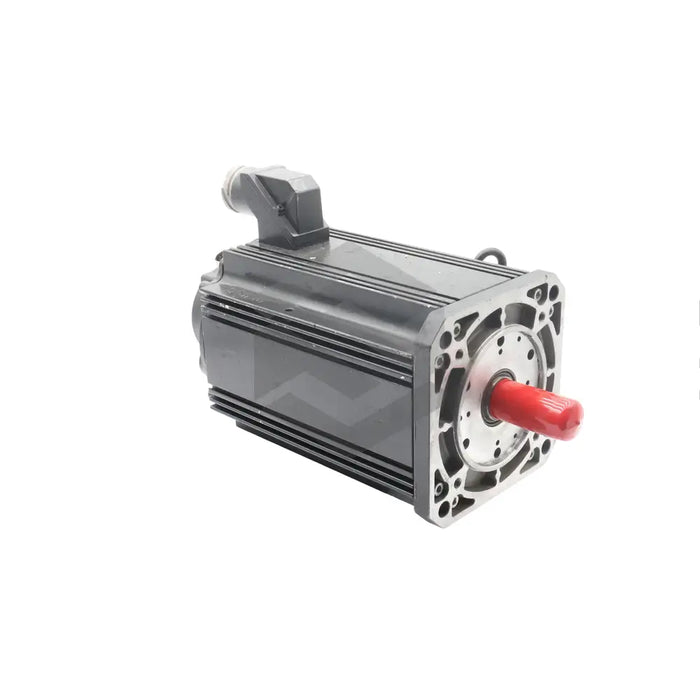

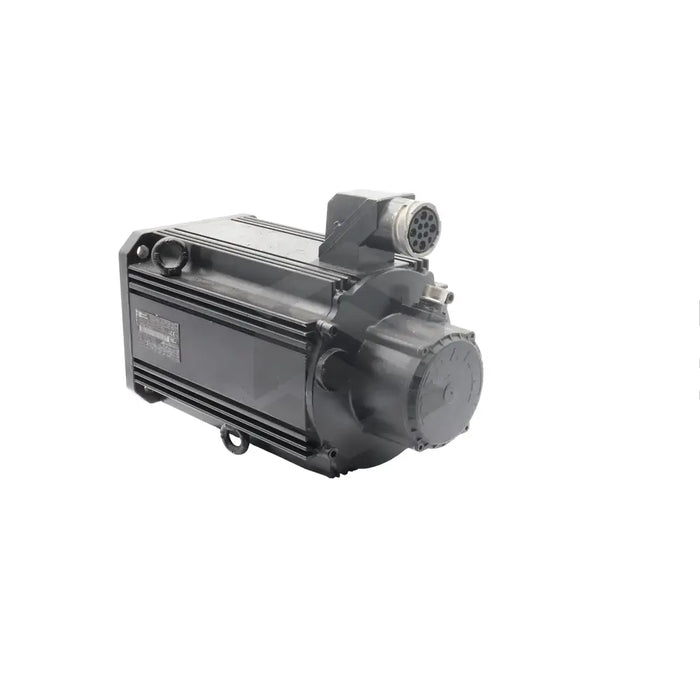

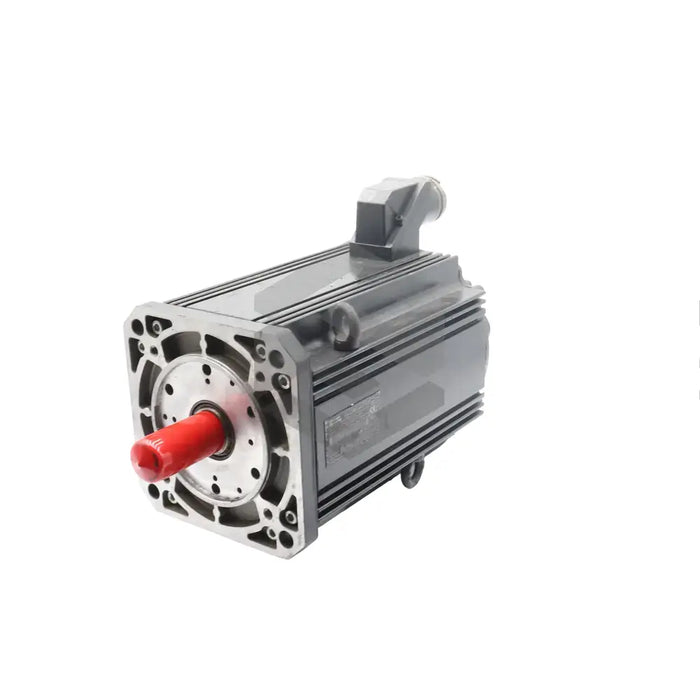

The R911283437 (MHD112B-048-NP1-BN) is a Bosch Rexroth Indramat synchronous motor that features a power connection on the B side and a DIN 6885-1-compliant keyway shaft equipped with a sealing ring. The motor possesses a 22Nm holding brake and boasts Class F insulation as per DIN VDE 0530 standards. This unit operates at a rated frequency of 187Hz and speed of 2,800min-1, with a winding inductivity of 3.1mH and a winding resistance of 0.22 Ohm at 20°C. This brushless motor promises minimum heat dissipation and maintenance-free operation. This synchronous motor facilitates easy attachment of additional components due to its uniquely designed flange. Built with special magnet materials, the motor is lightweight and has low inertia. It carries a torque constant of 0.88Nm/A at 20°C. The operator must be suitably qualified to operate, ground, and switch this equipment on and off according to technical safety regulations. Its motor brake is controlled directly by the drive controller and it includes a 3.6 x 10-4 moment of inertia holding brake that weighs 1.1kg. The motor has a voltage constant of 80V/1,000min-1, measures 375mm in length overall, and requires a properly-seated O-ring when the motor flange socket covers are mounted with a sealing air connector.
30 Day Warranty
Technical Specifications
  • Winding Inductivity: 3.1mH
  • Shaft Design: Keyway in compliance with DIN 6885-1
  • Product ID: MHD112B-048-NP1-BN
  • Air Connector Mounting Requirement: O-rings must be properly seated when motor flange socket covers are mounted.
  • Overall Length: 375mm

Get In Contact

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products, all warranties are with Servo Supplier and not the manufacturer.
