R911283439

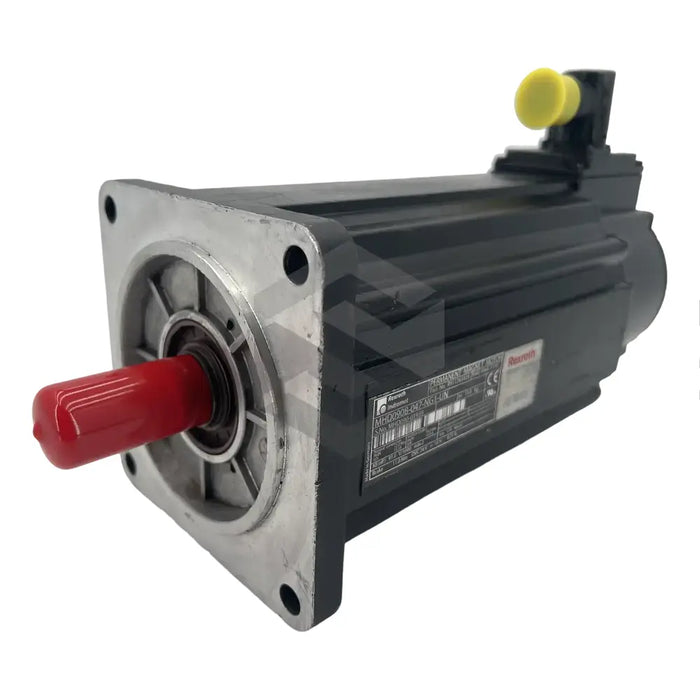

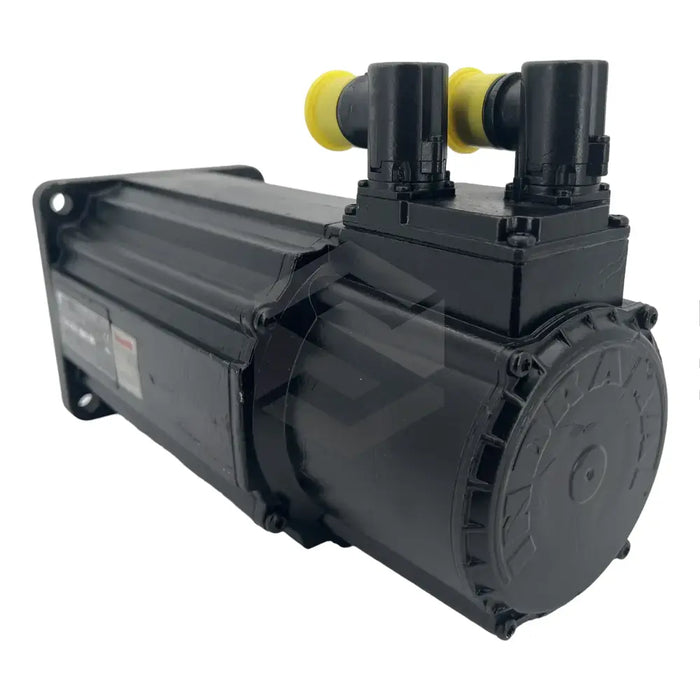

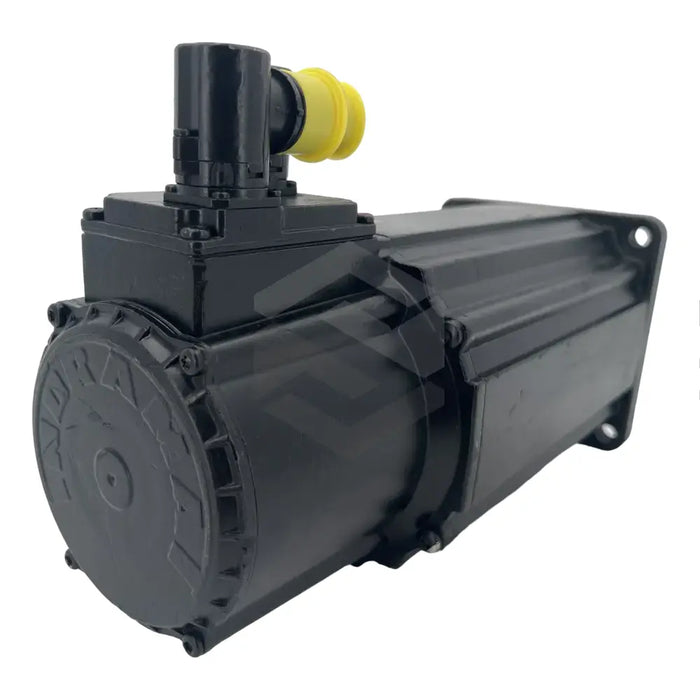

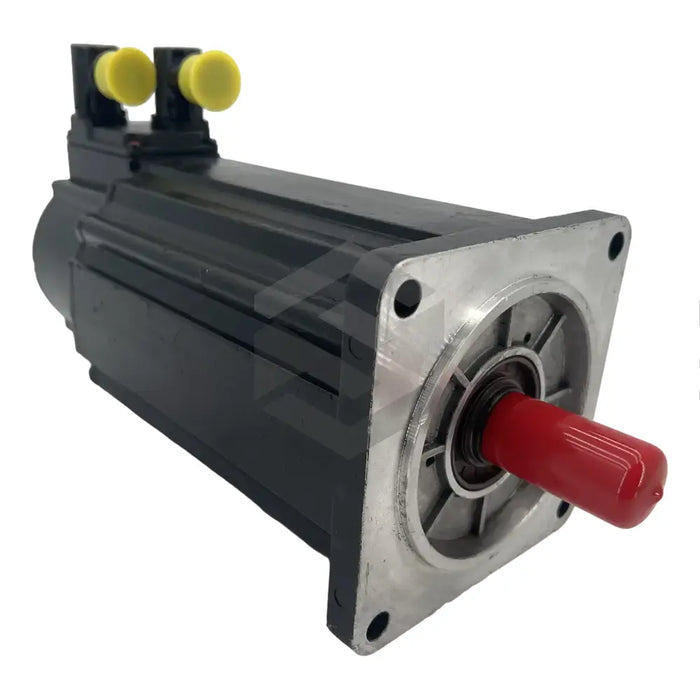

The R911283439 (MHD090B-047-NG1-UN) is a premium quality servo motor, designed and developed by world-renowned manufacturer Bosch Rexroth Indramat. Renowned as a global leader in the development of servo motors, drive converters, and operator terminals, Bosch Rexroth provides robust and cost-effective motion control solutions.
This model falls under the MHD servo motor series, known for their high-efficiency operation in diverse industries such as packaging machines, machine tools, handling systems, and robotics. It delivers a rated speed of 3000 rpm, a rated current of 4.7 A, frequency of 200 Hz, and voltage of 354 V, producing 7.2 Nm of rated torque. This motor incorporates a holding brake for maintaining servo axis in deceleration phases. It is critical to note that only qualified personnel should operate this motor. In peak operation, it allows a maximum current of 49.5 A with a winding inductivity of 15.5 mH. In terms of additional features, the servo motor is equipped with digital servo feedback, 4 pole pairs, and offers a maximum speed of 5000 rpm.
Designed to provide a blend of efficiency with a compact form factor, this 14.0 kg motor offers IP65 dust and water protection and can be cooled naturally or with additional fan assistance. The added convenience of 270-degree rotatable connectors offers enhanced flexibility for electrical connections and minimizes hassle during installations. It is distributed worldwide leveraging the trusted supply chain of Servo Supplier.
