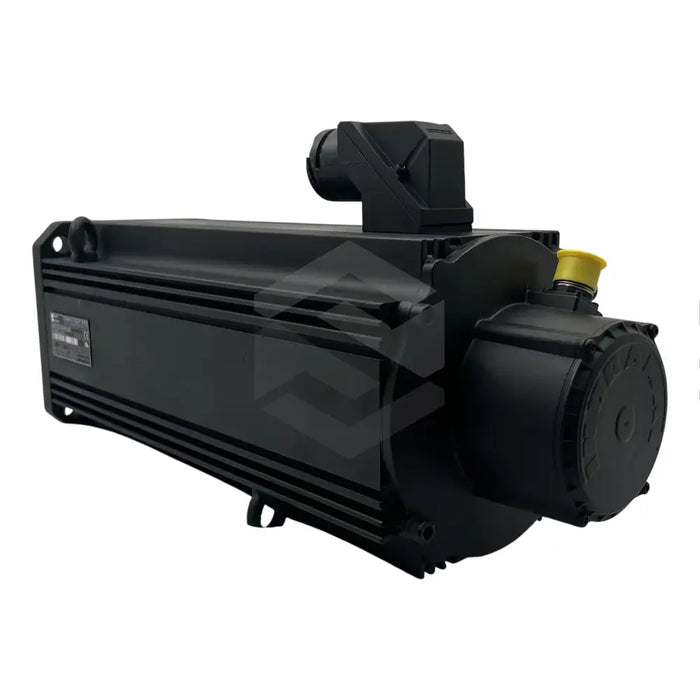

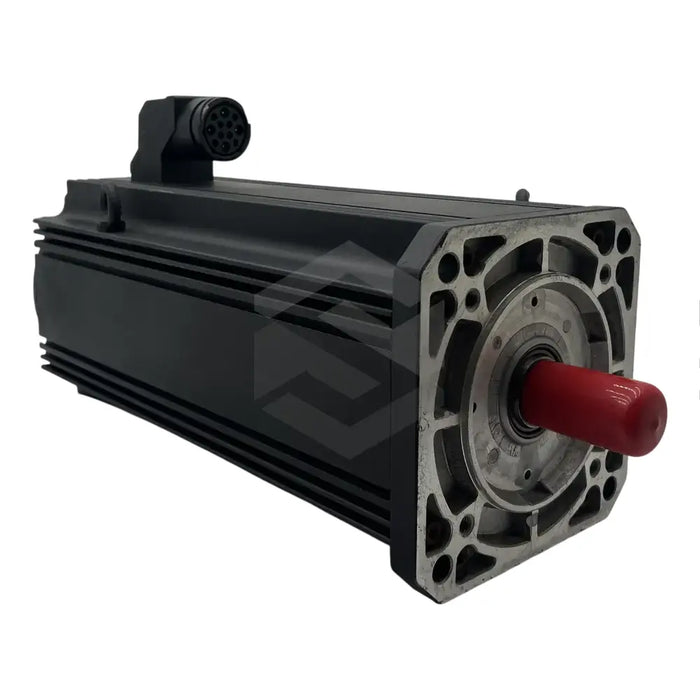

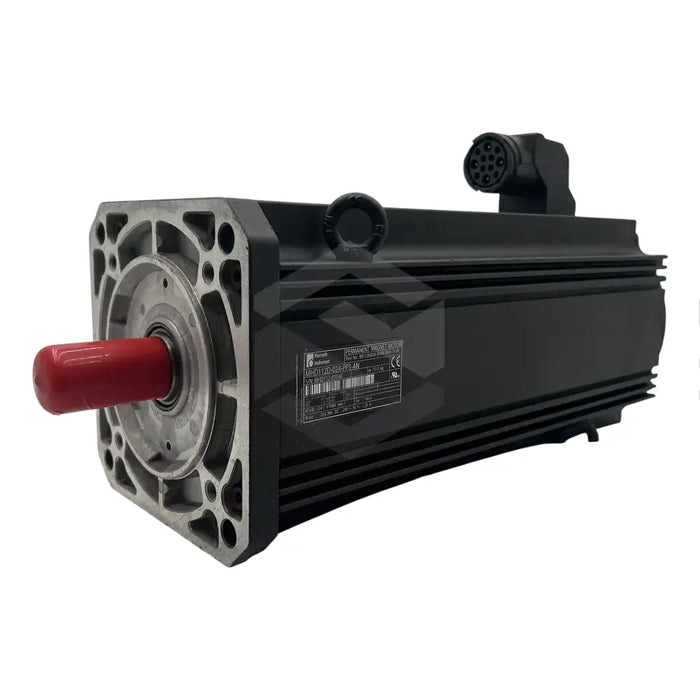

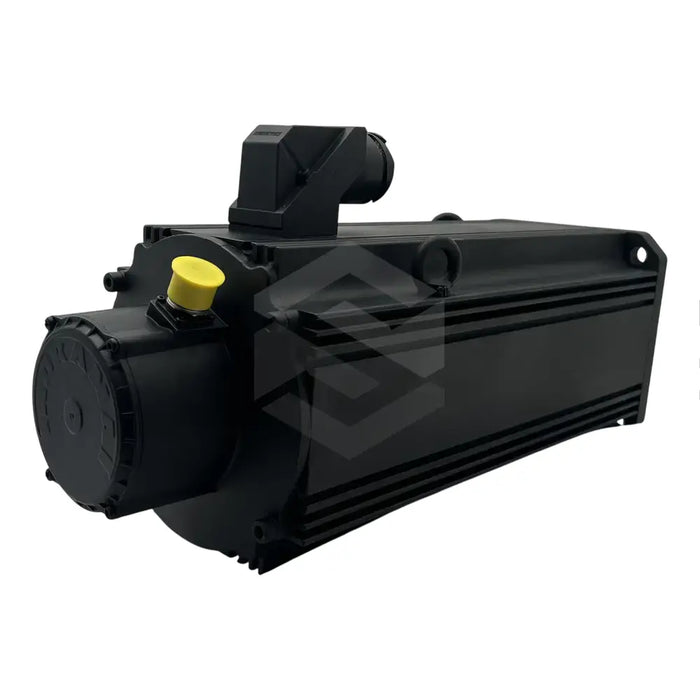

R911284056

Original price $3,898.13 - Original price $3,898.13
Original price
$3,898.13
$3,898.13 - $3,898.13
Current price $3,898.13
Available, Shipping Varies
The R911284056 (MHD112D-024-PP3-AN), a superior servo motor developed by Bosch Rexroth Indramat, is ideally designed for intensive industrial and commercial operations. It pair with a drive controller that not only controls the speed and position of the motor but also supplies it with electrical power. Additionally, the motor possesses an encoder, a special sensor that calculates speed and position, and sends this information to the controller via a feedback cable linked to a connector on the motor housing. With a flange mount design that features four holes for secure screw fixing, the R911284056 (MHD112D-024-PP3-AN) has a flange of 192 millimeters. Sporting specs such as a 130 millimeter centering diameter, a 526 millimeter long housing, and a 32 millimeter diameter motor shaft with 60 millimeters extending outside the housing, this motor comes with a key and a 3.8 kilogram, 70 Nm rated holding brake. Other variants of MHD112D motor have available 22 Nm and 32 Nm holding brakes. It has an in-built multiturn encoder that assures digital servo feedback. The design of the R911284056 (MHD112D-024-PP3-AN) is compatible with natural convention and surface cooling methods while its optimum performance temperature is between 0 to 40 degrees Celsius at an operational altitude range of 0 to 1000 meters. Operation outside these parameters may lead to a reduction in output current.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Operating Temperature: 0 to 40 degrees Celsius
  • Model: MHD112D-024-PP3-AN
  • Shaft Length outside housing: 60 millimeters
