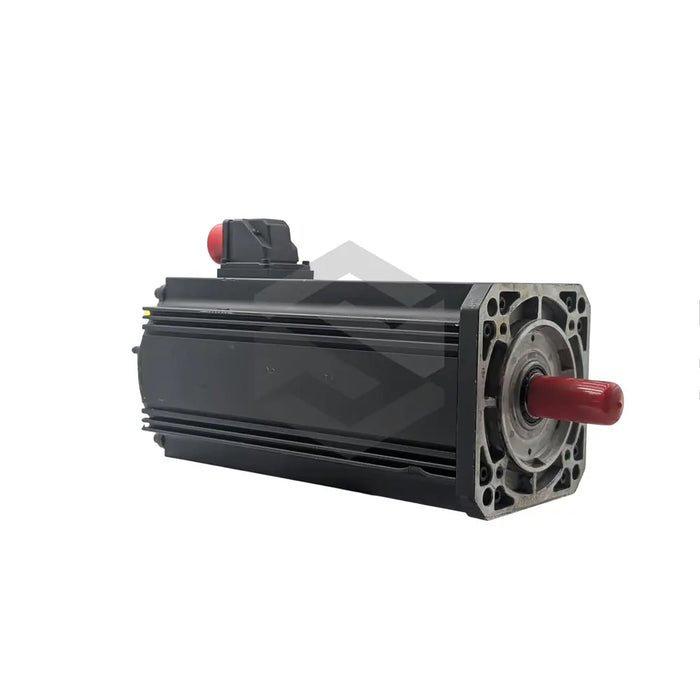

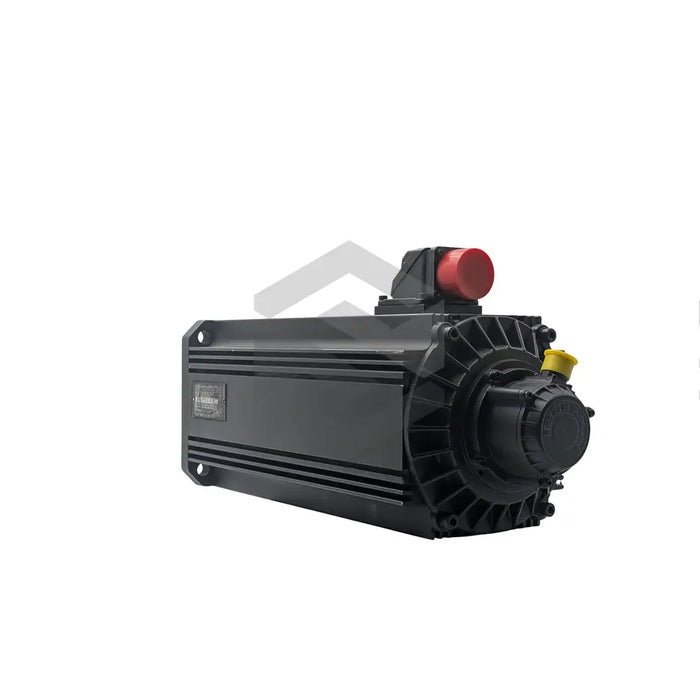

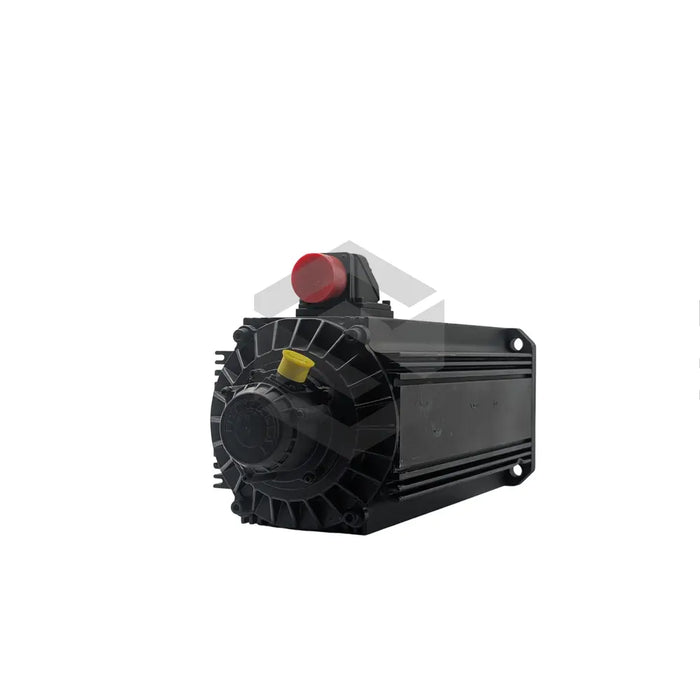

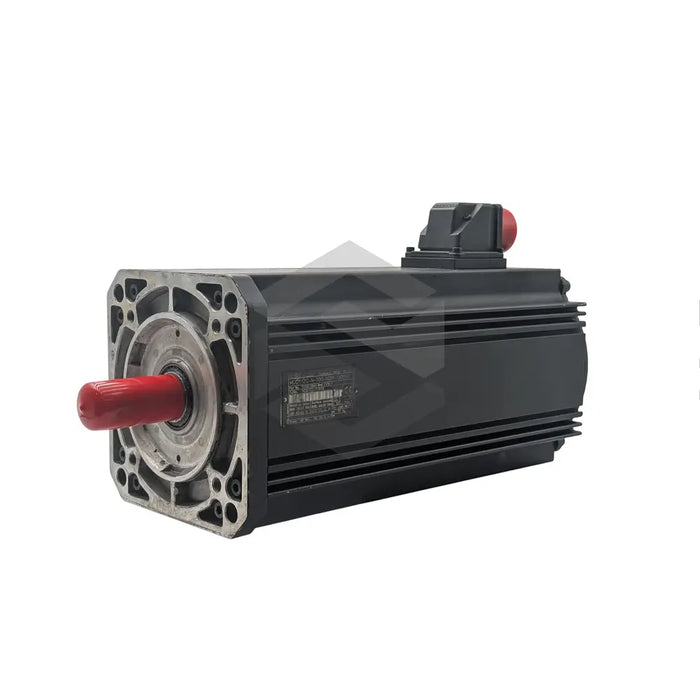

R911285062
The R911285062 (MHD112C-024-NP0-AN), a Bosch Rexroth Indramat manufactured synchronous servo motor, is designed for industrial applications including machine tools, automation, and paper machines. The motor features a brushless, maintenance-free design with grease-lubricated bearings. With capabilities both for natural convection or surface cooling systems, the motor has a characteristic speed of 2000 RPM. With natural convection, it delivers continuous torque at a standstill of 38 Nm and current of 26.6 Amps. However, with surface cooling, it offers a continuous torque and current at standstill of 57 Nm and 39.9 Amps respectively. The motor's rated speed for all operating conditions is 2500 RPM, with a maximum speed of 4000 RPM.
The R911285062 (MHD112C-024-NP0-AN), designed to perform optimally at ambient temperatures ranging from 0 to 45 degrees Celsius, showcases an IP65 rated housing that offers complete dust protection. With a flange size of 192 mm and a centering diameter of 130 mm, this motor is designed for attachment via four holes on the motor flange and includes a power connector on side A. The motor also supports digital servo feedback and possesses a key and sealing ring on the main motor shaft to guard against contaminants. Although the motor comes without a holding brake, this can be obtained separately if required. Regular inspections of the sealing ring is advisable to maintain its effectiveness.
