R911285077

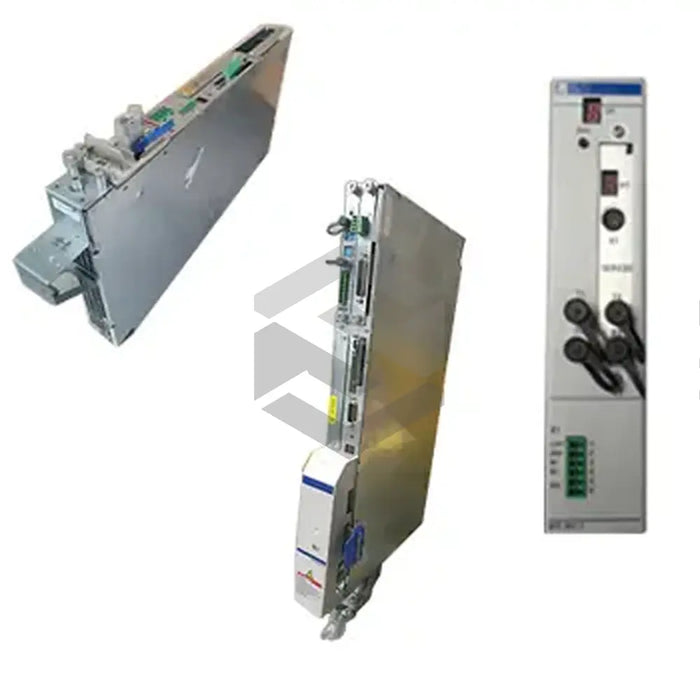

The Bosch Rexroth Indramat R911285077 (MTS-R01.2-M2-NN-FW) SPS module is a key component within the MTC200-R power CNC controller. This module, designed for mechanical operation of the RECO unit, functions through the support of a built-in coprocessor. The firmware required for this module needs to be ordered separately. The R911285077 (MTS-R01.2-M2-NN-FW) SPS module intricately links with other NC and SPS modules through an internal local bus on an adapter card, creating a robust solution for machine tool operations.
The R911285077 (MTS-R01.2-M2-NN-FW) provides an optional module interface which can be customized with either a serial interface module, INTERBUS, or a PROFIBUS-DP master/slave module. The module uses RS232 or RS485 for communication with external peripherals. This rack-mounted module, enclosed in an RMB02.2 rack, guards it against external contaminants. With data loss risk if left unused for over six months, the module has a current consumption and heat loss max of 450mA/12.6W, weighs 1kg, and measures 41.5 x 192 x 156. It is built to IP 20 standards and operates in temperatures between 0 to 50 degrees, while it can be stored between -25 to 70 degrees with relative humidity levels of up to 75% (operation) and 95% during transport.
