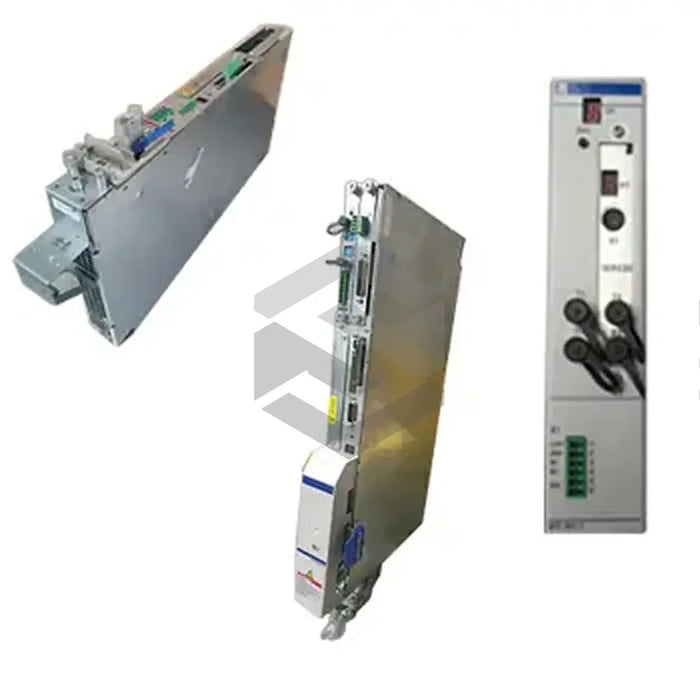

R911285088
The R911285088 (MTS-R02.2-M2-B1-S4-NN-FW) is a top-quality SPS module, created by leading motion control technologies producer, Bosch Rexroth Indramat. This compact unit, part of the robust MTC200-R, operates with the CNC controller and is installed in an RMB02.2 rack, allowing for effective data transfer. Comprising three separate connection points for optional interfaces, it can support PROFIBUS-DP slave and master modules, a serial interface, and an INTERBUS master module. The unit's RS485 formatted programming interfaces facilitate communication with other SPS modules in the network.
The R911285088 (MTS-R02.2-M2-B1-S4-NN-FW)'s operational conditions include a relative humidity of 75% and a maximum installation elevation of 1500m. In terms of storage, it manages a relative humidity of 95% and can be transported up to 3500m. Expect a power loss of 19.6W, a 700mA current consumption, and a weight of 1.65kg. The unit features a mechanical design for the RECO unit, an SPS mode with a coprocessor, and a B1-S4-NN configuration. It should be noted that if the unit is stored for more than six months, users risk losing retentive data. Please be aware that firmware is an additional purchase and does not come included with the unit.
