series image of R911285103

R911285103

by Bosch Rexroth Indramat
$27,287.32 - $27,287.32
$27,287.32
$27,287.32 - $27,287.32
$27,287.32
In Stock, Ships 3 - 5 Days

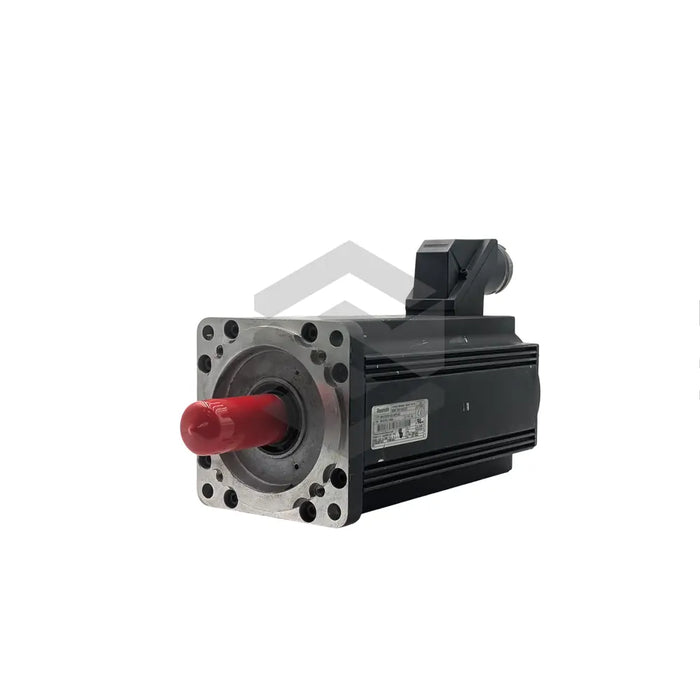

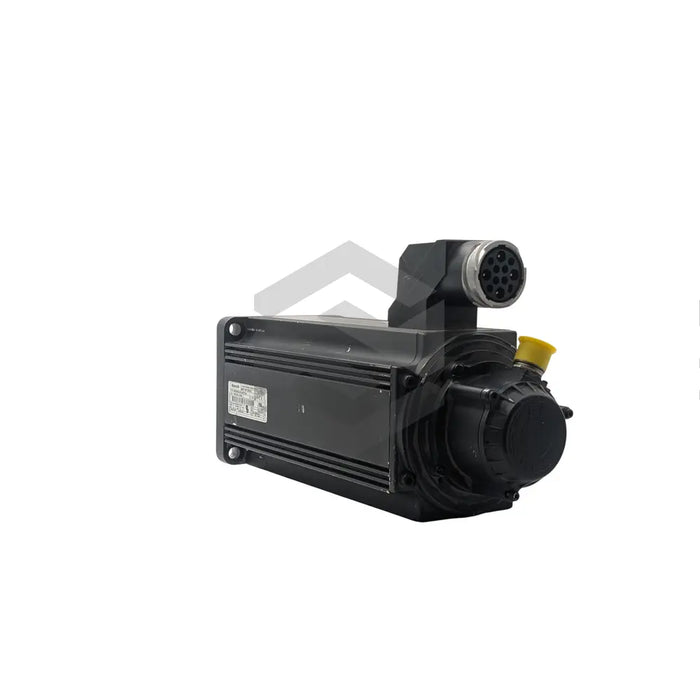

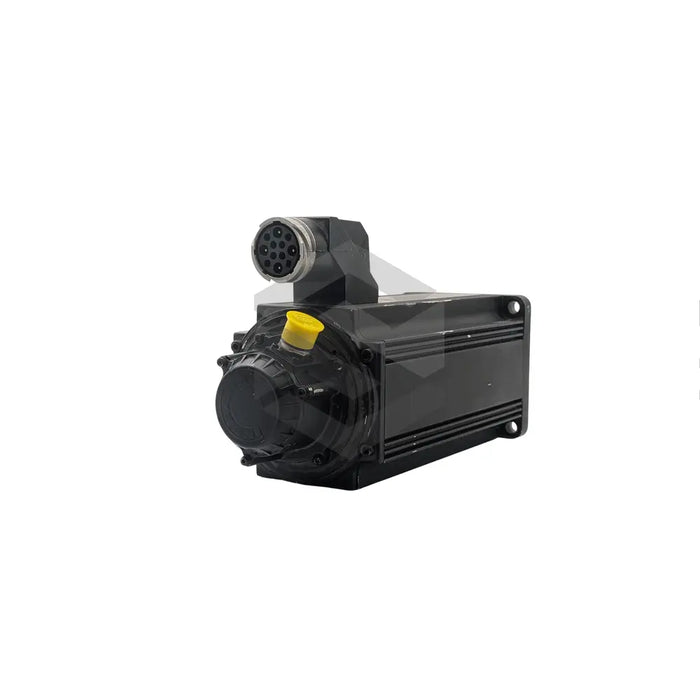

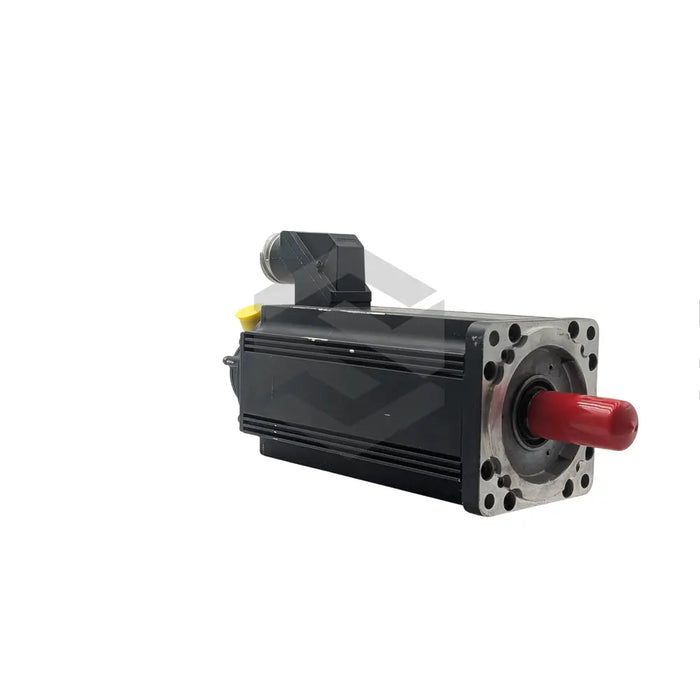

The R911285103 (MHD093B-035-NG0-LN) is a top-tier synchronous motor manufactured by the globally recognized Bosch Rexroth Indramat. Known for their cutting-edge motion control technology, Bosch Rexroth Indramat produces affordable and sustainable motor products, the pinnacle of which is the R911285103 (MHD093B-035-NG0-LN). This model delivers outstanding precision and high torque, even under heavy load conditions. The innovative design features a left-side power connector that enables a 350 – 396 V power connection with the supply unit, and operations are seamlessly managed by digital intelligent drive controllers. This motor utilizes a liquid cooling system to combat heat generated from continuous operation, using water as a cooling agent with a flow rate of 1.3 l/min. This coolant system dispels 900 W of heat, with the inlet temperature of the coolant ideally kept between 0 to +40 degree Celsius to ensure optimal performance. The motor is capable of producing continuous torque of 33.3 Nm while consuming a continuous current of 24.3 A. Ensure you mount the R911285103 (MHD093B-035-NG0-LN) flat surface for optimal operation and always refer to the MHD documentation for operation conditions. Procuring this commendable motor is possible via trusted suppliers like Servo Supplier.
30 Day Warranty
Technical Specifications
  • Installation Requirements: Flat surface, free from dust and reactive elements
  • Coolant Flow Rate: 1.3 l/min
  • Heat Dissipation: 900 W
  • Manufacturer: Bosch Rexroth Indramat
  • Power Connector Position: Left-side
