R911285855
Original price
$3,506.40
-
Original price
$3,506.40
Original price
$3,506.40
$3,506.40
-
$3,506.40
Current price
$3,506.40

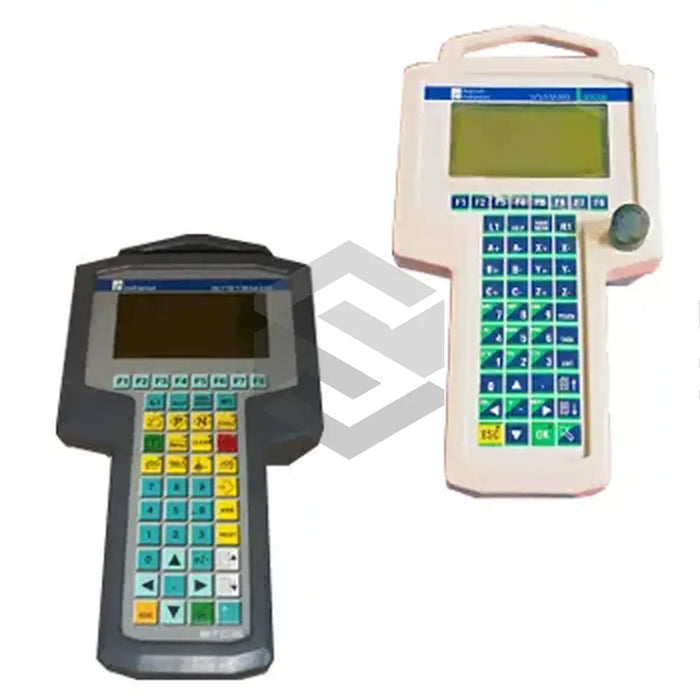

The Bosch Rexroth Indramat R911285855 (BTC06.2A-F-EN3-FW) is a cutting-edge manual control unit designed to offer an innovative solution for machine control. Compact yet robust, this portable device comes equipped with high-end features such as an RS232C and RS422A/RS485 interface, which facilitates seamless interaction with MST/P, CLC, DKC, MTS/R, and CLM series Indramat controllers. Notably, it features the innovative Screen Manager software to develop bespoke applications while streamlining the process of accessing the variables of compatible controller families. However, it's crucial to note that the firmware must be procured separately. This unit also incorporates a 40-key slide strip keyboard, an emergency stop, a three-state dual circuit activation button, and a frontline 240x128 pixel graphic LCD display with LED backlight in a shock-proof casing that carries an IP 65 protection rating.
The R911285855 (BTC06.2A-F-EN3-FW) introduces a hardware setup that combines a 68000 series micro-controller, 1 MB of flash memory, and 256 KB of RAM. The 24V DC input ensures optimal device performance within an operational voltage range of 20 to 30 Volts DC, while the current consumption is capped at 400 milliamps. It exhibits a 17-pin main connector that unites distinct functionalities - power input, serial connections, ground connection, the emergency stop, and live-main switch outputs. The handy 48-key polyester film keyboard, 1.3 kg lightweight design, and the 315 x 170 x 57 mm compact profile add to portability. This unit can efficiently operate within a temperature range of 0 to 55 degrees Celsius and can be stored safely between -20 to 70 degrees Celsius.
![](http://servosupplier.com/cdn/shop/t/3/assets/verified-user-shield-check.svg.med.png?v=160087244090755286241706801379)
30 Day Warranty
Technical Specifications
