R911286190

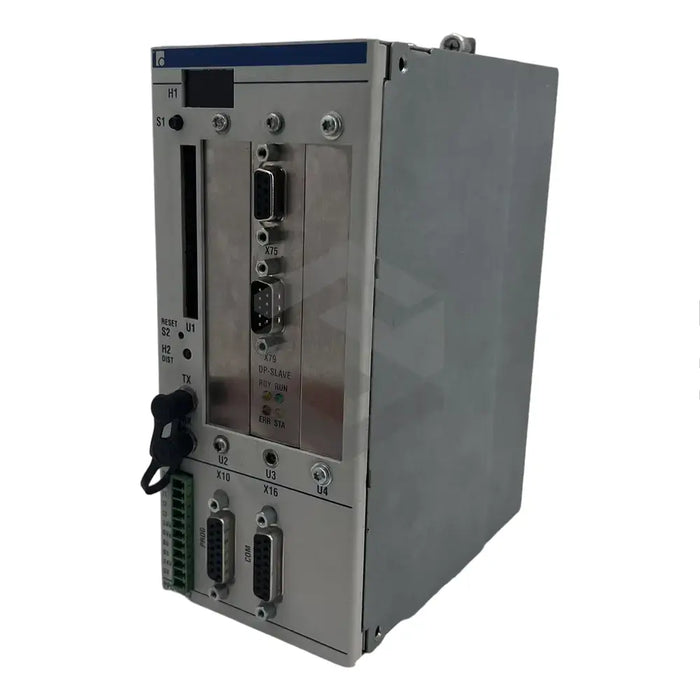

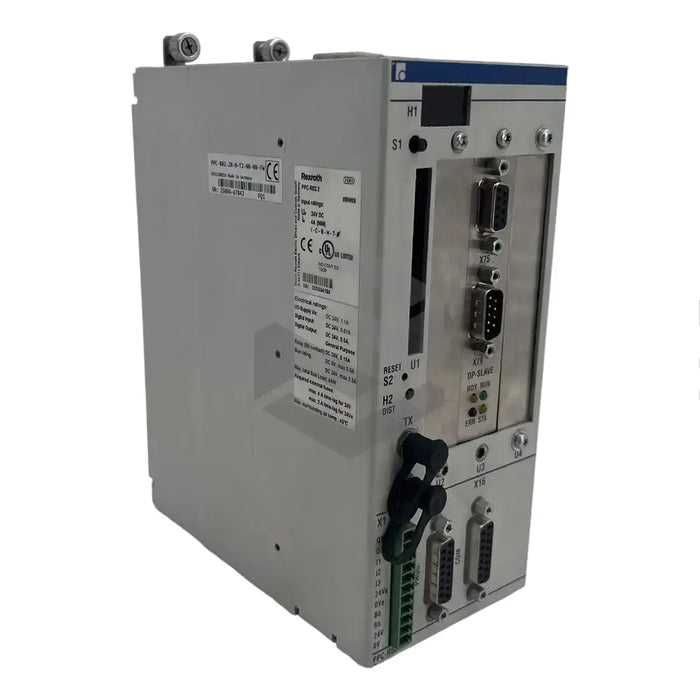

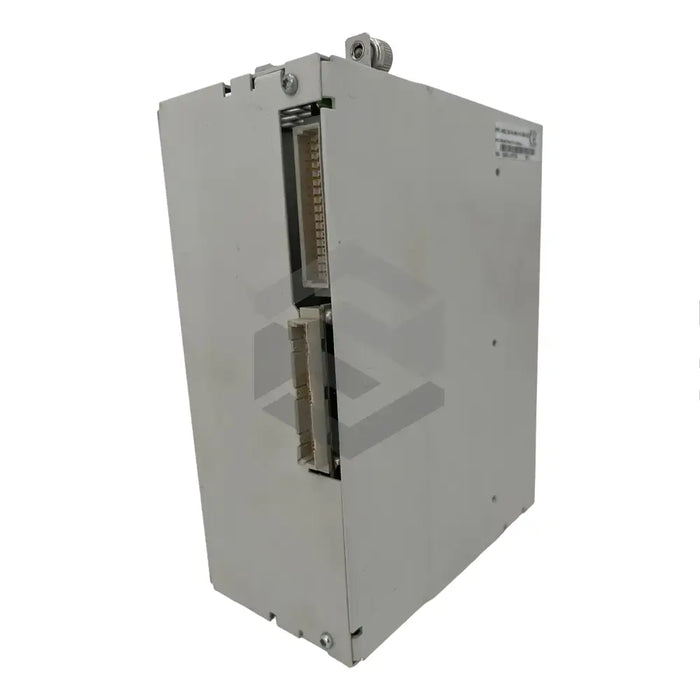

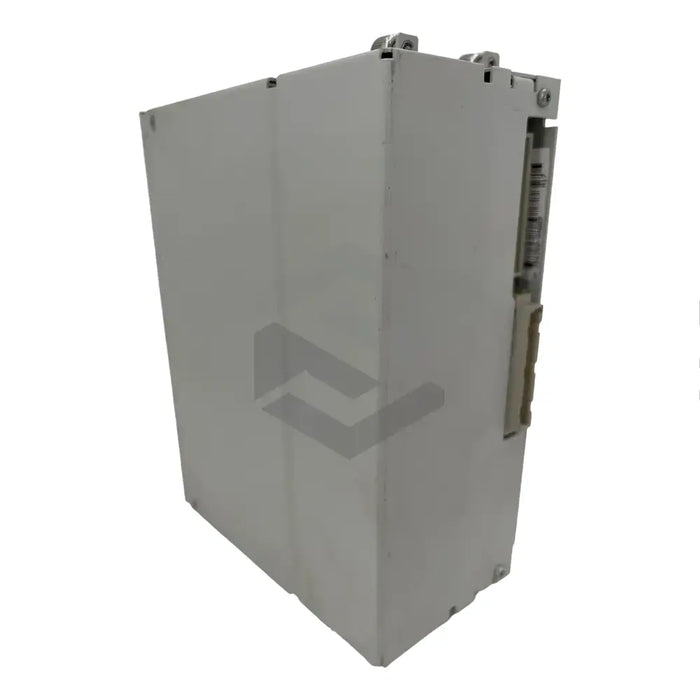

The Bosch Rexroth Indramat R911286190 (PPC-R02.2N-N-NN-P2-NN-FW) is an advanced controller device designed for managing servo drives. It has the capacity to control up to 40 of Bosch Rexroth's intelligent digital drives when combined with the VisualMotion Toolkit PC software. However, for optimal performance, additional sensors and actors may be required. The R911286190 (PPC-R02.2N-N-NN-P2-NN-FW) is a standalone controller that must be installed in the leftmost slot (marked as 00) of your RMB rack. In this configuration, it directly regulates the backplane communications of the input and output modules of the attached LocalReco 02.
The VisualMotion control, used alongside the R911286190 (PPC-R02.2N-N-NN-P2-NN-FW), is compatible with Rexroth's digital servo drives, including the EcoDrive 03 and Diax 04 models. Communications between the drive and controller are facilitated by the SERCOS interface, an international standard for real-time communication in digital servo drives. This system is supported by the VisualMotion GPP 10 firmware, which offers both coordinated and non-coordinated multi-axis controls. The combination of the software and device enables a broad range of robotics and motion control applications. Furthermore, with a built-in TCP/IP stack, it can even transmit data across the internet or a network using OPC and DDE servers, when integrated with the VisualMotion Toolkit.
