R911286193

Original price $17,832.66 - Original price $17,832.66
Original price
$17,832.66
$17,832.66 - $17,832.66
Current price $17,832.66
Available, Shipping Varies
Request a quote

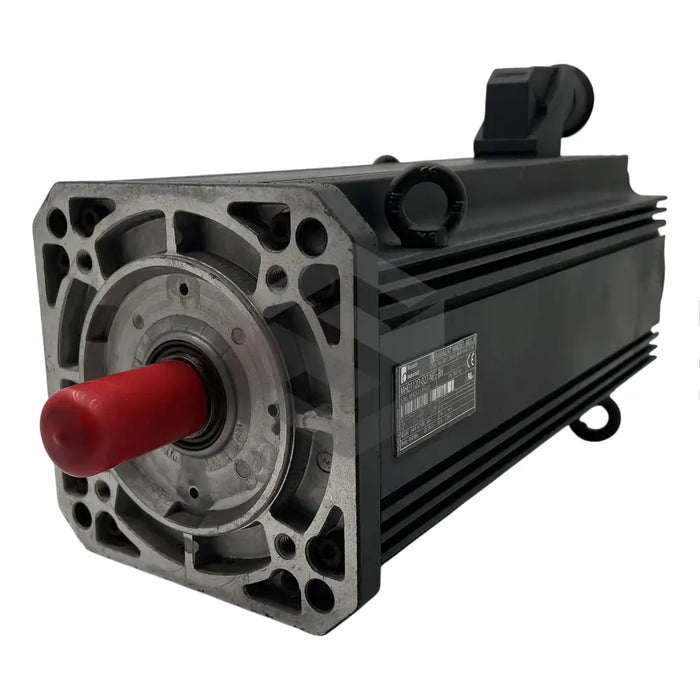

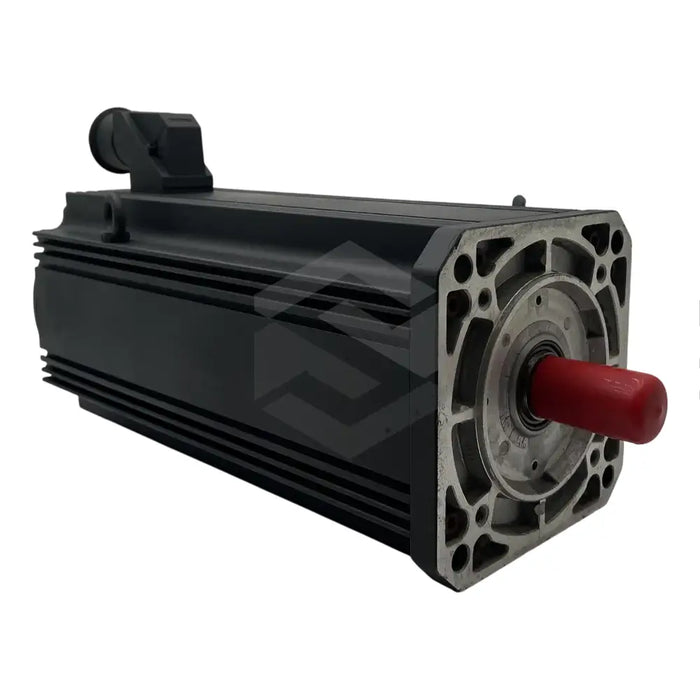

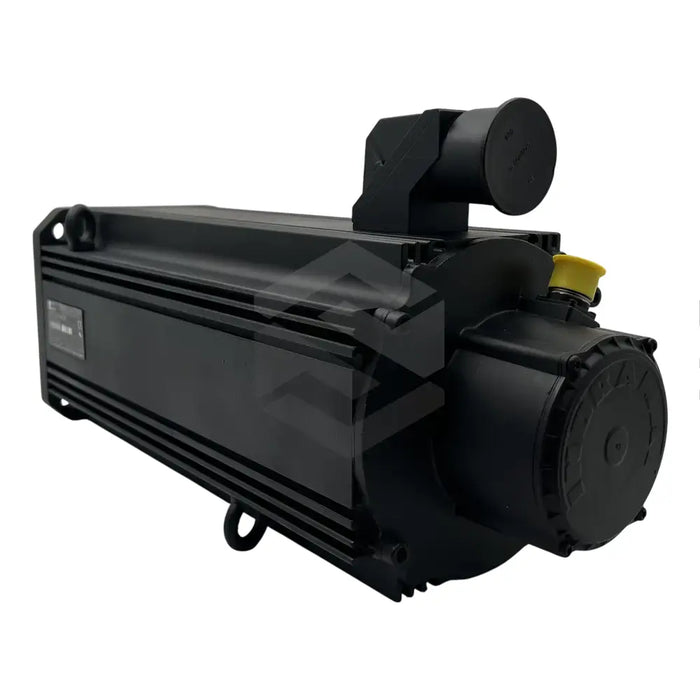

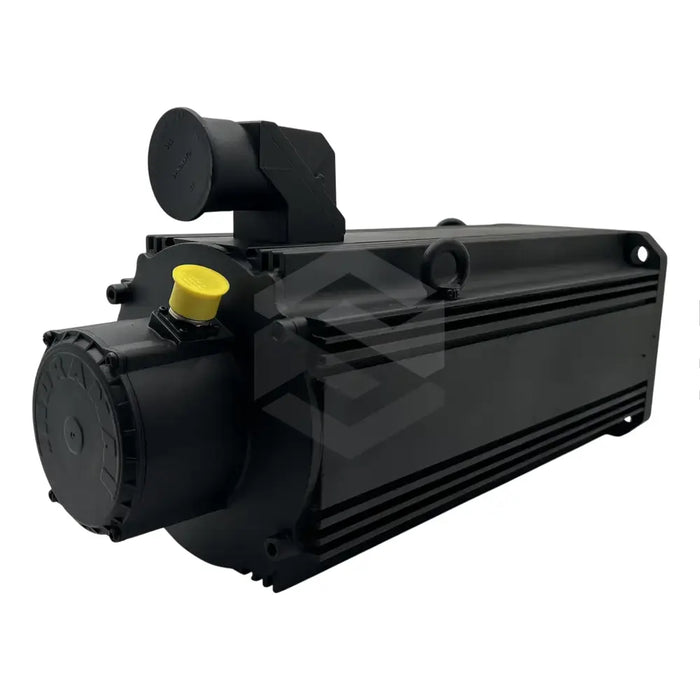

The R911286193 (MHD112D-027-NP3-BN), a product from Bosch Rexroth Indramat, is innovatively designed to serve industries seeking automation solutions. Bosch Rexroth's commitment to delivering superior quality is reflected in their range of products, including this model, which offers synchronous motors, frequency converters, inverter modules, and controllers. The R911286193 (MHD112D-027-NP3-BN) model boasts a 3.8 kg holding brake with a holding torque of 70 Nm and a nominal current of 1.29 A. It provides swift connection and disconnection times of 53 and 97 milliseconds respectively. Incorporated into the model is a multiturn absolute encoder and a keyed output shaft for efficient torque transmission. Also, it features a sealing ring for added durability. At a standstill, the MHD112D synchronous motor generates continuous torque of 48 Nm with a moderate continuous current consumption of 31.6 A during natural cooling and at a temperature of 60 K. This unit, with a protection rating of IP68 and an insulation class F, offers maximum adaptability, even in hazardous conditions. With a top speed of 3000 revolutions per minute, it can generate up to 187.0 Nm. Common uses include food processing and material handling equipment. This model has a variable thermal time constant of 90 or 40 minutes based on the cooling method used. It can generate a rated power of 15.2 kW at a rated speed of 2000 revolutions per minute and a rated frequency of 133 Hz.
30 Day Warranty
Technical Specifications
  • Rated Power: 15.2 kW
  • Model: MHD112D-027-NP3-BN
  • Continuous Torque: 48 Nm
  • Encoder Type: Multiturn Absolute Encoder
  • Output Shaft: Keys for torque transmission, Sealing ring
