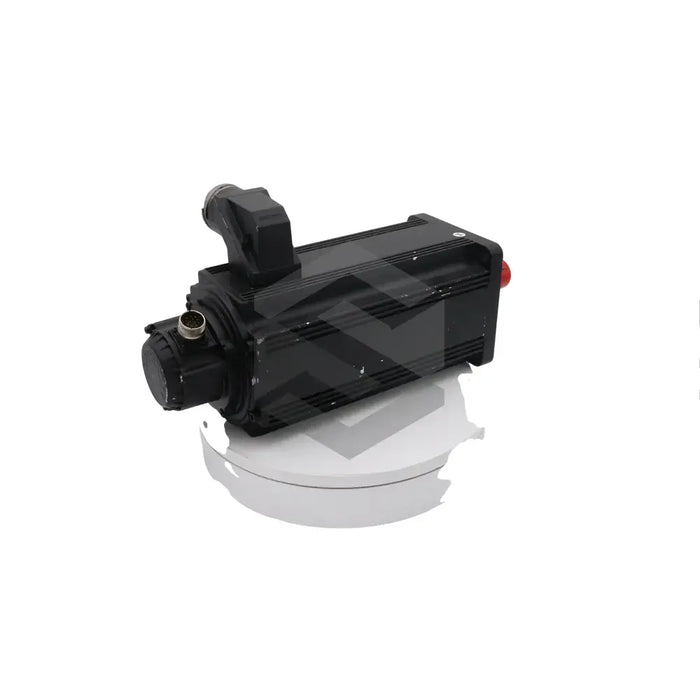

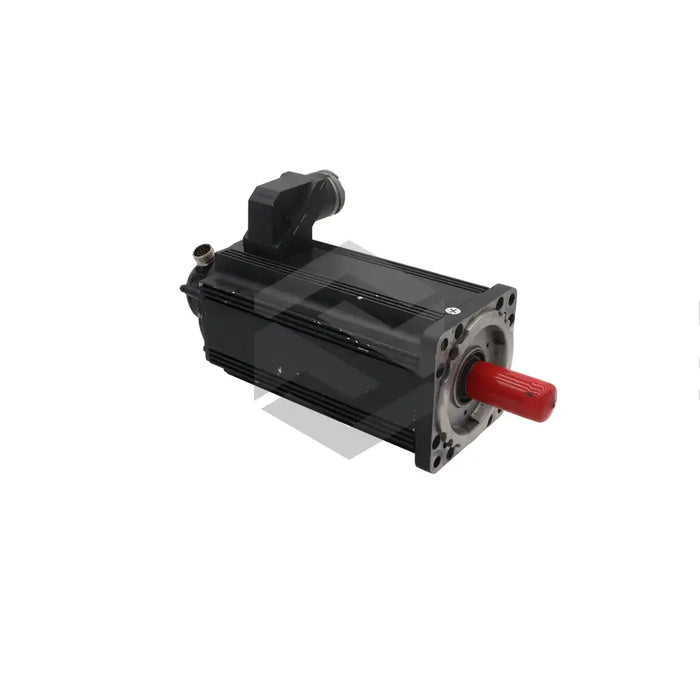

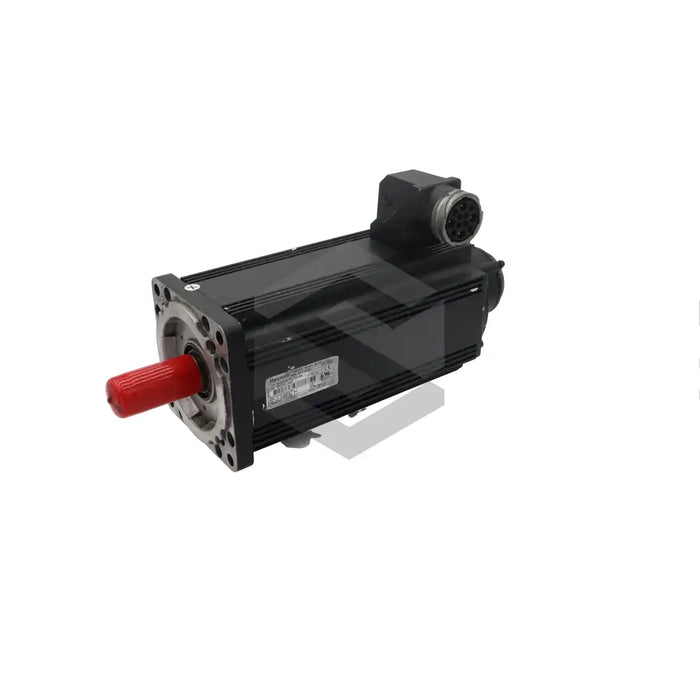

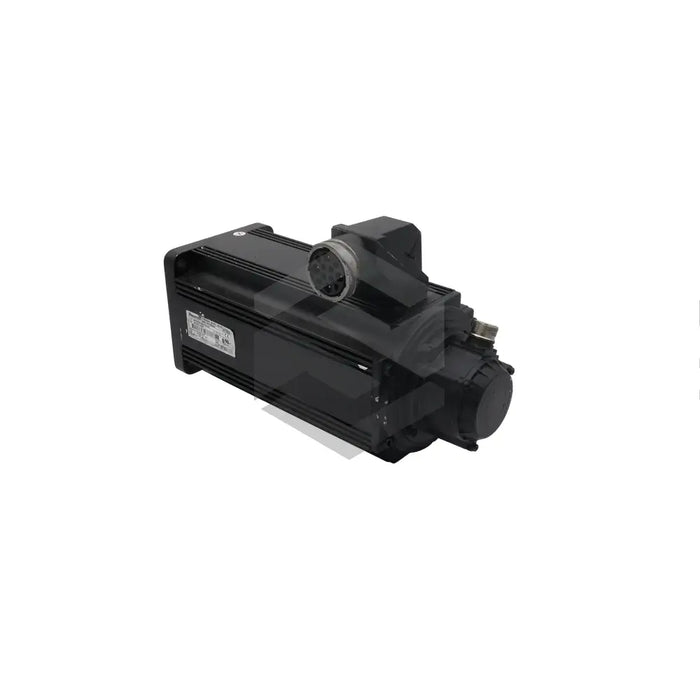

The R911286485 (MHD093B-035-NP1-LN) is a synchronous motor manufactured by Bosch Rexroth Indramat. This is a permanent-magnet motor that's highly adaptable, and can be efficiently integrated with other automated systems across numerous industries. This product is a type of Rexroth Indramat MHD synchronous motor, renowned for its economical and proficient automation solutions when paired with advanced, digitized drive control systems.
Rexroth MHD series servo motors, including the R911286485 (MHD093B-035-NP1-LN), are characterized by their unparalleled operational reliability and zero maintenance requirements. Brushless designs and grease-lubricated components provide these motors with an impressive lifespan. They offer superior performance and high dynamics, and they include an integrated motor temperature monitoring system for added safety. The R911286485 (MHD093B-035-NP1-LN) motor operates at a nominal speed of 2,500 revs/min and can reach a maximum speed of 4500 revs/min. It is characterized by a peak current of 15.0 Amps and a coil inductivity of 10.7 mH. It's rated output power is 9.3kW and the thermal time constant is 20 minutes. This model offers a maximum theoretical torque of 66 Nm and features an IP 65 protection rating, making it versatile across various applications. As per specifications, only accessories listed in the manual are to be used with the R911286485 (MHD093B-035-NP1-LN). Installation of unidentified modules and use of incorrect cabling is strongly discouraged.
30 Day Warranty
Technical Specifications
