R911286775

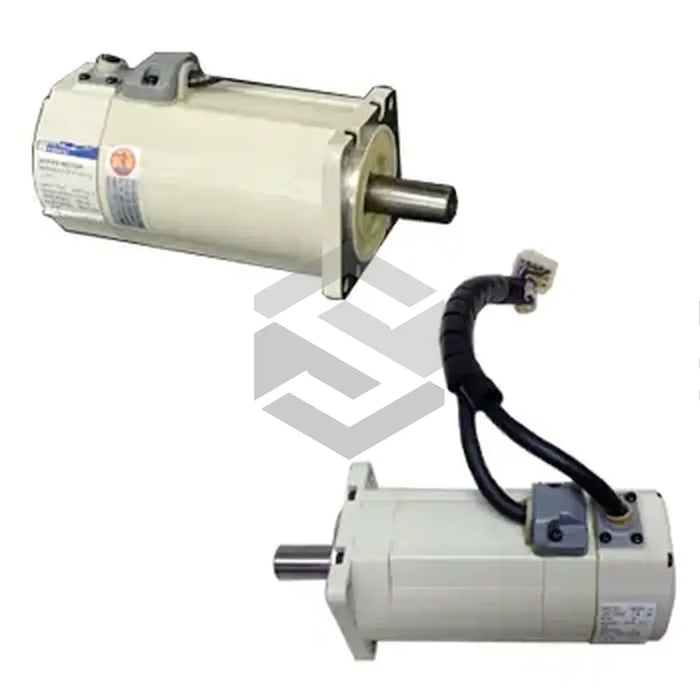

The R911286775 (MMD012A-030-EG1-CN), manufactured by industry leader, Bosch Rexroth Indramat, is a high-performance AC servo motor designed to operate seamlessly with Indramat's AC servo drivers. Built with meticulous attention to detail and stringent quality control, it delivers exceptional performance. Please note, exposure to high levels of external noise or static electricity may potentially induce malfunctions. Comprehensive safety measures should be adopted during installation to minimize the risk of errors or burnouts. The motor must always be paired with the designated AC servo driver for the best outcome.
On the technical front, the R911286775 (MMD012A-030-EG1-CN) is lightweight, weighing 0.73 kg with brake and 0.53 kg without. Its rotor moment of inertia is 0.067 X 10-4 kgm² with brake and 0.063 X 10-4 kgm² without. The motor operates at a nominal speed of 3000 min-1, achieving a maximum speed of 5000 min-1 and torque of 0.95 Nm. The servo motor's incremental encoder features 2500 impulses per minute. The R911286775 (MMD012A-030-EG1-CN) operates optimally at 85% humidity, and can be stored or transported at temperatures between -20 ºC and +80 ºC. Lastly, it can be installed at elevations up to 1000 meters above sea level.
