R911286922

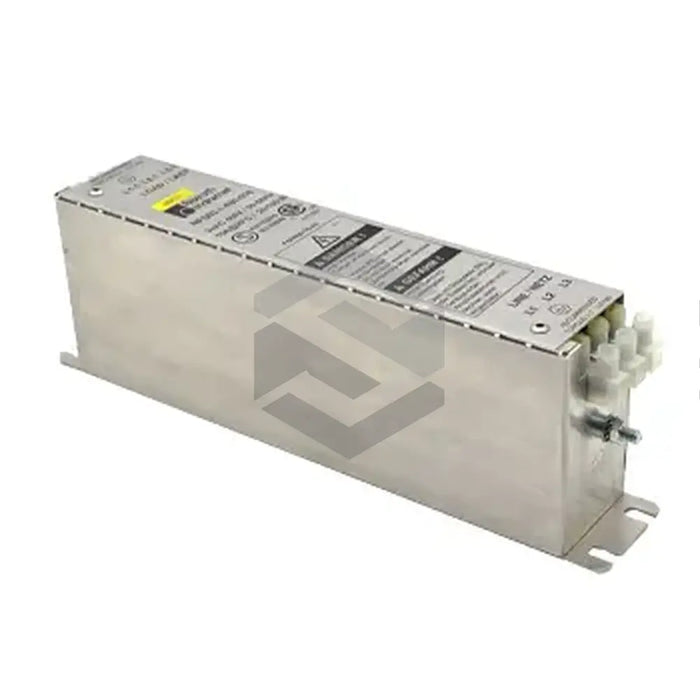

The Bosch Rexroth R911286922 (NFD03.1-480-075), a high-quality mains filter crafted by Rexroth Indramat, is specifically designed for compatibility with converters. This product, variant 1, operates on an alternate current with a rated nominal voltage of 480V. It possesses a rated continuous current of 75A and a power dissipation of 30.4W. The filter weighs just 3.5kg and measures 90mm in width, 240mm in height and 145mm in depth.
This advanced mains filter has been fine-tuned for compatibility with converters such as HCS02.1E-W0012, HCS02.1E-W0028, HCS02.1E-W0054, and HCS02.1E-W0070. This unit can be customized according to current ratings, the number of drives, and the length of motor cables. When operating on mains connected through outer conductors, an isolating transformer must be installed between the mains and the mains filter. Operating within a frequency range between 50 and 60 Hz, this filter ensures smooth operations that meet EN 61800-3, Category 3, and Second environment standards. By enhancing radio interference immunity and reducing electromagnetic noise, it helps commercial drive systems achieve industry standard EMC limits. It also keeps in check any current leakage from cable capacitors of three-phase drive controllers with a nominal voltage rating of up to 480V and 1 to 6 axes. Ambient operating temperatures should adhere to the manufacturer's guidelines.
