R911286966

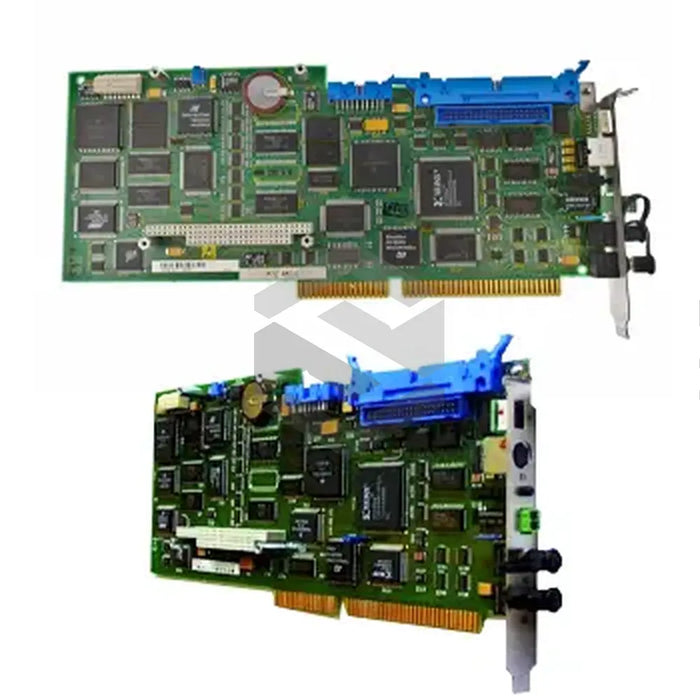

The R911286966 (MTC-R01.1-E1-NN-FW), developed by Bosch Rexroth Indramat, is a potent computer numeric controller incorporated in the industrial servo system to offer efficient control of industrial drives. Highly cost-efficient, it's ideal for industrial processing and manufacturing machines, and can manage up to 8 drive controllers concurrently. If integrated with supplemental modules with an added axis processor, it can support 8 more drive controllers. The communication with the numeric controller happens via a Serial Real Time Communication Interface that uses a fibre optic cable for data transfer. This controller can work with various machines such as printers, paper converting machines, and handling systems.
This industrial controller, R911286966 (MTC-R01.1-E1-NN-FW), comes with a built-in battery supplying the internal processor with power to store different data such as machine parameters, tool data, zero offsets and other vital information even if disconnected from the power supply. Nevertheless, data might be lost if stored for over six months without use. Weighing about 1 kilogram, the controller's dimensions are 83.7 mm in width, 195 mm in length and 152 mm in thickness, and pulls a maximum of 1.5 amperes from the main power supply during operation. With an integrated heatsink capable of discarding up to 14.3 watts of heat, it helps regulate the temperature. It should be placed at least 300 millimeters away from any inflammable device for safety.
