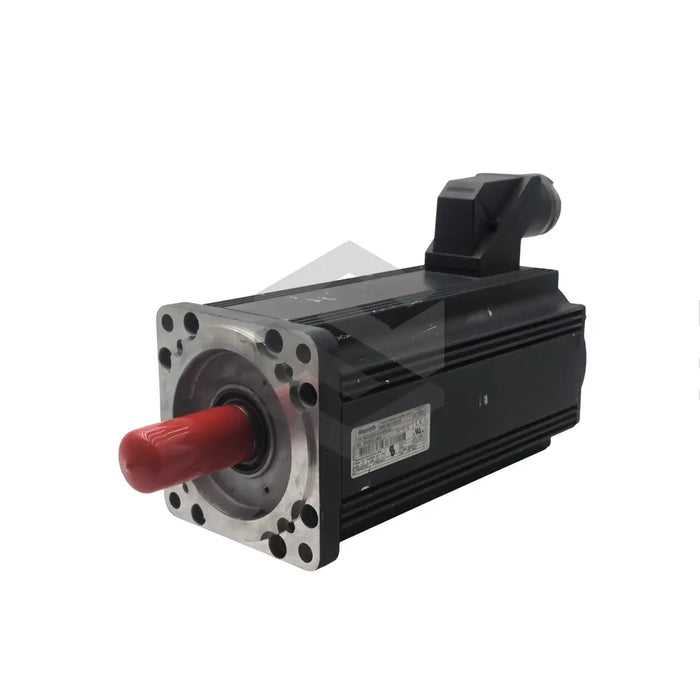

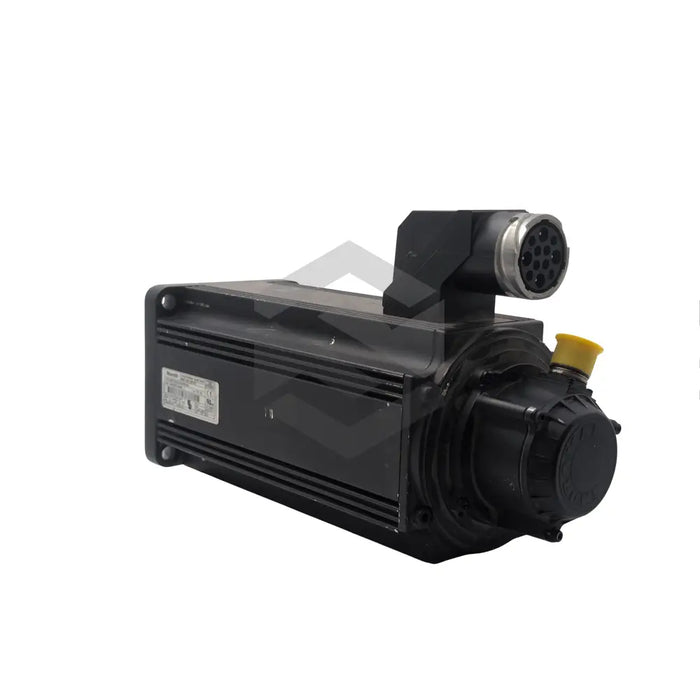

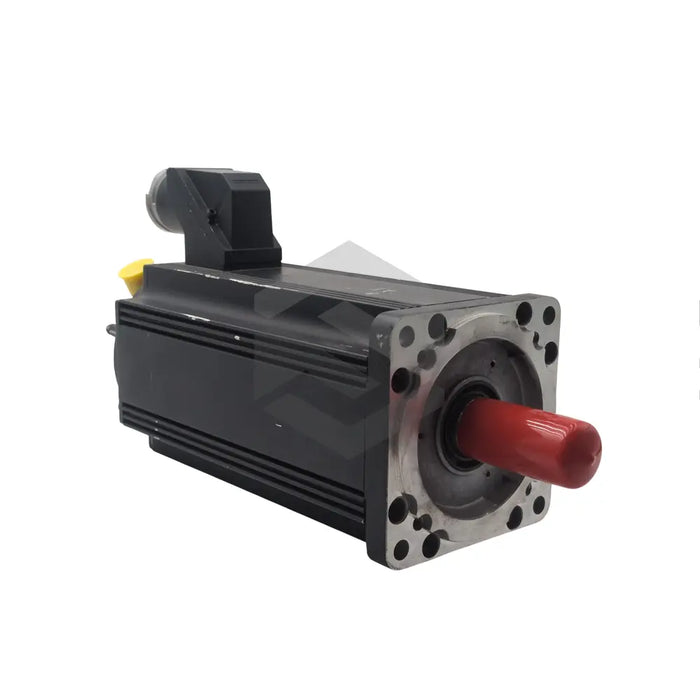

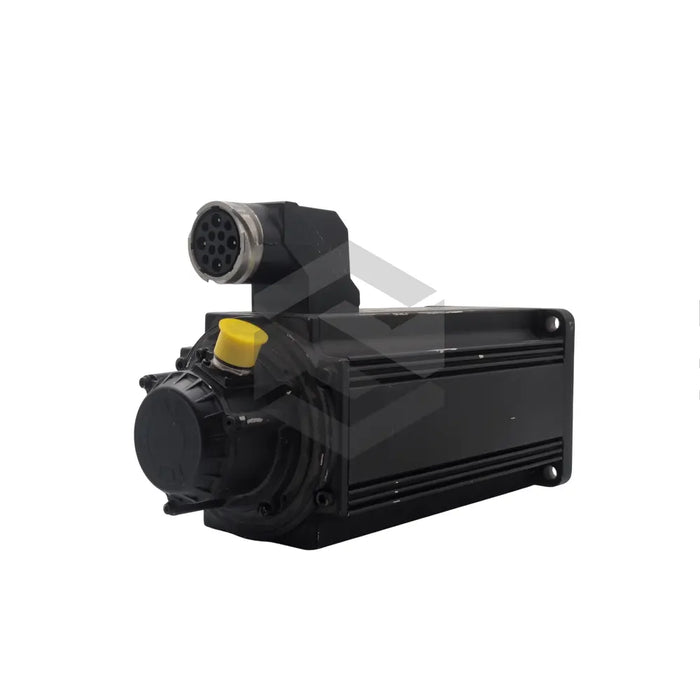

R911286976
The R911286976 (MHD093B-035-NG0-AA), crafted by Bosch Rexroth Indramat, is a high-quality component used for industrial automation requirements. This Bosch product specializes in certain automation equipment including synchronous motors, brake resistors, and supply modules. Designed for easy integration with standard industrial machinery, it offers straightforward cabling and can be configured in a variety of mounting positions like IMB5, IMV1, and IMV3.
This model features a B05 flange design, with a flange size of 140/150 mm and a centering diameter of 130mm. It houses Digital Servo feedback for relative positioning detection and a protective IP65 rated shield, offering extensive protection. The motor operates at a rated power of 2.7 – 6.6 kW at 2500 rpm, making it ideal for multiple motion-controlled systems including robotics and machine tools. Thermal management is achieved using temperature monitoring sensors and the provision of natural and surface cooling options. The motor consumes a standard current of 4.6 – 10.8 A to provide a continuous torque of 8.8 – 20.9 Nm at the nominal speed. It operates at an AC voltage input of 350 – 374 V with an operating frequency of 167 Hz. It performs optimally at 0 to +40 degrees Celsius and can function at a max height of 1000 meters above sea level.
