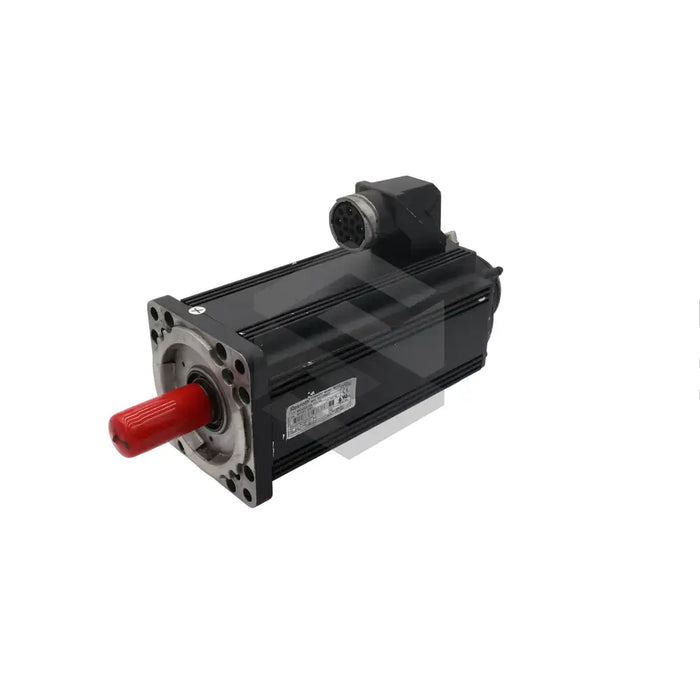

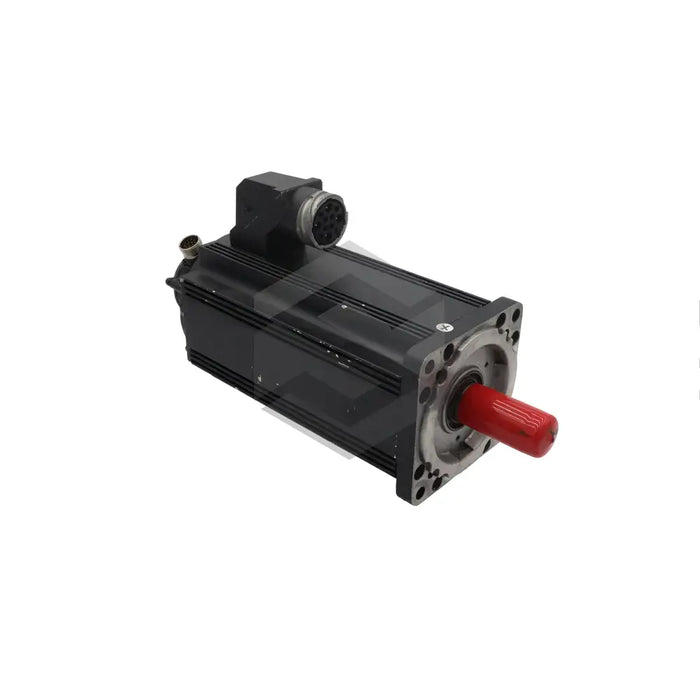

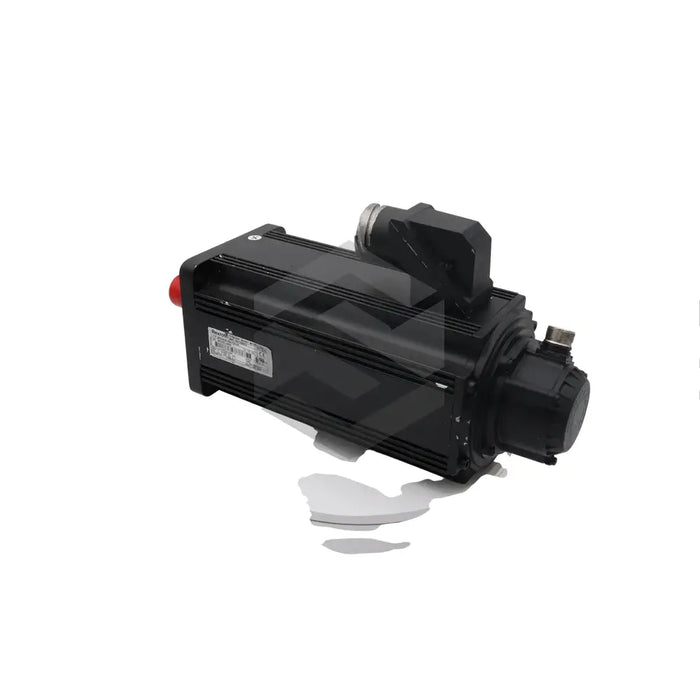

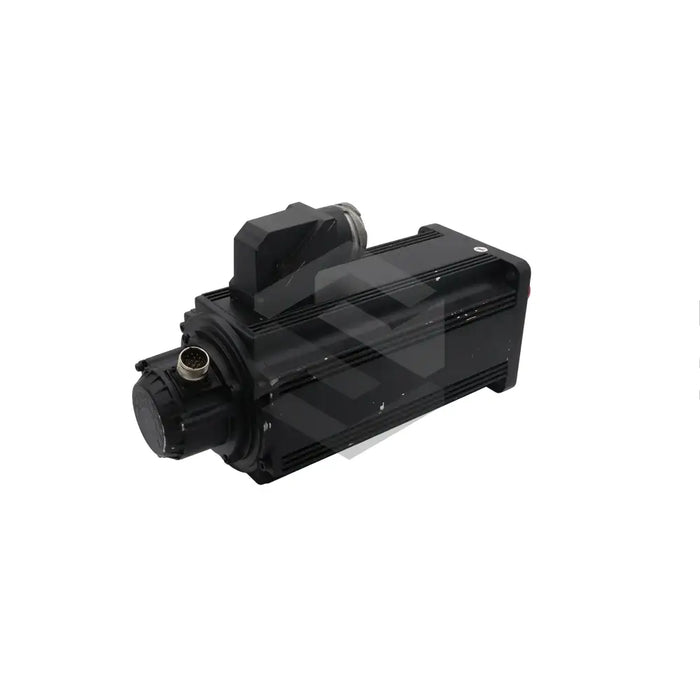

The Bosch Rexroth Indramat R911286979 (MHD093B-035-NP1-AN) is a state-of-the-art servo motor that incorporates digital servo feedback to allow Bosch drive controllers to regulate the motor's velocity and position in accordance with specific application needs. The motor incorporates additional features, including a holding brake, a shaft with key and sealing ring, and a power connector located on the motor's side A. Designed for natural convection or surface cooling, the motor's enclosure houses a holding brake weighing 1.1 kilograms and providing a holding torque of 22 Nm. The latter operates at a rated voltage and current of 24 Volts DC and 0.71 Amps, with connection and disconnection times of 25 and 50 milliseconds, respectively.
Options for MHD093B motors include holding brakes with 32 Nm torque. Based on the product type code, the motor has a frame size of 093 and a frame length of B. Key specifications include a 0.00255 kg m2 moment of inertia, a maximum theoretical torque of 66 Nm, a 60 minute time constant, a maximum speed of 4500 RPM and a weight of 19 kilograms. The motor's IP65 protection rating guards against dust and low-pressure water jets. It operates at temperatures between 0 to 40 degrees Celsius and at altitudes up to 1000 meters, but storage temperature can range from -20 to 80 degrees Celsius.
30 Day Warranty
