R911287309
Original price
$8,074.82
-
Original price
$8,074.82
Original price
$8,074.82
$8,074.82
-
$8,074.82
Current price
$8,074.82

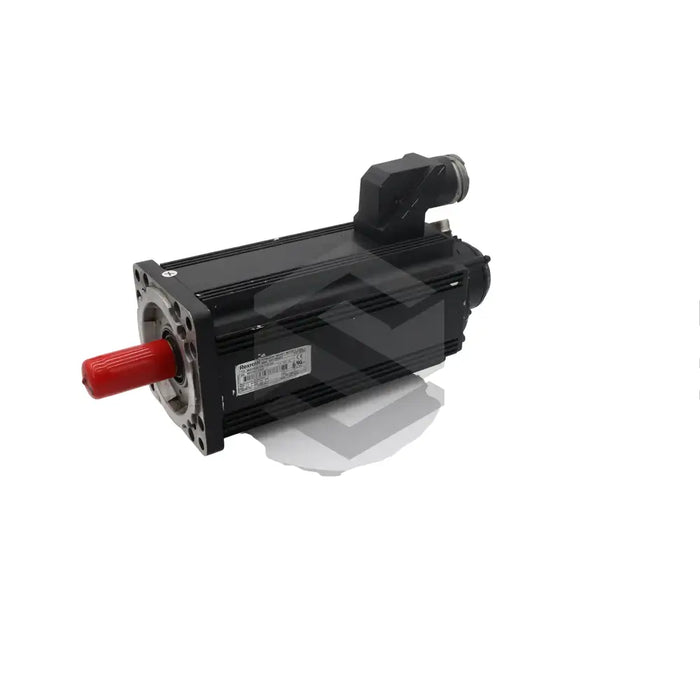

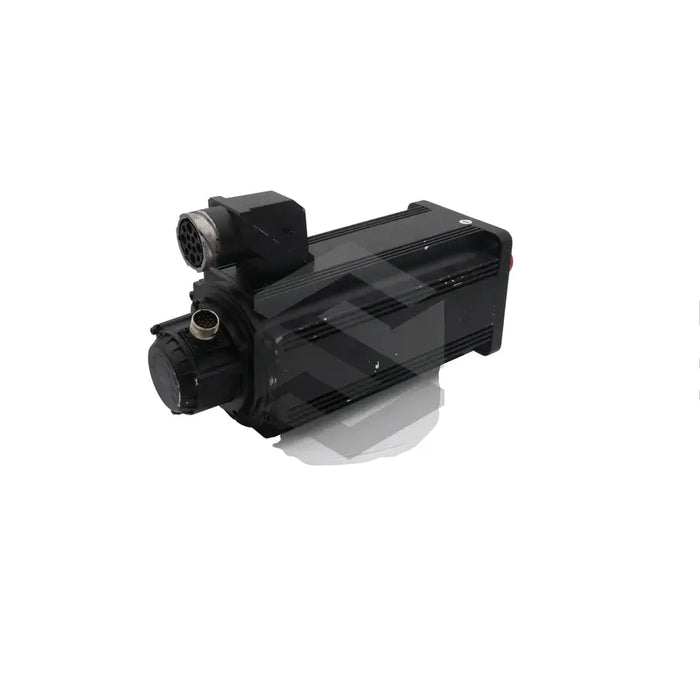

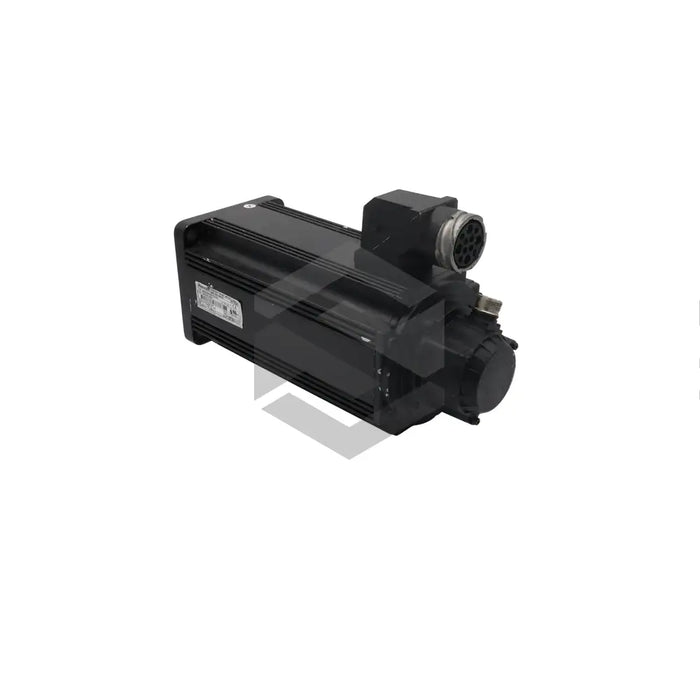

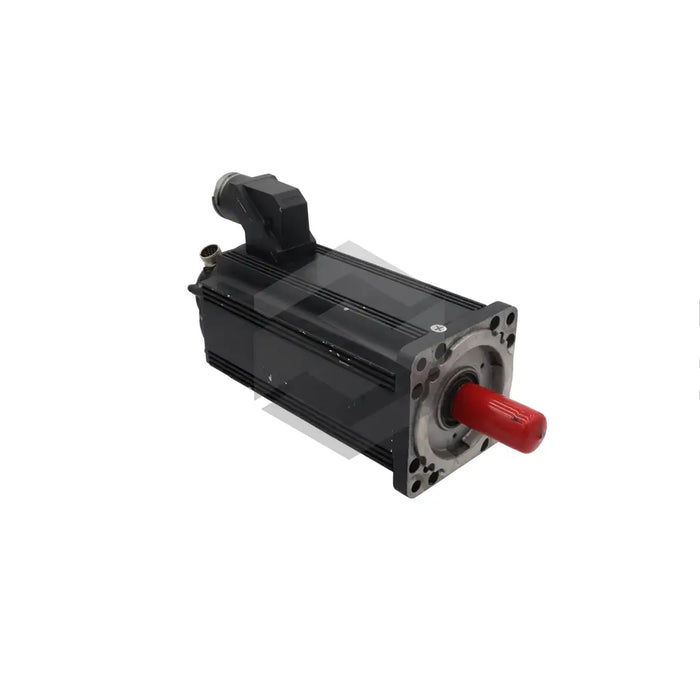

The Bosch Rexroth Indramat R911287309 (MHD093B-035-PG1-BA) synchronous motor is especially engineered for handling and automation systems. Designed with a maintenance-free approach, this device features brushless technology and grease-lubricated bearings. It can be easily fixed into a machine via a DIN 42948 compliant flange and can be mounted in any preferred position. The motor is incorporated with an integrated multi-turn absolute encoder providing digital servo feedback. Adhering to DIN VDE 0530 Part 1 specifications, it accommodates Class F insulation and weighs 19kg.
This motor’s bearings are designed to withstand high radial loads. To maximize its life and performance, it should be used in its original state, without any hardware alterations. Proper installation, operation, and maintenance adhering to specified environmental conditions and regulations is highly recommended. The product is equipped with a flange, available in sizes 140mm or 150mm with a 130mm centering diameter. Essentials like an end-sided centering hole with DS thread on a plain shaft, and a B-side aimed power connector, are integrated. With a maximum speed of 4,500min-1, this motor boasts a winding inductivity of 10.7mH. With the reliance on global freight carriers, its distribution is secured and broad-scaled.
30 Day Warranty
Technical Specifications
