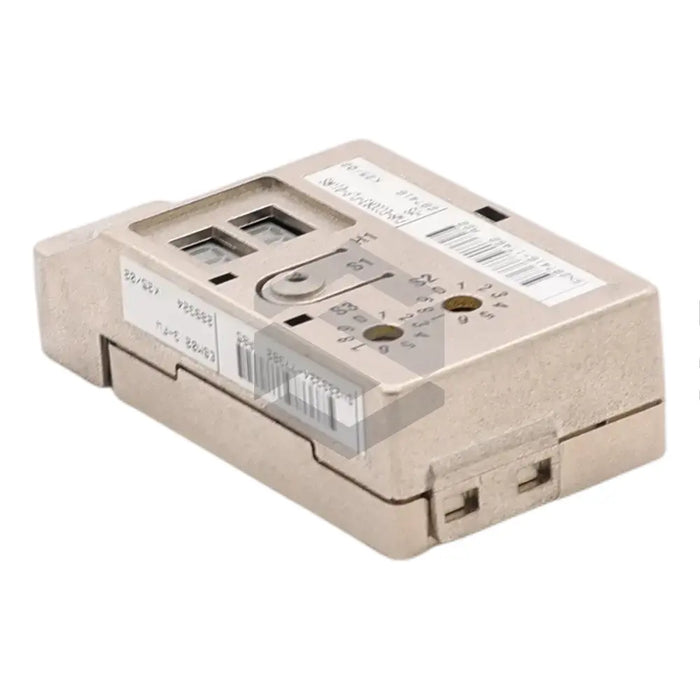

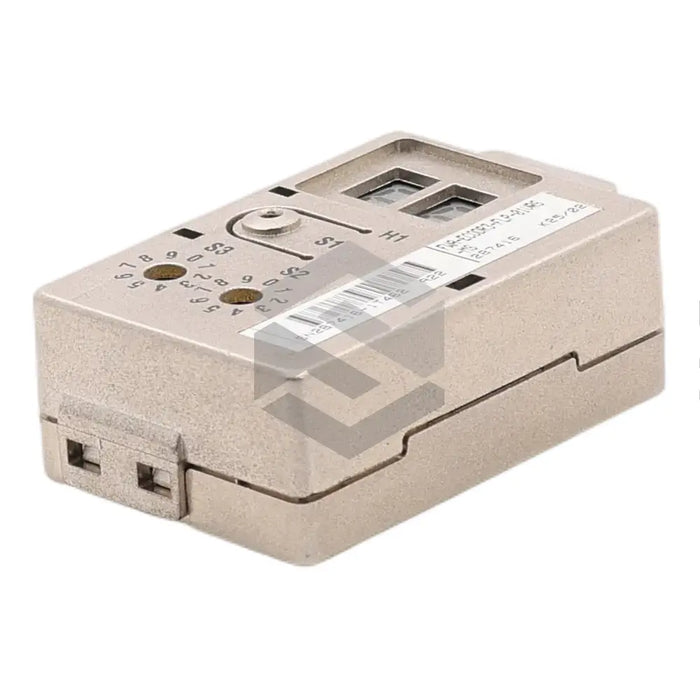

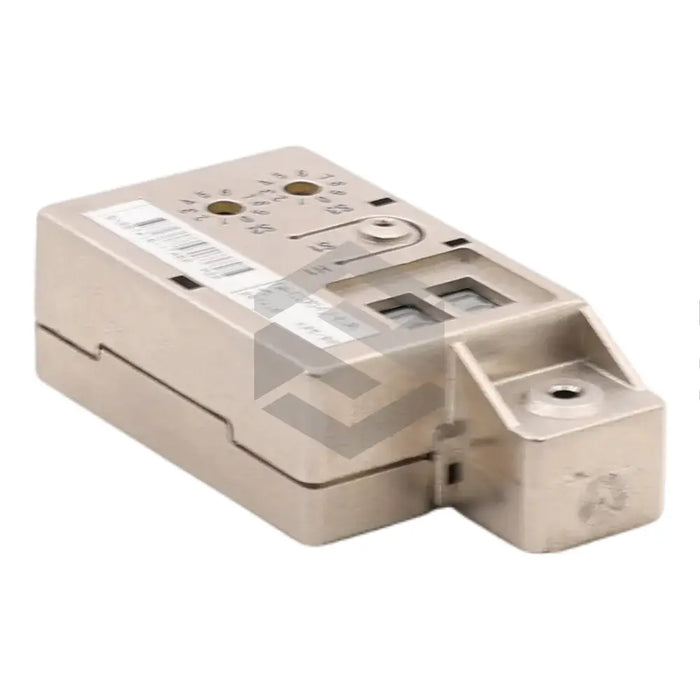

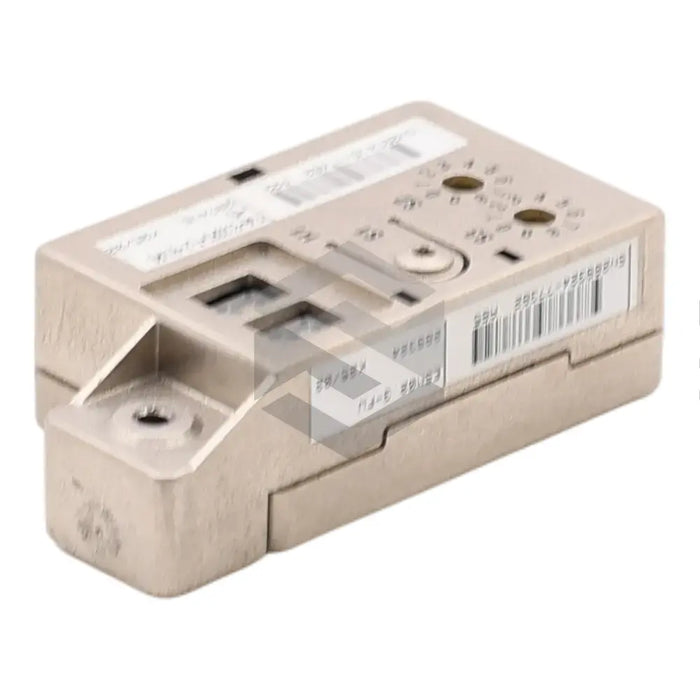

C image of R911287416 | Main (Front Left)

R911287416

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The R911287416 (FWA-ECODR3-FLP-01VRS-MS) is a proprietary firmware designed by Bosch Rexroth Indramat for ECODRIVE03 automation systems. This firmware is engineered specifically for integrating NC control, and Profibus and parallel interfaces in ECODRIVE03 systems. These controllers, available in 40, 100, and 200 Amps peak current ratings, are compatible with synchronous motors possessing maximum torque ratings of up to 48Nm and 64Nm. The FLP series of drive controllers utilize parallel and Profibus-DP interfaces and are compatible with MKD, MKE and MHD motor families. The R911287416 (FWA-ECODR3-FLP-01VRS-MS) firmware supports measuring systems including HSF/LSF and resolver. The firmware incorporates a range of functions including one NC axis, preselection of speed, and varied unit definitions. It supports manual, automatic, and parameter operation modes with system variables, marker flags, subroutine processing, and a 1000-line sequential program. Support is also provided for the RS serial interface which includes protocols for RS-232 and RS-485, programming through ASCII, SIS, and IDS connection. The firmware storage for parameters and user programs is NOVRAM. Additionally, it offers extensive diagnostic options, multiple language support, parameters for travel limitation, evaluation of encoders for position/velocity control, and monitoring systems for velocity and position control loops.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

NC Program Data

System variables, 400 variables, 224 marker flags, subroutines processing, 1000-line sequential program

Manufacturer

Bosch Rexroth Indramat

Supported Measuring Systems

HSF, LSF, Resolver

Product type

Firmware for ECODRIVE03 automation systems

Controller Ratings

40 Amps, 100 Amps, 200 Amps peak current ratings
