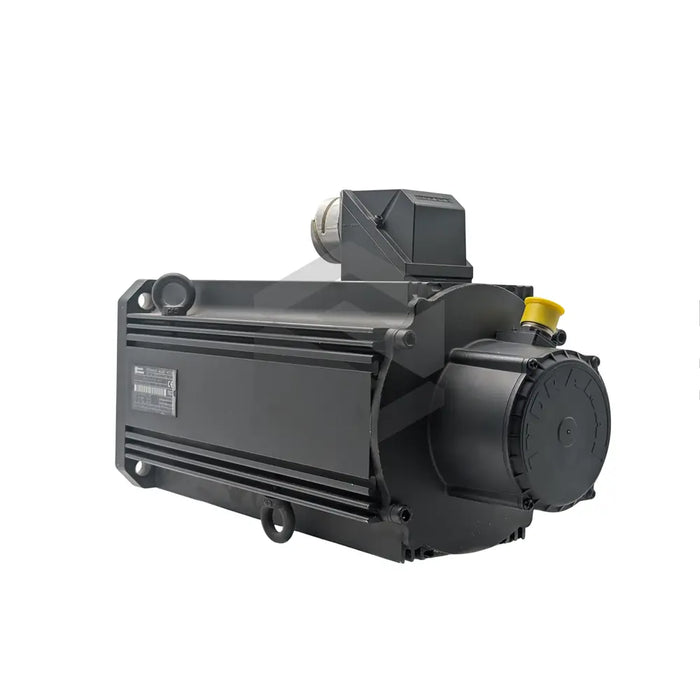

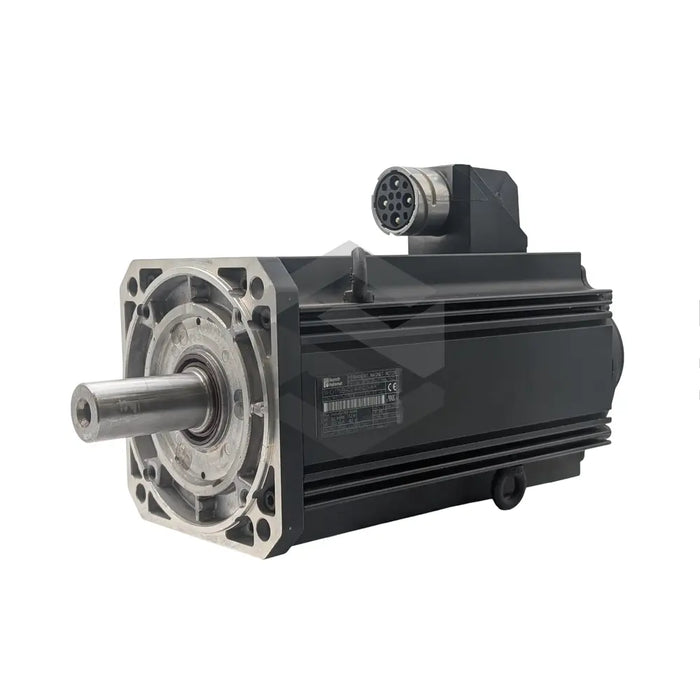

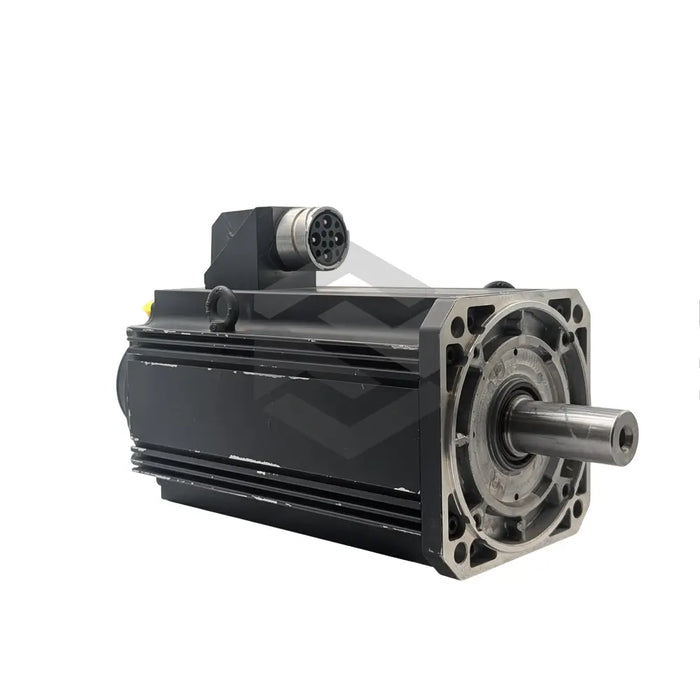

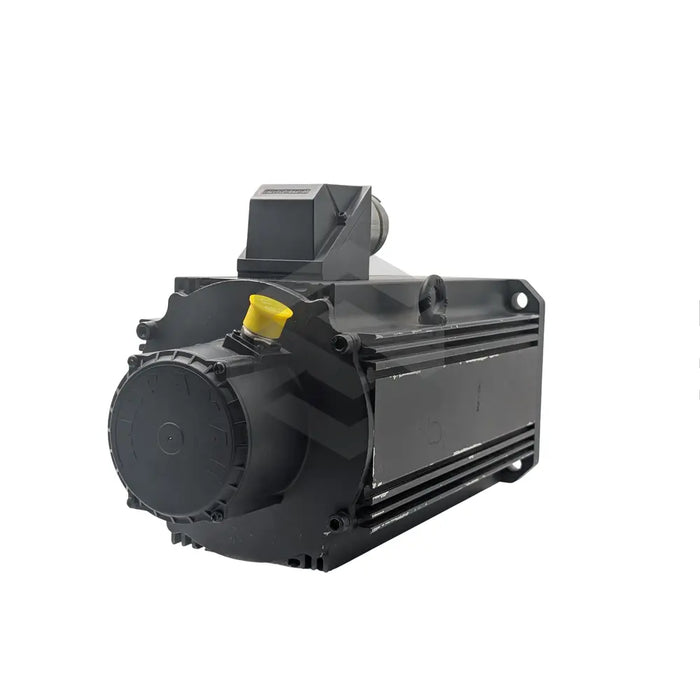

The product, identified as R911287552 (MHD115B-024-PP1-BA), is an industrial synchronous motor designed and produced by Bosch Rexroth Indramat. Renowned for their development of energy-efficient, enduring, and economically viable industrial equipment, Bosch Rexroth offers items including motors, spindle motors, and drive controllers.
Featuring a multi-turn absolute encoder for digital servo feedback, the R911287552 (MHD115B-024-PP1-BA) model also contains a shaft with keyways equipped with a sealing ring for protection against lubricants and dust. Operating in natural cooling mode, it can deliver 50 and 57 Nm of continuous torque at 60 and 100 K temperatures respectively. Surface-cooled thermal time constant is 45 minutes, with a winding resistance of 5.3 ohms and torque constant of 1.7 Nm/A. Notably, the motor can operate in adverse conditions due to the special protective black paint coating. Positioning flexibility allows mounting of this motor in any direction, ensuring the installation height doesn't exceed 1000 meters above sea level. An additional feature of adjustable electrical connections provides installation convenience. It operates optimally between 0 and +40 degrees Celsius. Lastly, the motor includes a power source from the B side electrical connector and offers a housing for temperature management utilizing natural and surface cooling methods. The model R911287552 (MHD115B-024-PP1-BA) has been audited thoroughly pre-delivery to ensure operational reliability and efficiency.
30 Day Warranty
Technical Specifications
