R911287798

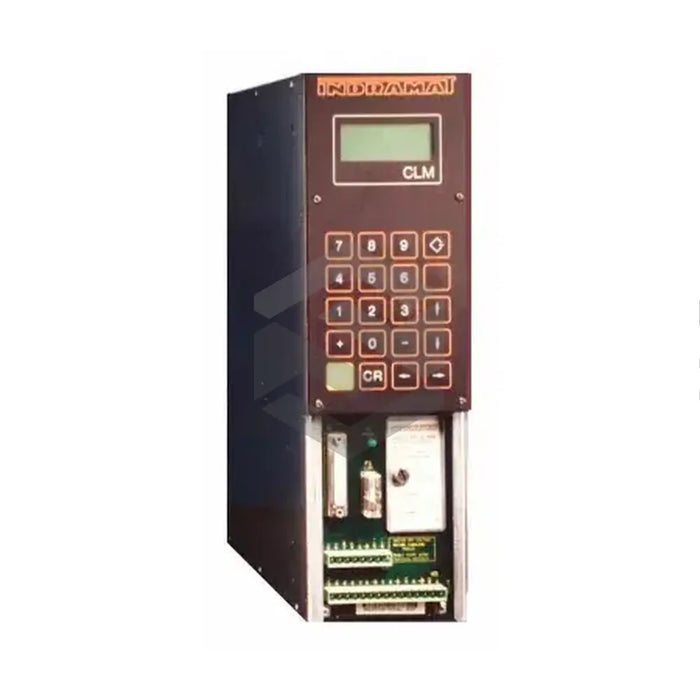

The R911287798 (CLM01.4-N-N-4-B-FW) is a modular control device produced by Bosch Rexroth Indramat. This key component, part of the CLM01.4 series, is designed to function with Bosch Rexroth AC servo drives. Measuring 373 x 105 x 325 millimeters, this unit features an illuminated LCD display on the front panel, paired with a 20-key data entry keypad. It is important to note that firmware for this device is ordered separately and doesn't include additional interface add-ons or expansion. This system specializes in 4-axis control and offers several operating modes: parameter input, manual, and automatic. Program data can include up to 1000 instructions, 3 NC tasks, and unlimited subprograms. It also has 16 unchanging inputs and outputs.
The R911287798 (CLM01.4-N-N-4-B-FW) control interface offers analog inputs and outputs with high resolution. Additionally, its communication structure includes a RS-232/RS-485 compatible serial interface supporting selectable baud rate and transmission format, ideal for connectivity with a programming PC or operator panels. Power requirements for this device begin at 24V, with varying current needs dependent on the installed encoder and accessories. The base current demand sits at 450 milliamps. Installation and maintenance should be carried out by trained professionals, and only Bosch recommended accessories should be used in tandem with this modular control system.
30 Day Warranty
Technical Specifications
