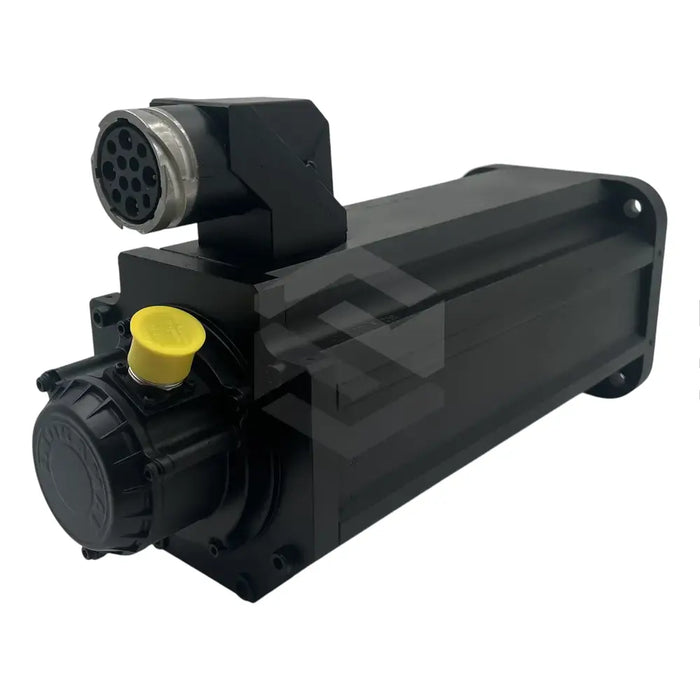

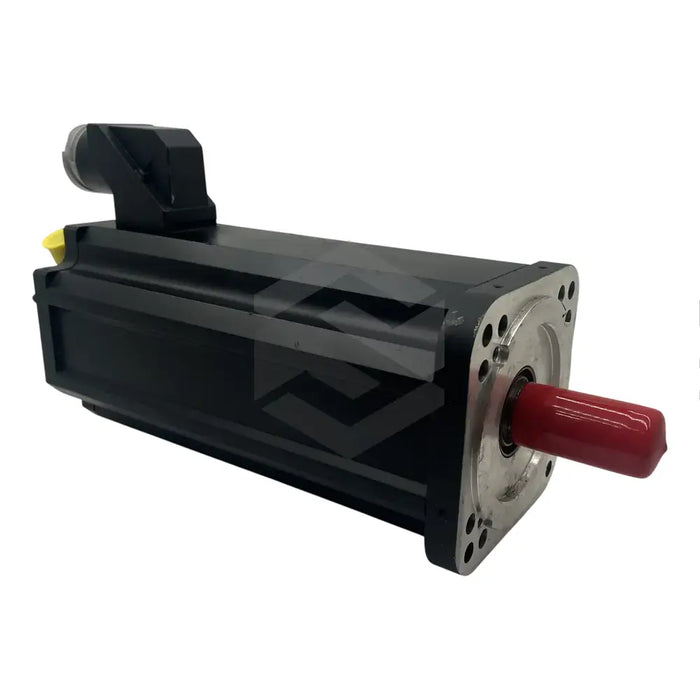

The R911287934 (MHD093C-035-PP0-BA) is a high-performance servo motor, engineered by the renowned Bosch Rexroth Indramat, as part of its prominent MHD093 series. This product is known for its versatility in application, suited for tasks ranging from machine tools operations to paper-processing machines. Distinguished by its full sealing and IP 65 rated design, this motor can be effectively monitored and controlled by connecting it to peripheral actuators and sensors.
This part has a flange size of 140-150 mm, a 130 mm centering diameter, and runs on an AC power supply, courtesy of its electronic commutation. As a brushless and permanent magnet motor, the R911287934 (MHD093C-035-PP0-BA) encompasses onboard electronics simplifying its startup process with the encoder unit's data memory. Its 'C' frame length indicates a continuous torque rating of 23 Nm. The R911287934 (MHD093C-035-PP0-BA) includes cable sets of various designs, facilitating easy cabling. The motor stands out with its efficient heat dissipation mechanism, offering high overload capacity, and its exceptional torque to inertia ratio, ensuing superior dynamics. This highly adaptable motor can be conveniently installed in any position or orientation.
