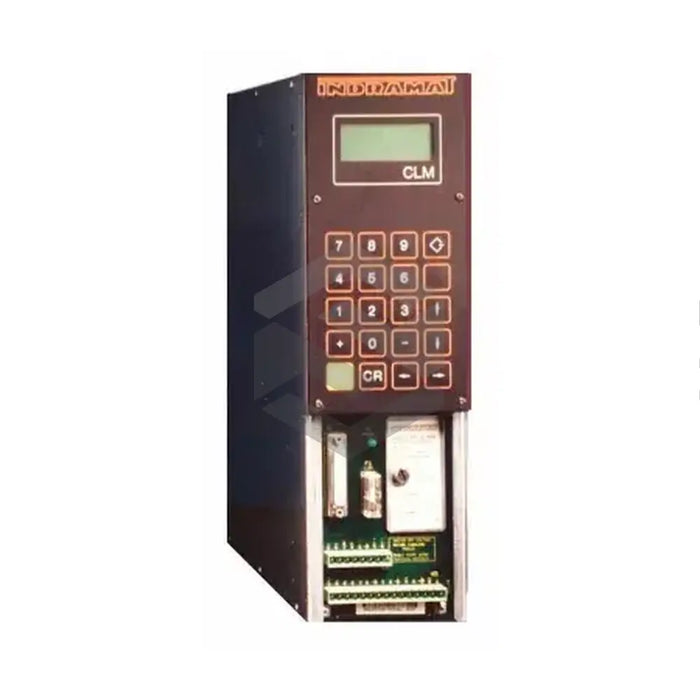

The R911288342 (CLM01.4-N-E-2-B-FW) is an advanced axis positioning control module designed and manufactured by Bosch Rexroth Indramat. Designed with Profibus and containing four axes, this module comes equipped with the finest features. It belongs to line 1 and design 4 and has display design B and an input/output expansion E. The modular and compact form of this model from the CLM series allows it to perfectly blend with maintenance-free Rexroth Indramat servo drives. It can be used in a variety of machines and systems including roll-feed systems, thermoforming machinery, robotics and even wood-processing machinery.
The R911288342 (CLM01.4-N-E-2-B-FW)'s innovative Control Terminal Adapter (CTA) includes an LCD display that features four lines of 16 characters each. The pressure-sensitive keypad is designed for efficient data entry and manipulation. The keypad includes control keys, data entry keys, navigation keys and function keys. The module provides three operating modes: parameter, automatic, and manual. It boasts a parallel interface with 18 permanent system outputs and 24 permanent system inputs, all non-permanent ones being freely programmable. The R911288342 (CLM01.4-N-E-2-B-FW) operates at a supply voltage of +24 V DC; + 20% and its size is designed to complement Rexroth Indramat AC controllers owing to its modular design.
30 Day Warranty
Technical Specifications
