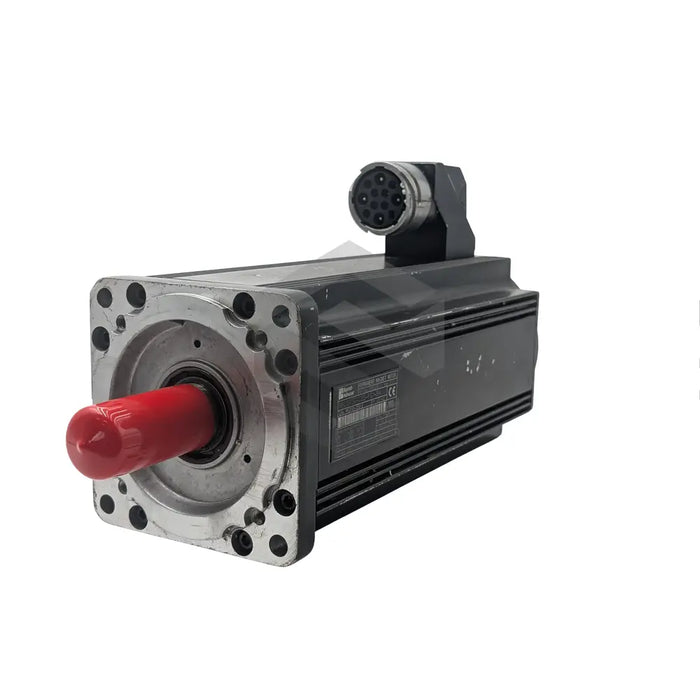

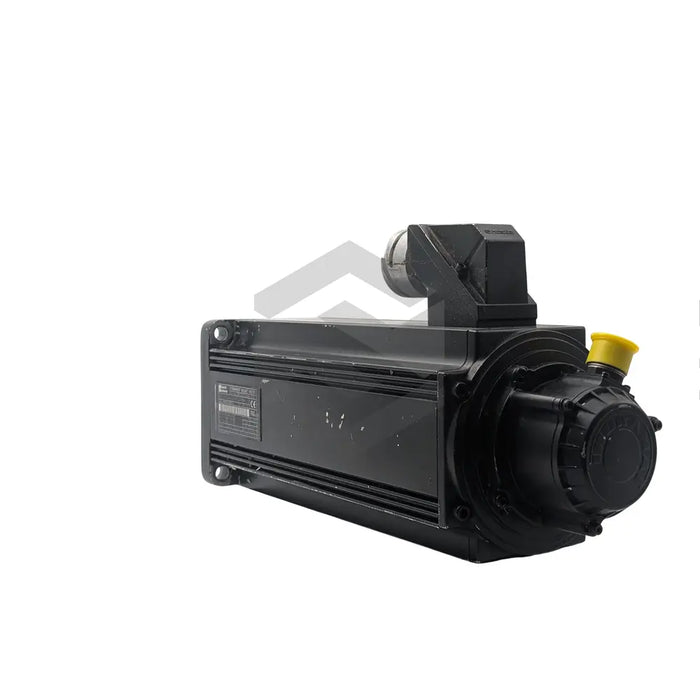

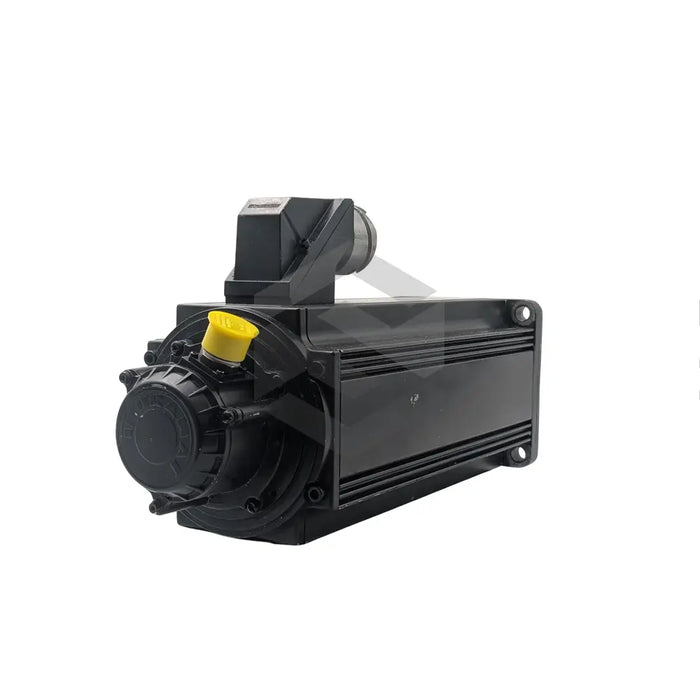

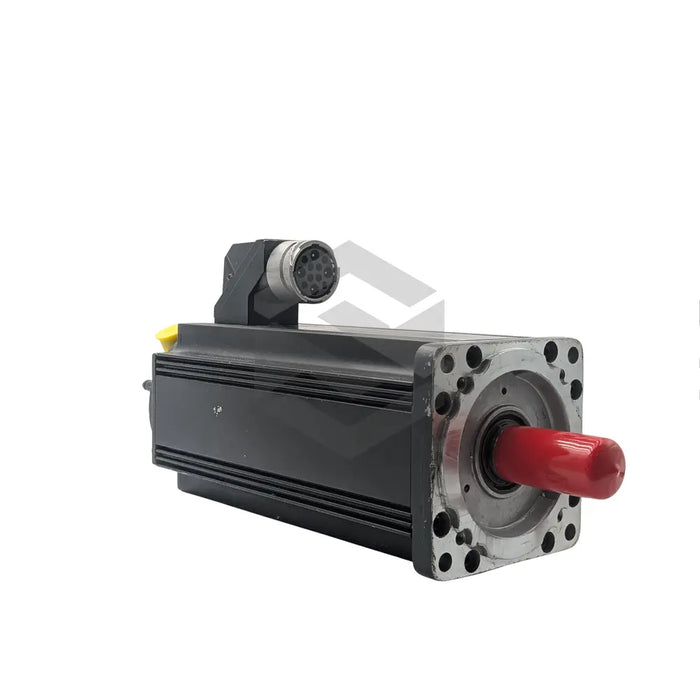

The R911288464 (MHD093C-035-NP1-AA) is an advanced industrial synchronous motor developed by Bosch Rexroth Indramat. It serves as an efficient source of kinetic energy in industrial environments. The motor employs a permanent magnet for operation and stands out for its brushless design, along with a compact housing that ensures seamless integration and effective heat dissipation from the motor. The R911288464 (MHD093C-035-NP1-AA) motor underscores environmentally conscious practices, generating minimal noise and boasting high metal content for easier recycling once its functional lifespan concludes. It comes equipped with a flange for flexible positioning within industrial space.
This industrial synchronous motor operates with a characteristic speed of approximately 3000 RPM and a rated speed close to 2500 RPM. At a motor temperature of 20 degrees Celsius, the motor exhibits a torque constant of 1.39 newtons per meter square and operates with a voltage constant of around 126.4 volts per 1000 revolutions. The motor's winding inductivity maintains at about 0.79 ohms at this temperature. It's important to keep the R911288464 (MHD093C-035-NP1-AA) motor clean to ensure optimal functionality. The motor also features a feedback cable for real-time digital data exchange with the drive controller, has four pole pairs, and weighs approximately 23.5 kilograms in total.
30 Day Warranty
Technical Specifications
